Displays information about the currently pressed key.
Content
Image Gallery
Source Code
10 REM Keyboard scanning
11 REM function
12 REM
20 REM lower RAMTOP
21 REM
30 RESTORE : LET x=(PEEK 23730+256*PEEK 23731)-26: CLEAR x
40 REM
41 REM POKE Machine code
42 REM into memory
43 REM
50 LET x=(PEEK 23730+256*PEEK 23731)+1
60 FOR y=x TO x+24: READ z: POKE y,z: NEXT y
70 REM
71 REM Print USR address
72 REM

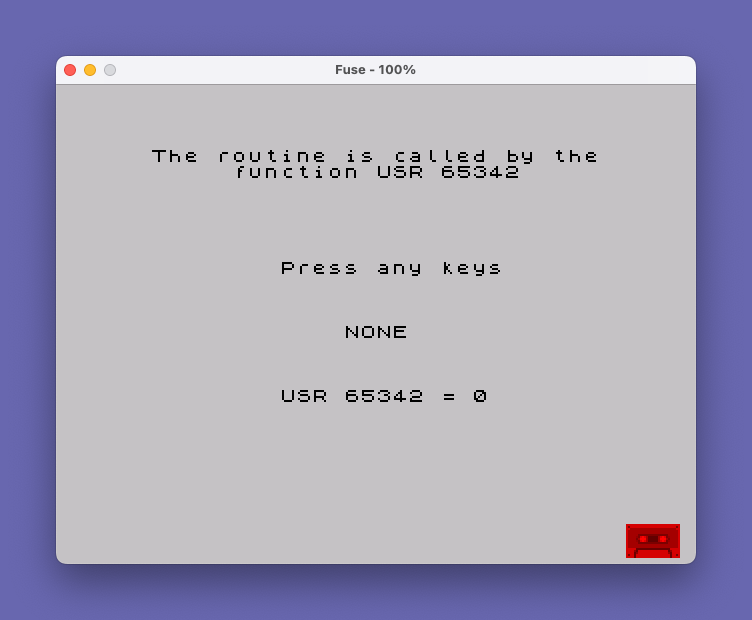

80 PRINT AT 1,2;"The routine is called by the";TAB 7;"function USR ";x
90 REM
91 REM Example
92 REM
100 PRINT AT 8,10;"Press any keys"
110 PRINT AT 12,14;: LET a=USR x
120 IF a=0 THEN PRINT "NONE "
130 IF a=1 THEN PRINT "LEFT "
140 IF a=2 THEN PRINT "RIGHT"
150 IF a=3 THEN PRINT "BOTH "
160 PRINT AT 16,10;"USR ";x;" = ";a
170 GO TO 110
180 REM
181 REM Machine code data
182 REM
190 DATA 1,0,0,62,240,219,254,47
200 DATA 230,31,40,2,203,193,62,15
210 DATA 219,254,47,230,31,200,203,201,201
