Labyrinth 2

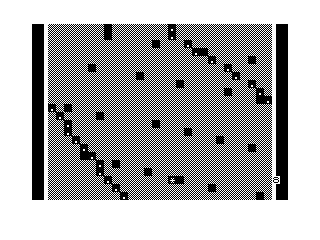

This program implements a scrolling maze/labyrinth game where the player navigates a character horizontally along a corridor filled with obstacles. Line 1 contains a REM statement housing machine code: a LDIR-based routine that shifts screen memory, providing smooth vertical scrolling of the playfield. The player position is tracked via a direct PEEK of screen memory at address A, with INKEY$ “0” and “1” used for left/right movement. Obstacles (block graphic characters) are randomly distributed across each new row generated by the GOSUB 200 subroutine, and the score increments each cycle until a collision is detected.

---

Program Structure

The program is organized into a main loop and three subroutines:

1. Initialization (lines 10–20): Calculates the player’s screen address, inputs difficulty C, draws the initial screen, and sets the score counter B to -18 (offsetting the pre-fill rows).
2. Main loop (lines 50–130): Generates a new row string, prints it, calls the machine code scroller, checks for collision, updates player position, then repeats from line 30 (note: line 30 does not exist — this is a bug; see below).
3. Row generator subroutine (lines 200–240): Copies the template string B$ into A$, then randomly places C wall characters and C space characters within it.
4. Screen fill subroutine (lines 300–340): Fills all 22 rows with the border/corridor template B$ at startup.
5. Game over handler (lines 1000–1030): Clears screen, prints final score, pauses, then restarts.

Machine Code Usage

Line 1 is a REM statement containing 18 bytes of Z80 machine code. The routine is called via RAND USR 16514 at line 75 (16514 = address of the first byte after the REM token). Disassembled:

Bytes	Mnemonic	Notes
01 D6 02	LD BC, $02D6	Byte count = 726 (22 rows × 33 bytes)
2A 0C 40	LD HL, ($400C)	Load display file start address
09	ADD HL, BC	HL → one row down from top
54	LD D, H
5D	LD E, L	DE = source (one row down)
01 B5 02	LD BC, $02B5	Byte count = 693 (21 rows × 33)
2A 0C 40	LD HL, ($400C)	HL = destination (top of screen)
09	ADD HL, BC	(unused intermediate — likely HL points to end of copy region)
ED B8	LDDR	Block copy downward (scroll up)
C9	RET

This LDDR-based scroll moves the entire display buffer up by one text row each game cycle, giving smooth vertical scrolling without redrawing the whole screen from BASIC.

Key BASIC Idioms

• LET A=645+PEEK 16396+256*PEEK 16397 — computes a screen address relative to the display file base (system variable at 16396/16397), placing the player 645 bytes (about 19 rows × 33 + offset) into the display.
• LET A=A+(INKEY$="0")-(INKEY$="1") — classic Sinclair idiom using Boolean arithmetic (+1 or -1) to update position in a single expression.
• LET A$(1+F)="%." and LET A$(1+F)="% " — two-character string slice assignment used to place block graphic pairs (wall/space) into the row template.
• Score is initialized to -18 so that it reads 0 only after the 18 pre-scrolled setup rows have passed.

Display Template

The string B$ (line 16) is 33 characters wide. It consists of border characters (\: = ▌ and \ : = ▐ style blocks) at each end, with 28 interior positions filled with \@@ (inverse spaces / solid blocks), forming a solid wall corridor. The row generator (lines 200–240) punches C gaps and C walls randomly into this template to create the navigable maze rows.

Collision Detection

Collision is detected at line 80 by PEEK A: the player’s current screen cell is read directly from display memory. Character code 136 represents an inverse space (solid block — a wall). If the cell is not 136, the game-over subroutine at line 1000 is called. Line 90 then writes 151 (the player character) to that address, and lines 100–104 write wall characters to the three adjacent cells (offsets +32, +33, +34 — i.e., the row below), effectively drawing the player sprite and the approaching wall simultaneously.

Bugs and Anomalies

• LDDR direction: LDDR copies from high to low address. The setup places HL at (base + 693) and DE at (base + 726), but both source and destination adjustments in the machine code warrant careful scrutiny — the exact scroll direction and pixel-row vs. character-row granularity depends on whether the display file is linear (as on the TS2068 in certain modes).
• Score display condition: Line 72 only prints the score when B>0, consistent with the -18 initialization, so the score appears clean from zero.
