TS Toolkit P2.6 is a comprehensive BASIC programming utility for the Timex Sinclair 2068 that provides 26 tools accessible via single-key menu selection. The toolkit loads as a machine code extension residing at address 59696, activated via `RANDOMIZE USR 60000`, and takes advantage of Interrupt Mode 2 (IM2) for background operation — allowing features like Autoline, Trace, and Disable NEW to remain active while the user works in BASIC. Its feature set covers program editing (Copy Lines, Delete Lines, Move Lines, Merge Lines, Line Sort, Renumber), code analysis (Search & List, Locate Token, Trace, List Variables, Display Memory, Hex & Dec converter), source management (REM Create, REM Delete, Alter Program, Compactor, Upper/Lower Case conversion), and asset utilities (UDG Designer, Bytes to DATA, UDGs to DATA). The Uncorrupt option and Disable NEW command provide safeguards against accidental program loss, while the Autoline feature streamlines program entry by automatically incrementing line numbers.
Overview
TS Toolkit P2.6 (version 2.6C) is a machine code utility suite designed to augment the built-in BASIC environment of the Timex Sinclair 2068. It installs itself into high memory and hooks into the system using Interrupt Mode 2 (IM2), enabling several of its features to operate continuously in the background without disrupting normal BASIC operation.
Installation and Activation

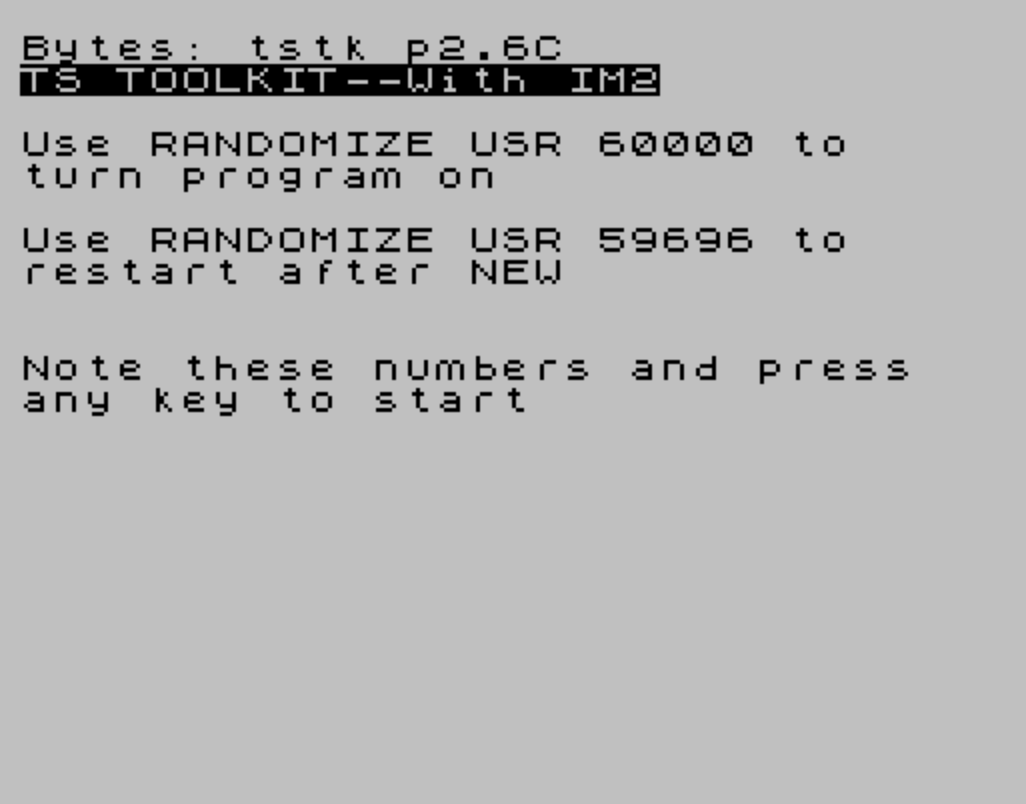

The toolkit loads as a named bytes block (tstk p2.6C) and provides two entry points:
RANDOMIZE USR 60000— initial activation after loadingRANDOMIZE USR 59696— re-entry after issuing aNEWcommand
The IM2 interrupt hook allows features such as Autoline, Trace, and Disable NEW to persist across BASIC operations, since they are serviced during normal interrupt cycles rather than requiring explicit invocation each time.
Full Feature Set (A–Z Menu)
| Key | Function | Category |
|---|---|---|
| A | Alter Program | Editing |
| B | Bytes to DATA | Asset Conversion |
| C | Copy Lines | Editing |
| D | Delete Lines | Editing |
| E | REM Create | Source Management |
| F | REM Delete | Source Management |
| G | UDG Designer | Asset Creation |
| H | Hex & Dec | Utilities |
| I | Information | System Info |
| J | Merge Lines | Editing |
| K | Upper Case | Text Processing |
| L | Lower Case | Text Processing |
| M | Move Lines | Editing |
| N | Autoline On | Entry Aid (IM2) |
| O | Locate Token | Analysis |
| P | Compactor | Optimization |
| Q | Display Memory | Analysis |
| R | Renumber | Editing |
| S | Search & List | Analysis |
| T | Trace On | Debugging (IM2) |
| U | UDGs to DATA | Asset Conversion |
| V | List Variables | Analysis |
| W | Disable NEW | Protection (IM2) |
| X | N/Q/T/W Off | Control |
| Y | Uncorrupt | Recovery |
| Z | Line Sort | Editing |
Notable Technical Features
- IM2 Background Services: Autoline (N), Trace (T), Disable NEW (W), and Display Memory (Q) leverage Interrupt Mode 2 to operate transparently alongside BASIC execution.
- Compactor (P): Removes redundant spaces and optimizes BASIC source to reduce program size and improve execution speed.
- Uncorrupt (Y): Attempts to repair a corrupted BASIC program area, potentially recovering work that would otherwise be lost.
- Disable NEW (W): Intercepts the
NEWcommand via the IM2 hook to prevent accidental erasure of the BASIC program in memory. - UDG Designer (G) and UDGs to DATA (U): Provide an integrated workflow for creating and exporting user-defined graphics directly from the toolkit.
- Bytes to DATA (B): Converts binary memory blocks into BASIC
DATAstatements, useful for embedding machine code routines within BASIC programs. - Line Sort (Z): Sorts BASIC program lines, a feature useful for organizing merged or otherwise disordered source code.
Historical Context
BASIC toolkits of this type were a popular category of utility software for Sinclair-compatible machines throughout the mid-1980s. The TS 2068’s extended memory map and support for IM2 interrupts gave toolkit authors more flexibility than was available on the base Spectrum hardware. Providing 26 distinct tools mapped to the 26 letter keys was a common and ergonomic design choice for menu-driven utilities of this era, minimizing keystrokes while making all functions easy to remember.
Image Gallery
Source Code
;=====================================================================
; TS 2068 TOOLKIT — Bob Mitchell, 1985
; Annotated disassembly of the machine-code block at $E930-$FF57
;=====================================================================
;
; WHAT IT IS
; A menu-driven BASIC programmer's toolkit for the Timex/Sinclair
; 2068. 26 commands (A-Z) covering renumber, move/copy/delete line
; blocks, search & replace, REM creation for machine code, a UDG
; designer, a line sorter, memory/trace displays and a NEW-key lock.
; The author's name appears at $F113 ("BOB MITCHELL 1985") and is
; printed as message 51 on the bottom line of the menu.
;
; LOAD ADDRESS
; ORG $E930. The code runs above RAMTOP, so the host BASIC must
; CLEAR 59695 ($E92F) or lower before loading. Nothing is
; relocatable — every internal reference is absolute.
;
; ENTRY POINTS
; $E930 IM2_INIT build the IM2 vector table, set I. Call once
; after loading (e.g. RANDOMIZE USR 59696).
; $EA60 MAIN the toolkit itself (RANDOMIZE USR 60000).
;
; MEMORY USED OUTSIDE THE CODE BLOCK
; $E800-$E900 257-byte IM2 vector table, every byte = $E9
; $E9E9-$E9EB JP $FEFF (the actual interrupt service routine)
;
;---------------------------------------------------------------------
; A NOTE ON THE ORIGINAL DISASSEMBLY
;---------------------------------------------------------------------
; Roughly half of this program is *inline data* following CALL
; instructions — the routines at $ED8F/$ED92/$ED97 pop their own
; return address and interpret the bytes that follow as a display
; /prompt script. A plain linear disassembler therefore runs off
; the rails at every command handler and mis-types the following
; code as data (and the data as code). Every such block is marked
; below with the pseudo-op DEFB and decoded in comments.
;
;---------------------------------------------------------------------
; THE INLINE SCRIPT LANGUAGE (interpreted by $ED99)
;---------------------------------------------------------------------
; Registers carried through a script: HL = "current value",
; DE = script pointer.
;
; $00 end of script. Print "\r\r EXECUTE? ", read a key;
; "Y" prints "Y\r\r" and execution resumes at the byte
; after the $00; anything else restores SP from
; SAVED_SP and drops back to the main menu.
; $01-$0F printable control character (mainly $0D = newline)
; $10 print "#" then HL as four hex digits
; $11 nn input a string (max 33 chars) into buffer 0 (nn=$00)
; or buffer 1 (nn<>$00)
; $12 nn print string buffer 0 / 1
; $13 input a number into HL. Decimal, or "#hhhh" for hex
; $14 print HL as decimal, leading zeros suppressed
; $15 error 4 "Zero not Allowed" if HL = 0
; $16 error 1 "Range Error" if P_INCR > 100
; $17 error 3 "Invalid Line Number" if P_DEST or P_FINISH
; > 9996
; $18 error 2 "Numbers Reversed" if P_START > P_FINISH
; $19 end of script — resume execution at the next byte,
; with stream 2 (upper screen) selected
; $1A-$1F store HL into parameter slot 0..5
; ($ECCB P_START, $ECCD P_FINISH, $ECCF P_DEST,
; $ECD1 P_INCR, $ECD3 P_WORK1, $ECD5 P_WORK2)
; $20-$7E printable ASCII
; $7F print " ©" (only when the channel is 'S' or 'P')
; $80-$BF print " " + MSGTAB message (b AND $3F) + ": "
; $C0-$FF print " " + MSGTAB message (b AND $3F)
;
;---------------------------------------------------------------------
; MSGTAB word list (base $EFFA, index = byte AND $3F)
;---------------------------------------------------------------------
; 0 ADDRESS 1 START 2 FINISH 3 1st
; 4 UNAFFECTED 5 DESTINATION 6 INCREMENT 7 LINE
; 8 NUMBER 9 DELETE 10 MOVE 11 COPY
; 12 RENUMBER 13 BLOCK 14 OF 15 PROGRAM
; 16 MACHINE 17 CODE 18 UDGs 19 TO
; 20 DATA 21 SEARCH 22 LIST 23 REPLACE
; 24 OLD 25 NEW 26 STRING 27 REM
; 28 UPPER 29 lower 30 CASE 31 DEC
; 32 HEX 33 MERGE 34 ? (0=no) 35 CREATE
; 36 SYMBOL 37 BYTES 38 PER 39 bytes
; 40 STATUS 41 REPORT 42 MEMORY 43 LEFT
; 44 LENGTH 45 VARIABLE 46 FILE 47 USER RAM
; 48 INTERRUPTS 49 NORMAL 50 DIVERTED 51 BOB MITCHELL 1985
; 52 DESIGN 53 CHARACTER 54 USE 55 COMPACT
; 56 COLUMN 57 I/O (on/off) 58 IN QUOTES? (Y/N)
; 59 AUTO 60 ABCDEFGH 61 RESTART 62 <CR><CR>
; 63 (c)
;
; Note: the ROM's PUTMES skips one terminator before message 0, so
; the byte AT the table base ($EFFA = $8D) is a dummy terminator and
; message 0 is the first string after it. Verified two ways: $EFEB
; +0 gives " EXECUTE? " and $F17B/$F17E give "HEX"/"DEC"+"IMAL".
;
;---------------------------------------------------------------------
; ROM ENTRY POINTS USED (all verified against the TS2068 HOME ROM)
;---------------------------------------------------------------------
PARP EQU $03F3 ; tone. DE = cycles-1, HL = period
PUTMES EQU $073F ; print message A from table at DE
K_CLS EQU $08A6 ; clear screen
CLLHS EQU $08A9 ; clear/attr left-hand side
EDIT_K EQU $0A82 ; the line editor
DELSYM EQU $0B7E ; delete the single byte at (HL)
PUTDIG EQU $11EA ; send decimal digit A to current channel
SELECT EQU $1230 ; select stream A
SEL_HL EQU $1248 ; select the channel whose address is in HL
INSERT EQU $12BB ; make BC bytes of room at (HL)
X_CALC EQU $134E ; STKBOT = WORKSP, reset fp stack
PUT_SR EQU $15A1 ; ">" / current-line marker
OUTNUM EQU $1676 ; decimal digit of HL, BC = -power of ten
SKIPNUM EQU $1602 ; if A = $0E skip the 5-byte number, reload A
FIND_L EQU $16D6 ; find line >= HL; DE = previous line
RECLEN EQU $1720 ; DE = next record, BC = length
DEL_DE EQU $174D ; delete the bytes between HL and DE
DELREC EQU $1750 ; delete BC bytes at (HL)
PUT_BC EQU $1788 ; print BC as a decimal line number
CHK_SZ EQU $1FBB ; error 4 unless BC bytes are free below RAMTOP
PAUSE EQU $1FF2 ; HALT / decrement BC / test KEYHIT
PO_STR EQU $21DB ; print BC characters from (DE)
ALPHAQ EQU $304B ; CY set if A is a letter
STKUSN EQU $3059 ; stack the number at CH_ADD
DIGITQ EQU $30D9 ; NC if A is '0'-'9'
MULT EQU $3468 ; HL = HL * DE
;
; System variables (identical to the ZX Spectrum in this range)
LASTK EQU $5C08
FLAGS EQU $5C3B
TVFLAG EQU $5C3C
PPC EQU $5C45
EPPC EQU $5C49
VARS EQU $5C4B
CURCHL EQU $5C51
PROG EQU $5C53
ELINE EQU $5C59
KCUR EQU $5C5B
CH_ADD EQU $5C5D
WORKSP EQU $5C61
STKBOT EQU $5C63
STKEND EQU $5C65
FLAGX EQU $5C71
UDG EQU $5C7B
ECHOE EQU $5C82
SCRCT EQU $5C8C
RAMTOP EQU $5CB2
ORG $E930
;=====================================================================
; IM2_INIT ($E930)
; Build the interrupt-mode-2 vector table and point I at it.
; Does NOT enable IM2 — commands N/Q/T/W do that via SET_IM2.
;=====================================================================
IM2_INIT:
$E930 C5 PUSH BC
$E931 D5 PUSH DE
$E932 E5 PUSH HL
$E933 F5 PUSH AF
$E934 21 00 E8 LD HL,$E800 ; vector table base (I = $E8)
$E937 06 00 LD B,$00 ; 256 iterations
IM2_FILL:
$E939 36 E9 LD (HL),$E9 ; every entry byte = $E9 ...
$E93B 23 INC HL
$E93C 10 FB DJNZ IM2_FILL
$E93E 36 E9 LD (HL),$E9 ; ... plus the 257th byte at $E900
; so any data-bus value yields $E9E9
$E940 3E C3 LD A,$C3 ; plant JP $FEFF at $E9E9
$E942 32 E9 E9 LD ($E9E9),A
$E945 21 FF FE LD HL,$FEFF ; = ISR
$E948 22 EA E9 LD ($E9EA),HL
$E94B 3E E8 LD A,$E8
$E94D ED 47 LD I,A
$E94F F1 POP AF
$E950 E1 POP HL
$E951 D1 POP DE
$E952 C1 POP BC
$E953 C9 RET
;---------------------------------------------------------------------
; $E954-$E9E8 149 spare bytes (all $00)
;---------------------------------------------------------------------
$E954 DEFS 149,$00
;---------------------------------------------------------------------
; $E9E9 the IM2 vector target itself. Written by IM2_INIT, but the
; loaded image already contains the finished instruction.
;---------------------------------------------------------------------
$E9E9 C3 FF FE JP ISR
;---------------------------------------------------------------------
; $E9EC-$EA5F 116 spare bytes (all $00)
;---------------------------------------------------------------------
$E9EC DEFS 116,$00
;=====================================================================
; MAIN ($EA60) — the menu
; Stacks its own address so every command RETurns here, and records SP
; so an aborted command can unwind (see EF67/ABORT).
;=====================================================================
MAIN:
$EA60 21 60 EA LD HL,MAIN
$EA63 E5 PUSH HL ; command handlers RET to MAIN
$EA64 ED 73 C9 EC LD (SAVED_SP),SP ; unwind point for "not Y" / errors
$EA68 21 46 EF LD HL,$EF46 ; HL -> "CALL REPORT / DEFB 0"
; ("Task Complete" trampoline, used
; as the value seed for scripts)
$EA6B E5 PUSH HL
$EA6C CD 8F ED CALL SCRIPT_CLS ; clear screen, run the script below
;---------------------------------------------------------------------

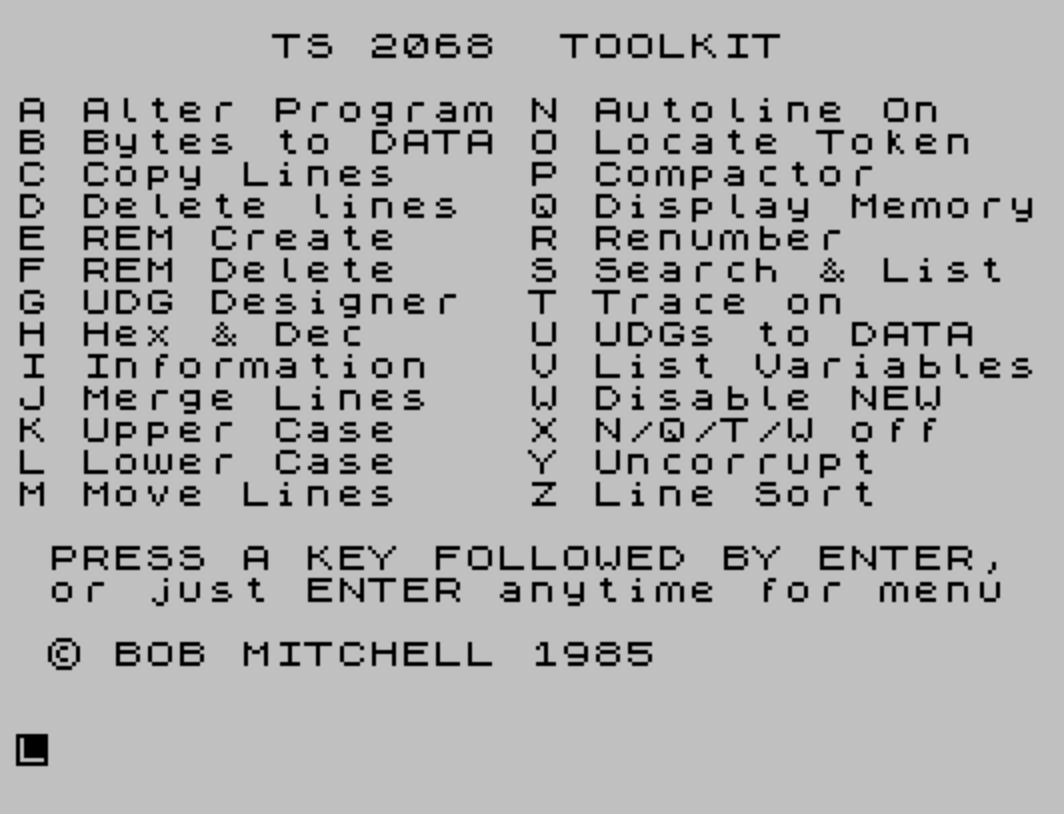

; Inline script: the menu page. 16 rows of two 16-column halves.
;---------------------------------------------------------------------
$EA6F DEFB $0D
$EA70 DEFM " TS 2068 TOOLKIT"
$EA88 DEFB $0D,$0D
$EA8A DEFM "A Alter Program N Autoline On "
$EAAA DEFM "B Bytes to DATA O Locate Token "
$EACA DEFM "C Copy Lines P Compactor "
$EAEA DEFM "D Delete lines Q Display Memory"
$EB0A DEFM "E REM Create R Renumber "
$EB2A DEFM "F REM Delete S Search & List "
$EB4A DEFM "G UDG Designer T Trace on "
$EB6A DEFM "H Hex & Dec U UDGs to DATA "
$EB8A DEFM "I Information V List Variables"
$EBAA DEFM "J Merge Lines W Disable NEW "
$EBCA DEFM "K Upper Case X N/Q/T/W off "
$EBEA DEFM "L Lower Case Y Uncorrupt "
$EC0A DEFM "M Move Lines Z Line Sort "
$EC2A DEFB $0D,$0D
$EC2C DEFM " PRESS A KEY FOLLOWED BY ENTER,"
$EC4B DEFB $0D
$EC4C DEFM " or just ENTER anytime for menu"
$EC6B DEFB $FE ; MSG 62 = <CR><CR>
$EC6C DEFB $7F ; " ©"
$EC6D DEFB $F3 ; MSG 51 = "BOB MITCHELL 1985"
$EC6E DEFB $0D
$EC6F DEFB $19 ; end of script; resume below on stream 2
;---------------------------------------------------------------------
; Read the command letter and vector through CMDTAB.
;---------------------------------------------------------------------
GETCMD:
$EC70 01 02 00 LD BC,$0002 ; accept up to 2 characters
$EC73 CD F7 EE CALL INPUT ; A = first char (ENTER alone aborts)
$EC76 CD 4B 30 CALL ALPHAQ
$EC79 30 F5 JR NC,GETCMD ; not a letter — ask again
$EC7B E6 DF AND $DF ; force upper case
$EC7D D6 41 SUB 'A'
$EC7F 87 ADD A,A ; *2
$EC80 21 1D ED LD HL,CMDTAB
$EC83 5F LD E,A
$EC84 16 00 LD D,$00
$EC86 19 ADD HL,DE
$EC87 5E LD E,(HL)
$EC88 23 INC HL
$EC89 56 LD D,(HL)
$EC8A D5 PUSH DE
$EC8B C9 RET ; jump to the handler
; (which RETs to MAIN)
;=====================================================================
; PRHEX4 ($EC8C) print "#" followed by HL in hex
;=====================================================================
PRHEX4:
$EC8C 3E 23 LD A,'#'
$EC8E D7 RST $10
$EC8F 7C LD A,H
$EC90 CD 9E EC CALL PRHIGH
$EC93 7C LD A,H
$EC94 CD A2 EC CALL PRLOW
$EC97 7D LD A,L
$EC98 CD 9E EC CALL PRHIGH
$EC9B 7D LD A,L
$EC9C 18 04 JR PRLOW
PRHIGH:
$EC9E 1F RRA ; high nibble -> low
$EC9F 1F RRA
$ECA0 1F RRA
$ECA1 1F RRA
PRLOW:
$ECA2 E6 0F AND $0F
$ECA4 FE 0A CP $0A
$ECA6 38 02 JR C,PRNIB
$ECA8 C6 07 ADD A,$07 ; 'A'-'F'
PRNIB:
$ECAA C3 EA 11 JP PUTDIG ; adds $30 and prints
;=====================================================================
; PRDEC ($ECAD) print HL as decimal, leading zeros suppressed
; E = $FF is the ROM's "still suppressing" flag for OUTNUM.
;=====================================================================
PRDEC:
$ECAD 1E FF LD E,$FF
$ECAF 01 F0 D8 LD BC,-10000
$ECB2 CD 76 16 CALL OUTNUM
$ECB5 01 18 FC LD BC,-1000
$ECB8 CD 76 16 CALL OUTNUM
$ECBB 01 9C FF LD BC,-100
$ECBE CD 76 16 CALL OUTNUM
$ECC1 0E F6 LD C,$F6 ; BC = -10 (B is still $FF)
$ECC3 CD 76 16 CALL OUTNUM
$ECC6 7D LD A,L ; units
$ECC7 18 E1 JR PRNIB
;=====================================================================
; WORKSPACE ($ECC9-$ED1C)
; The values below are whatever the last session left behind; they are
; the program's only mutable storage.
;=====================================================================
SAVED_SP: $ECC9 DEFW $61E2 ; SP on entry to MAIN — unwind target
P_START: $ECCB DEFW $0001 ; script slot $1A
P_FINISH: $ECCD DEFW $0FA0 ; script slot $1B
P_DEST: $ECCF DEFW $0FA0 ; script slot $1C
P_INCR: $ECD1 DEFW $000A ; script slot $1D
P_WORK1: $ECD3 DEFW $7747 ; script slot $1E
P_WORK2: $ECD5 DEFW $0006 ; script slot $1F
STR0_LEN: $ECD7 DEFW $0001 ; string buffer 0 (script codes $11/$12 nn=0)
STR0: $ECD9 DEFB $4E,$00,$38,$30 ; "N" + stale bytes from last run
$ECDD DEFS 29,$00 ; STR0 is 33 bytes: $ECD9-$ECF9
STR1_LEN: $ECFA DEFW $0000 ; string buffer 1 (script codes $11/$12 nn<>0)
STR1: $ECFC DEFS 33,$00 ; $ECFC-$ED1C, ends exactly at CMDTAB
;=====================================================================
; CMDTAB ($ED1D) 26 handler addresses, indexed by (letter-'A')*2
;=====================================================================
CMDTAB:
$ED1D AD F1 DEFW $F1AD ; A Alter Program (search & replace)
$ED1F EE F6 DEFW $F6EE ; B Bytes to DATA
$ED21 9A F5 DEFW $F59A ; C Copy Lines
$ED23 10 F6 DEFW $F610 ; D Delete lines
$ED25 3F F6 DEFW $F63F ; E REM Create
$ED27 EF F9 DEFW $F9EF ; F REM Delete
$ED29 81 FA DEFW $FA81 ; G UDG Designer
$ED2B 77 F1 DEFW $F177 ; H Hex & Dec
$ED2D 25 F8 DEFW $F825 ; I Information
$ED2F A4 FC DEFW $FCA4 ; J Merge Lines
$ED31 F7 FC DEFW $FCF7 ; K Upper Case
$ED33 03 FD DEFW $FD03 ; L Lower Case
$ED35 24 F3 DEFW $F324 ; M Move Lines
$ED37 74 FD DEFW $FD74 ; N Autoline On
$ED39 91 FE DEFW $FE91 ; O Locate Token
$ED3B 3C FC DEFW $FC3C ; P Compactor
$ED3D EB FD DEFW $FDEB ; Q Display Memory
$ED3F 5C F3 DEFW $F35C ; R Renumber
$ED41 85 F9 DEFW $F985 ; S Search & List
$ED43 F7 FD DEFW $FDF7 ; T Trace on
$ED45 B0 F6 DEFW $F6B0 ; U UDGs to DATA
$ED47 DE F8 DEFW $F8DE ; V List Variables
$ED49 3E FF DEFW $FF3E ; W Disable NEW
$ED4B 35 FF DEFW $FF35 ; X N/Q/T/W off
$ED4D 52 F4 DEFW $F452 ; Y Uncorrupt (= rebuild line lengths)
$ED4F 19 F5 DEFW $F519 ; Z Line Sort
;=====================================================================
; PRCHAR ($ED51) print one script byte
; < $7F straight to the print routine
; = $7F " ©" — but only on a screen ('S') or printer ('P') channel
; > $7F " " + MSGTAB[A AND $3F], plus ": " when bit 6 is clear
;=====================================================================
PRCHAR:
$ED51 FE 7F CP $7F
$ED53 28 04 JR Z,PRCOPY
$ED55 30 1A JR NC,PRMSG
$ED57 D7 RST $10
$ED58 C9 RET
PRCOPY:
$ED59 4F LD C,A
$ED5A 2A 51 5C LD HL,(CURCHL)
$ED5D 23 INC HL ; +4 = the channel's letter
$ED5E 23 INC HL
$ED5F 23 INC HL
$ED60 23 INC HL
$ED61 7E LD A,(HL)
$ED62 FE 53 CP 'S'
$ED64 28 05 JR Z,PRCOPY2
$ED66 FE 50 CP 'P'
$ED68 79 LD A,C
$ED69 20 07 JR NZ,PRMSG2 ; other channel: treat $7F as a message
PRCOPY2:
$ED6B 3E 20 LD A,' '
$ED6D D7 RST $10
$ED6E 79 LD A,C
$ED6F D7 RST $10 ; the (c) symbol
$ED70 C9 RET
PRMSG:
$ED71 4F LD C,A
PRMSG2:
$ED72 E6 3F AND $3F ; message number
$ED74 47 LD B,A
$ED75 C5 PUSH BC
$ED76 3E 20 LD A,' '
$ED78 D7 RST $10
$ED79 78 LD A,B
$ED7A 11 FA EF LD DE,MSGTAB
$ED7D FD CB 01 C6 SET 0,(IY+$01) ; FLAGS bit 0 - leading space handling
$ED81 CD 3F 07 CALL PUTMES
$ED84 C1 POP BC
$ED85 CB 71 BIT 6,C
$ED87 C0 RET NZ ; $C0-$FF: no colon
$ED88 3E 3A LD A,':'
$ED8A D7 RST $10
$ED8B 3E 20 LD A,' '
$ED8D D7 RST $10
$ED8E C9 RET
;=====================================================================
; THE SCRIPT ENGINE
; SCRIPT_CLS ($ED8F) clear screen, select stream $FE, run script
; SCRIPT_FE ($ED92) select stream $FE, run script
; SCRIPT ($ED97) run the script that follows the CALL
; None of these return to the instruction after the CALL: the return
; address IS the script, and control resumes at the $19 / $00 byte.
;=====================================================================
SCRIPT_CLS:
$ED8F CD A6 08 CALL K_CLS
SCRIPT_FE:
$ED92 3E FE LD A,$FE ; stream $FE = whole screen, no scroll
$ED94 CD 30 12 CALL SELECT
SCRIPT:
$ED97 D1 POP DE ; DE = address of the script bytes
$ED98 1B DEC DE
SCR_LOOP:
$ED99 13 INC DE
$ED9A 1A LD A,(DE)
$ED9B A7 AND A
$ED9C CA 34 EE JP Z,SCR_END ; $00 - "EXECUTE?"
$ED9F FE 20 CP $20
$EDA1 30 43 JR NC,SCR_PRINT ; >= $20 - printable / message
$EDA3 FE 10 CP $10
$EDA5 38 3F JR C,SCR_PRINT ; $01-$0F - control character
$EDA7 28 2E JR Z,SCR_HEX ; $10
$EDA9 FE 11 CP $11
$EDAB 28 52 JR Z,SCR_INSTR ; $11
$EDAD FE 12 CP $12
$EDAF 28 63 JR Z,SCR_OUTSTR ; $12
$EDB1 FE 13 CP $13
$EDB3 28 3A JR Z,SCR_INNUM ; $13
$EDB5 FE 14 CP $14
$EDB7 28 3D JR Z,SCR_OUTNUM ; $14
$EDB9 FE 15 CP $15
$EDBB 28 21 JR Z,SCR_NZ ; $15
$EDBD FE 19 CP $19
$EDBF CA 57 EE JP Z,SCR_RESUME ; $19
$EDC2 38 67 JR C,SCR_CHECK ; $16/$17/$18 - validators
; $1A-$1F: store HL into parameter slot A-$1A
$EDC4 D6 1A SUB $1A
$EDC6 87 ADD A,A
$EDC7 4F LD C,A
$EDC8 06 00 LD B,$00
$EDCA D5 PUSH DE ; save the script pointer
$EDCB EB EX DE,HL ; DE = value
$EDCC 21 CB EC LD HL,P_START
$EDCF 09 ADD HL,BC
$EDD0 73 LD (HL),E
$EDD1 23 INC HL
$EDD2 72 LD (HL),D
$EDD3 EB EX DE,HL ; HL = value again
$EDD4 D1 POP DE
$EDD5 18 C2 JR SCR_LOOP
SCR_HEX:
$EDD7 D5 PUSH DE
$EDD8 CD 8C EC CALL PRHEX4
$EDDB D1 POP DE
$EDDC 18 BB JR SCR_LOOP
SCR_NZ:
$EDDE 7C LD A,H
$EDDF B5 OR L
$EDE0 20 B7 JR NZ,SCR_LOOP
$EDE2 CD 4A EF CALL REPORT
$EDE5 04 DEFB 4 ; "Zero not Allowed"
SCR_PRINT:
$EDE6 D5 PUSH DE
$EDE7 E5 PUSH HL
$EDE8 CD 51 ED CALL PRCHAR
$EDEB E1 POP HL
$EDEC D1 POP DE
$EDED 18 AA JR SCR_LOOP
SCR_INNUM:
$EDEF D5 PUSH DE
$EDF0 CD A9 EE CALL INNUM
$EDF3 D1 POP DE
$EDF4 18 A3 JR SCR_LOOP
SCR_OUTNUM:
$EDF6 D5 PUSH DE
$EDF7 E5 PUSH HL
$EDF8 CD AD EC CALL PRDEC
$EDFB E1 POP HL
$EDFC D1 POP DE
$EDFD 18 9A JR SCR_LOOP
SCR_INSTR:
$EDFF 13 INC DE ; operand byte selects the buffer
$EE00 1A LD A,(DE)
$EE01 D5 PUSH DE
$EE02 A7 AND A
$EE03 21 D7 EC LD HL,STR0_LEN
$EE06 28 03 JR Z,SCR_IS2
$EE08 21 FA EC LD HL,STR1_LEN
SCR_IS2:
$EE0B 01 21 00 LD BC,$0021 ; 33 characters maximum
$EE0E CD 9A EE CALL INSTR
$EE11 D1 POP DE
SCR_BACK:
$EE12 18 85 JR SCR_LOOP
SCR_OUTSTR:
$EE14 13 INC DE
$EE15 1A LD A,(DE)
$EE16 D5 PUSH DE
$EE17 A7 AND A
$EE18 21 D7 EC LD HL,STR0_LEN
$EE1B 28 03 JR Z,SCR_OS2
$EE1D 21 FA EC LD HL,STR1_LEN
SCR_OS2:
$EE20 4E LD C,(HL)
$EE21 23 INC HL
$EE22 46 LD B,(HL)
$EE23 23 INC HL
$EE24 EB EX DE,HL
$EE25 CD DB 21 CALL PO_STR ; print BC chars from (DE)
$EE28 D1 POP DE
$EE29 18 E7 JR SCR_BACK
SCR_CHECK:
$EE2B D6 17 SUB $17 ; $16->-1 $17->0 $18->+1
$EE2D D5 PUSH DE
$EE2E CD 61 EE CALL VALIDATE
$EE31 D1 POP DE
$EE32 18 DE JR SCR_BACK
;---------------------------------------------------------------------
; SCR_END ($EE34) script byte $00 — the "EXECUTE?" confirmation
;---------------------------------------------------------------------
SCR_END:
$EE34 D5 PUSH DE ; DE -> byte after the $00
$EE35 E5 PUSH HL
$EE36 11 EB EF LD DE,ASKTAB
$EE39 D5 PUSH DE
$EE3A AF XOR A
$EE3B CD 3F 07 CALL PUTMES ; "\r\r EXECUTE? "
$EE3E 01 02 00 LD BC,$0002
$EE41 CD F7 EE CALL INPUT
$EE44 E6 DF AND $DF
$EE46 FE 59 CP 'Y'
$EE48 28 05 JR Z,SCR_GO
$EE4A ED 7B C9 EC LD SP,(SAVED_SP) ; abandon — unwind to MAIN
$EE4E C9 RET
SCR_GO:
$EE4F D1 POP DE
$EE50 3E 01 LD A,$01
$EE52 CD 3F 07 CALL PUTMES ; "Y\r\r"
$EE55 E1 POP HL
$EE56 D1 POP DE
;---------------------------------------------------------------------
; SCR_RESUME ($EE57) script byte $19 — leave the script, run on
;---------------------------------------------------------------------
SCR_RESUME:
$EE57 13 INC DE
$EE58 D5 PUSH DE ; the resume address
$EE59 E5 PUSH HL
$EE5A 3E 02 LD A,$02
$EE5C CD 30 12 CALL SELECT ; back to stream 2 (upper screen)
$EE5F E1 POP HL
$EE60 C9 RET ; -> the byte after the script
;=====================================================================
; VALIDATE ($EE61) A = -1 / 0 / +1 selects the test
;=====================================================================
VALIDATE:
$EE61 28 20 JR Z,V_DEST ; script $17
$EE63 30 0F JR NC,V_ORDER ; script $18
; script $16 - increment must be 1..100
$EE65 AF XOR A
$EE66 11 64 00 LD DE,100
$EE69 2A D1 EC LD HL,(P_INCR)
$EE6C 37 SCF
$EE6D ED 52 SBC HL,DE ; HL - 101
$EE6F D8 RET C
$EE70 CD 4A EF CALL REPORT
$EE73 01 DEFB 1 ; "Range Error"
V_ORDER:
$EE74 2A CB EC LD HL,(P_START)
$EE77 ED 5B CD EC LD DE,(P_FINISH)
$EE7B 37 SCF
$EE7C ED 52 SBC HL,DE ; start - finish - 1
$EE7E D8 RET C
$EE7F CD 4A EF CALL REPORT
$EE82 02 DEFB 2 ; "Numbers Reversed"
V_DEST:
$EE83 21 0C 27 LD HL,9996
$EE86 ED 5B CF EC LD DE,(P_DEST)
$EE8A ED 52 SBC HL,DE
$EE8C 38 08 JR C,V_BAD
$EE8E 19 ADD HL,DE ; HL = 9996 again
$EE8F ED 5B CD EC LD DE,(P_FINISH)
$EE93 ED 52 SBC HL,DE
$EE95 D0 RET NC
V_BAD:
$EE96 CD 4A EF CALL REPORT
$EE99 03 DEFB 3 ; "Invalid Line Number"
;=====================================================================
; INSTR ($EE9A) read up to BC characters into the buffer at (HL)
;=====================================================================
INSTR:
$EE9A E5 PUSH HL
$EE9B CD F7 EE CALL INPUT ; BC = length, DE = text
$EE9E E1 POP HL
$EE9F 71 LD (HL),C
$EEA0 23 INC HL
$EEA1 70 LD (HL),B
$EEA2 23 INC HL
$EEA3 EB EX DE,HL
$EEA4 ED B0 LDIR
$EEA6 AF XOR A
$EEA7 12 LD (DE),A ; NUL-terminate
$EEA8 C9 RET
;=====================================================================
; INNUM ($EEA9) read a number into HL. "#" prefix = hexadecimal.
;=====================================================================
INNUM:
$EEA9 01 06 00 LD BC,$0006 ; up to 6 characters
$EEAC CD F7 EE CALL INPUT
$EEAF 21 00 00 LD HL,$0000
$EEB2 FE 23 CP '#'
$EEB4 28 1C JR Z,IN_HEX
IN_DEC:
$EEB6 FE 0D CP $0D
$EEB8 C8 RET Z
$EEB9 44 LD B,H ; HL = HL*10 + digit
$EEBA 4D LD C,L
$EEBB 29 ADD HL,HL
$EEBC 29 ADD HL,HL
$EEBD 09 ADD HL,BC
$EEBE 29 ADD HL,HL
$EEBF 38 0F JR C,IN_AGAIN ; overflow -> ask again
$EEC1 CD D9 30 CALL DIGITQ
$EEC4 38 0A JR C,IN_AGAIN ; not a digit -> ask again
$EEC6 D6 30 SUB '0'
$EEC8 06 00 LD B,$00
$EECA 4F LD C,A
$EECB 13 INC DE
$EECC 1A LD A,(DE)
$EECD 09 ADD HL,BC
$EECE 30 E6 JR NC,IN_DEC
IN_AGAIN:
$EED0 18 D7 JR INNUM
IN_HEX:
$EED2 13 INC DE
$EED3 1A LD A,(DE)
$EED4 FE 0D CP $0D
$EED6 C8 RET Z
$EED7 29 ADD HL,HL ; HL = HL*16 + nibble
$EED8 29 ADD HL,HL
$EED9 29 ADD HL,HL
$EEDA 29 ADD HL,HL
$EEDB CD D9 30 CALL DIGITQ
$EEDE DC EB EE CALL C,HEXLET ; not 0-9: try A-F
$EEE1 38 ED JR C,IN_AGAIN
$EEE3 D6 30 SUB '0'
$EEE5 06 00 LD B,$00
$EEE7 4F LD C,A
$EEE8 09 ADD HL,BC
$EEE9 18 E7 JR IN_HEX
HEXLET:
$EEEB E6 DF AND $DF
$EEED D6 41 SUB 'A'
$EEEF D8 RET C
$EEF0 FE 06 CP $06
$EEF2 3F CCF
$EEF3 D8 RET C
$EEF4 C6 3A ADD A,$3A ; map A-F to '0'+10..'0'+15
$EEF6 C9 RET
;=====================================================================
; INPUT ($EEF7) read a line using the ROM editor
; Entry: BC = maximum length accepted.
; Exit: BC = length, DE = text, A = first character.
; An empty line (just ENTER) unwinds to MAIN.
; An over-long line loops back and asks again.
;=====================================================================
INPUT:
$EEF7 C5 PUSH BC
$EEF8 2A 51 5C LD HL,(CURCHL)
$EEFB E5 PUSH HL ; remember the caller's channel
$EEFC AF XOR A
$EEFD CD 30 12 CALL SELECT ; stream 0 (lower screen)
$EF00 CD A9 08 CALL CLLHS
$EF03 FD CB 02 DE SET 3,(IY+$02) ; TVFLAG - input on lower screen
$EF07 CD 4E 13 CALL X_CALC
$EF0A 21 71 5C LD HL,FLAGX
$EF0D CB EE SET 5,(HL) ; INPUT mode
$EF0F CB FE SET 7,(HL)
$EF11 E5 PUSH HL
$EF12 01 01 00 LD BC,$0001
$EF15 F7 RST $30 ; BC-SPACES: one byte of workspace
$EF16 36 0D LD (HL),$0D
$EF18 22 5B 5C LD (KCUR),HL
$EF1B CD 82 0A CALL EDIT_K ; hand over to the ROM editor
$EF1E CD A9 08 CALL CLLHS
$EF21 E1 POP HL
$EF22 CB AE RES 5,(HL)
$EF24 CB BE RES 7,(HL)
$EF26 E1 POP HL
$EF27 CD 48 12 CALL SEL_HL ; restore the caller's channel
$EF2A FD 36 22 00 LD (IY+$22),$00 ; zero KCUR high byte - no cursor
$EF2E 2A 63 5C LD HL,(STKBOT)
$EF31 ED 5B 61 5C LD DE,(WORKSP)
$EF35 37 SCF
$EF36 ED 52 SBC HL,DE ; HL = length typed - 1
$EF38 C1 POP BC ; BC = maximum allowed
$EF39 ED 42 SBC HL,BC
$EF3B 30 BA JR NC,INPUT ; too long: start over
$EF3D 09 ADD HL,BC
$EF3E 44 LD B,H
$EF3F 4D LD C,L ; BC = actual length
$EF40 78 LD A,B
$EF41 B1 OR C
$EF42 1A LD A,(DE) ; A = first character
$EF43 C0 RET NZ
$EF44 18 21 JR ABORT ; empty line -> back to the menu
;---------------------------------------------------------------------
; $EF46 "Task Complete" trampoline. MAIN pushes this address so a
; handler that just RETs lands here and reports success.
;---------------------------------------------------------------------
$EF46 CD 4A EF CALL REPORT
$EF49 00 DEFB 0 ; "Task Complete"
;=====================================================================
; REPORT ($EF4A) print report message n, beep twice, return to MAIN
; Called as: CALL REPORT
; DEFB n
; The DEFB is read via the return address; REPORT never comes back.
;=====================================================================
REPORT:
$EF4A CD A9 08 CALL CLLHS
$EF4D E1 POP HL ; HL -> the DEFB
$EF4E 7E LD A,(HL)
$EF4F 11 6B EF LD DE,ERRTAB
$EF52 CD 3F 07 CALL PUTMES
$EF55 21 84 01 LD HL,$0184 ; period
$EF58 11 0A 02 LD DE,$020A ; cycles-1
$EF5B CD F3 03 CALL PARP ; beep
$EF5E 01 01 00 LD BC,$0001
$EF61 CD F2 1F CALL PAUSE
$EF64 CD F2 1F CALL PAUSE
ABORT:
$EF67 ED 7B C9 EC LD SP,(SAVED_SP)
$EF6B C9 RET ; -> MAIN
; ^ this RET opcode ($C9) doubles as the dummy
; terminator that starts ERRTAB.
;=====================================================================
; ERRTAB ($EF6B) report messages, index 0-7
;=====================================================================
ERRTAB:
$EF6B DEFB $C9 ; dummy terminator
$EF6C DEFM "Task Complete" ; 0 -> "Task Completed"
$EF79 DEFB $E4 ; 'd'+$80
$EF7A DEFM "Range Erro" ; 1
$EF84 DEFB $F2 ; 'r'+$80
$EF85 DEFM "Numbers Reverse" ; 2
$EF94 DEFB $E4
$EF95 DEFM "Invalid Line Numbe" ; 3
$EFA7 DEFB $F2
$EFA8 DEFM "Zero not Allowe" ; 4
$EFB7 DEFB $E4
$EFB8 DEFM "Lines would Overla" ; 5
$EFCA DEFB $F0 ; 'p'+$80
$EFCB DEFM "No Room at Destinatio" ; 6
$EFE0 DEFB $EE ; 'n'+$80
$EFE1 DEFM "Zero Block" ; 7
;=====================================================================
; ASKTAB ($EFEB) the two-entry confirmation table
; 0 = "\r\r EXECUTE? " 1 = "Y\r\r"
; Entry 1's terminator ($8D) is also the dummy terminator of MSGTAB.
;=====================================================================
ASKTAB:
$EFEB DEFB $A1 ; dummy terminator
$EFEC DEFB $0D,$0D
$EFEE DEFM " EXECUTE?" ; 0
$EFF7 DEFB $A0 ; ' '+$80
$EFF8 DEFB $59,$0D ; 1 "Y",CR
MSGTAB:
$EFFA DEFB $8D ; CR+$80 / MSGTAB dummy terminator
;=====================================================================
; MSGTAB body ($EFFB-$F176). 64 words, see the index in the header.
; Each message ends with its last character + $80.
;=====================================================================
$EFFB DEFM "ADDRES" : DEFB $D3 ; 0 ADDRESS
$F002 DEFM "STAR" : DEFB $D4 ; 1 START
$F007 DEFM "FINIS" : DEFB $C8 ; 2 FINISH
$F00D DEFM "1s" : DEFB $F4 ; 3 1st
$F010 DEFM "UNAFFECTE" : DEFB $C4 ; 4 UNAFFECTED
$F01A DEFM "DESTINATIO" : DEFB $CE ; 5 DESTINATION
$F025 DEFM "INCREMEN" : DEFB $D4 ; 6 INCREMENT
$F02E DEFM "LIN" : DEFB $C5 ; 7 LINE
$F032 DEFM "NUMBE" : DEFB $D2 ; 8 NUMBER
$F038 DEFM "DELET" : DEFB $C5 ; 9 DELETE
$F03E DEFM "MOV" : DEFB $C5 ; 10 MOVE
$F042 DEFM "COP" : DEFB $D9 ; 11 COPY
$F046 DEFM "RENUMBE" : DEFB $D2 ; 12 RENUMBER
$F04E DEFM "BLOC" : DEFB $CB ; 13 BLOCK
$F053 DEFM "O" : DEFB $C6 ; 14 OF
$F055 DEFM "PROGRA" : DEFB $CD ; 15 PROGRAM
$F05C DEFM "MACHIN" : DEFB $C5 ; 16 MACHINE
$F063 DEFM "COD" : DEFB $C5 ; 17 CODE
$F067 DEFM "UDG" : DEFB $F3 ; 18 UDGs
$F06B DEFM "T" : DEFB $CF ; 19 TO
$F06D DEFM "DAT" : DEFB $C1 ; 20 DATA
$F071 DEFM "SEARC" : DEFB $C8 ; 21 SEARCH
$F077 DEFM "LIS" : DEFB $D4 ; 22 LIST
$F07B DEFM "REPLAC" : DEFB $C5 ; 23 REPLACE
$F082 DEFM "OL" : DEFB $C4 ; 24 OLD
$F085 DEFM "NE" : DEFB $D7 ; 25 NEW
$F088 DEFM "STRIN" : DEFB $C7 ; 26 STRING
$F08E DEFM "RE" : DEFB $CD ; 27 REM
$F091 DEFM "UPPE" : DEFB $D2 ; 28 UPPER
$F096 DEFM "lowe" : DEFB $F2 ; 29 lower
$F09B DEFM "CAS" : DEFB $C5 ; 30 CASE
$F09F DEFM "DE" : DEFB $C3 ; 31 DEC
$F0A2 DEFM "HE" : DEFB $D8 ; 32 HEX
$F0A5 DEFM "MERG" : DEFB $C5 ; 33 MERGE
$F0AA DEFM "? (0=no" : DEFB $A9 ; 34 ? (0=no)
$F0B2 DEFM "CREAT" : DEFB $C5 ; 35 CREATE
$F0B8 DEFM "SYMBO" : DEFB $CC ; 36 SYMBOL
$F0BE DEFM "BYTE" : DEFB $D3 ; 37 BYTES
$F0C3 DEFM "PE" : DEFB $D2 ; 38 PER
$F0C6 DEFM "byte" : DEFB $F3 ; 39 bytes
$F0CB DEFM "STATU" : DEFB $D3 ; 40 STATUS
$F0D1 DEFM "REPOR" : DEFB $D4 ; 41 REPORT
$F0D7 DEFM "MEMOR" : DEFB $D9 ; 42 MEMORY
$F0DD DEFM "LEF" : DEFB $D4 ; 43 LEFT
$F0E1 DEFM "LENGT" : DEFB $C8 ; 44 LENGTH
$F0E7 DEFM "VARIABL" : DEFB $C5 ; 45 VARIABLE
$F0EF DEFM "FIL" : DEFB $C5 ; 46 FILE
$F0F3 DEFM "USER RA" : DEFB $CD ; 47 USER RAM
$F0FB DEFM "INTERRUPT" : DEFB $D3 ; 48 INTERRUPTS
$F105 DEFM "NORMA" : DEFB $CC ; 49 NORMAL
$F10B DEFM "DIVERTE" : DEFB $C4 ; 50 DIVERTED
$F113 DEFM "BOB MITCHELL 198" : DEFB $B5 ; 51 BOB MITCHELL 1985
$F124 DEFM "DESIG" : DEFB $CE ; 52 DESIGN
$F12A DEFM "CHARACTE" : DEFB $D2 ; 53 CHARACTER
$F133 DEFM "US" : DEFB $C5 ; 54 USE
$F136 DEFM "COMPAC" : DEFB $D4 ; 55 COMPACT
$F13D DEFM "COLUM" : DEFB $CE ; 56 COLUMN
$F143 DEFM "I/O (on/off" : DEFB $A9 ; 57 I/O (on/off)
$F14F DEFM "IN QUOTES? (Y/N" : DEFB $A9 ; 58 IN QUOTES? (Y/N)
$F15F DEFM "AUT" : DEFB $CF ; 59 AUTO
$F163 DEFM "ABCDEFG" : DEFB $C8 ; 60 ABCDEFGH
$F16B DEFM "RESTAR" : DEFB $D4 ; 61 RESTART
$F172 DEFB $0D,$8D ; 62 CR CR
$F174 DEFM "(c" : DEFB $A9 ; 63 (c)
;=====================================================================
; COMMAND H — Hex & Dec ($F177)
; Just an information page; the real work is INNUM's "#" prefix.
;=====================================================================
CMD_H:
$F177 CD 8F ED CALL SCRIPT_CLS
$F17A DEFB $0D
$F17B DEFB $E0 ; MSG 32 "HEX"
$F17C DEFM " &"
$F17E DEFB $DF ; MSG 31 "DEC"
$F17F DEFM "IMAL"
$F183 DEFB $FE ; MSG 62 <CR><CR>
$F184 DEFM " Precede"
$F18C DEFB $E0 ; MSG 32 "HEX"
$F18D DEFM " nos with ""#""."
$F19B DEFB $19 ; resume below
$F19C CD 97 ED CALL SCRIPT ; wait-for-key script
$F19F DEFB $13 ; input a number
$F1A0 DEFB $FE ; <CR><CR>
$F1A1 DEFB $9F ; MSG 31 "DEC" + ": "
$F1A2 DEFB $14 ; print it in decimal
$F1A3 DEFB $06
$F1A4 DEFB $A0 ; MSG 32 "HEX" + ": "
$F1A5 DEFB $10 ; print it in hex
$F1A6 DEFB $19 ; resume below
$F1A7 FD 36 52 FF LD (IY+$52),$FF ; SCRCT - suppress "scroll?"
$F1AB 18 EF JR $F19C ; loop for another number
;=====================================================================
; COMMAND A — Alter Program ($F1AD) search & replace
;=====================================================================
CMD_A:
$F1AD CD 8F ED CALL SCRIPT_CLS
$F1B0 DEFB $0D
$F1B1 DEFB $D5 ; MSG 21 "SEARCH"
$F1B2 DEFM " &"
$F1B4 DEFB $D7 ; MSG 23 "REPLACE"
$F1B5 DEFB $FE ; <CR><CR>
$F1B6 DEFB $C1,$80 ; " START ADDRESS: "
$F1B8 DEFB $13,$1A,$14 ; input -> P_START, echo
$F1BB DEFB $FE
$F1BC DEFB $C2,$80 ; " FINISH ADDRESS: "
$F1BE DEFB $13,$1B,$1C,$14 ; input -> P_FINISH and P_DEST
$F1C2 DEFB $FE
$F1C3 DEFB $D8,$9A ; " OLD STRING: "
$F1C5 DEFB $11,$00,$12,$00 ; input/echo buffer 0
$F1C9 DEFB $FE
$F1CA DEFB $D9,$9A ; " NEW STRING: "
$F1CC DEFB $11,$01,$12,$01 ; input/echo buffer 1
$F1D0 DEFB $FE
$F1D1 DEFB $D6,$A2 ; " LIST ? (0=no): "
$F1D3 DEFB $13,$1D,$14 ; input -> P_INCR (used as a flag)
$F1D6 DEFB $16,$17,$18 ; validate
$F1D9 DEFB $00 ; "EXECUTE?"
;---------------------------------------------------------------------
; Walk the program from P_START to P_FINISH replacing STR0 with STR1.
;---------------------------------------------------------------------
$F1DA CD 95 F2 CALL EXPAND ; resolve "&&&" number escapes
$F1DD 2A CB EC LD HL,(P_START)
$F1E0 CD D6 16 CALL FIND_L
$F1E3 18 03 JR AL_LINE
AL_NEXT:
$F1E5 2A D5 EC LD HL,(P_WORK2) ; address of the next line
AL_LINE:
$F1E8 22 D3 EC LD (P_WORK1),HL ; address of this line
$F1EB CD 20 17 CALL RECLEN
$F1EE ED 53 D5 EC LD (P_WORK2),DE ; remember where the next one starts
$F1F2 56 LD D,(HL) ; line number (big-endian)
$F1F3 23 INC HL
$F1F4 5E LD E,(HL)
$F1F5 23 INC HL
$F1F6 E5 PUSH HL
$F1F7 2A CD EC LD HL,(P_FINISH)
$F1FA A7 AND A
$F1FB ED 52 SBC HL,DE
AL_DONE:
$F1FD E1 POP HL
$F1FE D8 RET C ; beyond the last wanted line
$F1FF 4E LD C,(HL) ; BC = line length
$F200 23 INC HL
$F201 46 LD B,(HL)
AL_TEXT:
$F202 23 INC HL ; HL -> the line text
AL_SCAN:
$F203 11 D9 EC LD DE,STR0
AL_CMP1:
$F206 1A LD A,(DE)
$F207 BE CP (HL)
$F208 28 14 JR Z,AL_CMPN ; first character matches
AL_STEP:
$F20A 7E LD A,(HL)
$F20B CD 02 16 CALL SKIPNUM ; $0E -> skip the 5-byte value
$F20E 20 06 JR NZ,AL_STEP2
$F210 2B DEC HL ; SKIPNUM moved HL on by 6
$F211 0B DEC BC
$F212 0B DEC BC
$F213 0B DEC BC
$F214 0B DEC BC
$F215 0B DEC BC
AL_STEP2:
$F216 23 INC HL
$F217 0B DEC BC
$F218 78 LD A,B
$F219 B1 OR C
$F21A 28 C9 JR Z,AL_NEXT ; end of line
$F21C 18 E8 JR AL_CMP1
AL_CMPN:
$F21E C5 PUSH BC
$F21F DD E1 POP IX ; IX = bytes left in this line
$F221 37 SCF
$F222 E5 PUSH HL
$F223 2A D7 EC LD HL,(STR0_LEN)
$F226 ED 42 SBC HL,BC ; does the search string still fit?
$F228 E1 POP HL
$F229 30 BA JR NC,AL_NEXT
$F22B E5 PUSH HL
$F22C ED 4B D7 EC LD BC,(STR0_LEN)
AL_CMP2:
$F230 1A LD A,(DE)
$F231 BE CP (HL)
$F232 13 INC DE
$F233 23 INC HL
$F234 0B DEC BC
$F235 28 07 JR Z,AL_HIT
$F237 E1 POP HL ; mismatch - restore and step on
$F238 DD E5 PUSH IX
$F23A C1 POP BC
$F23B 0B DEC BC
$F23C 18 C4 JR AL_TEXT
AL_HIT:
$F23E 78 LD A,B
$F23F B1 OR C
$F240 20 EE JR NZ,AL_CMP2 ; keep comparing
; Found. Swap STR0 for STR1 in place.
$F242 ED 4B D7 EC LD BC,(STR0_LEN)
$F246 2A FA EC LD HL,(STR1_LEN)
$F249 A7 AND A
$F24A ED 42 SBC HL,BC ; HL = growth (may be negative)
$F24C C5 PUSH BC
$F24D E5 PUSH HL
$F24E 44 LD B,H
$F24F 4D LD C,L
$F250 D4 BB 1F CALL NC,CHK_SZ ; growing: is there room?
$F253 E1 POP HL
$F254 C1 POP BC
$F255 E3 EX (SP),HL
$F256 CD 50 17 CALL DELREC ; remove the old text
$F259 E5 PUSH HL
$F25A ED 4B FA EC LD BC,(STR1_LEN)
$F25E C5 PUSH BC
$F25F CD BB 12 CALL INSERT ; open a gap for the new text
$F262 C1 POP BC
$F263 D1 POP DE
$F264 21 FC EC LD HL,STR1
$F267 ED B0 LDIR
$F269 C1 POP BC
$F26A D5 PUSH DE
$F26B 2A D5 EC LD HL,(P_WORK2) ; fix up "next line" pointer
$F26E 09 ADD HL,BC
$F26F 22 D5 EC LD (P_WORK2),HL
$F272 A7 AND A
$F273 ED 52 SBC HL,DE
$F275 E5 PUSH HL
$F276 2A D3 EC LD HL,(P_WORK1) ; fix up this line's length word
$F279 23 INC HL
$F27A 23 INC HL
$F27B 5E LD E,(HL)
$F27C 23 INC HL
$F27D 56 LD D,(HL)
$F27E EB EX DE,HL
$F27F 09 ADD HL,BC
$F280 EB EX DE,HL
$F281 72 LD (HL),D
$F282 2B DEC HL
$F283 73 LD (HL),E
$F284 2B DEC HL
$F285 2B DEC HL
$F286 3A D1 EC LD A,(P_INCR) ; the LIST flag
$F289 A7 AND A
$F28A 28 04 JR Z,AL_ON
$F28C CD A1 15 CALL PUT_SR ; echo the altered line
$F28F D7 RST $10
AL_ON:
$F290 C1 POP BC
$F291 E1 POP HL
$F292 C3 03 F2 JP AL_SCAN ; keep searching the same line
;=====================================================================
; EXPAND ($F295)
; Both search strings may contain a "&&&<number>&&&" escape. BASIC
; keeps numeric constants as ASCII digits followed by $0E and a 5-byte
; binary value, so a plain text search would never match one. This
; routine evaluates the digits with the ROM number parser and rewrites
; the escape as digits + $0E + the five bytes off the calculator stack.
;=====================================================================
EXPAND:
$F295 ED 4B D7 EC LD BC,(STR0_LEN)
$F299 11 D9 EC LD DE,STR0
$F29C CD B6 F2 CALL FIND_AMP
$F29F DC D3 F2 CALL C,DO_AMP
$F2A2 38 F1 JR C,EXPAND ; another escape in buffer 0?
EXPAND1:
$F2A4 ED 4B FA EC LD BC,(STR1_LEN)
$F2A8 11 FC EC LD DE,STR1
$F2AB CD B6 F2 CALL FIND_AMP
$F2AE DC D3 F2 CALL C,DO_AMP
$F2B1 38 F1 JR C,EXPAND1
$F2B3 C9 RET
FIND_AMP1:
$F2B4 54 LD D,H
$F2B5 5D LD E,L
FIND_AMP:
$F2B6 1A LD A,(DE)
$F2B7 FE 26 CP '&'
$F2B9 28 07 JR Z,FA_RUN
FA_NEXT:
$F2BB 13 INC DE
$F2BC 0B DEC BC
$F2BD 78 LD A,B
$F2BE B1 OR C
$F2BF C8 RET Z ; NC = no escape found
$F2C0 18 F4 JR FIND_AMP
FA_RUN:
$F2C2 62 LD H,D ; need three in a row
$F2C3 6B LD L,E
$F2C4 23 INC HL
$F2C5 7E LD A,(HL)
$F2C6 FE 26 CP '&'
$F2C8 20 F1 JR NZ,FA_NEXT
$F2CA 23 INC HL
$F2CB 7E LD A,(HL)
$F2CC FE 26 CP '&'
$F2CE 20 EB JR NZ,FA_NEXT
$F2D0 23 INC HL ; HL -> first char after "&&&"
$F2D1 37 SCF
$F2D2 C9 RET
DO_AMP:
$F2D3 D5 PUSH DE
$F2D4 E5 PUSH HL
$F2D5 E5 PUSH HL
$F2D6 2A 5D 5C LD HL,(CH_ADD)
$F2D9 E3 EX (SP),HL ; stack the real CH_ADD
$F2DA 22 5D 5C LD (CH_ADD),HL ; parse from inside the string
$F2DD DF RST $18 ; GET-CHAR
$F2DE CD D9 30 CALL DIGITQ
$F2E1 30 0C JR NC,DA_NUM
$F2E3 FE C4 CP $C4 ; BIN token
$F2E5 28 08 JR Z,DA_NUM
$F2E7 E1 POP HL ; not a number - leave it alone
$F2E8 22 5D 5C LD (CH_ADD),HL
$F2EB E1 POP HL
$F2EC E1 POP HL
$F2ED A7 AND A
$F2EE C9 RET
DA_NUM:
$F2EF CD 59 30 CALL STKUSN ; stack the value
$F2F2 DF RST $18
$F2F3 01 01 00 LD BC,$0001
$F2F6 CD B4 F2 CALL FIND_AMP1 ; closing "&&&"?
$F2F9 E1 POP HL
$F2FA 22 5D 5C LD (CH_ADD),HL ; restore CH_ADD
$F2FD E1 POP HL
$F2FE 38 06 JR C,DA_SUB
$F300 EF RST $28 ; calculator ...
$F301 DEFB $02 ; delete
$F302 DEFB $38 ; end-calc
$F303 D1 POP DE
$F304 A7 AND A
$F305 C9 RET
DA_SUB:
$F306 EB EX DE,HL
$F307 A7 AND A
$F308 ED 52 SBC HL,DE
$F30A EB EX DE,HL
$F30B 42 LD B,D
$F30C 4B LD C,E
$F30D D1 POP DE
$F30E ED B0 LDIR ; close up over the "&&&"
$F310 3E 0E LD A,$0E ; BASIC's number marker
$F312 12 LD (DE),A
$F313 13 INC DE
$F314 2A 65 5C LD HL,(STKEND) ; take the 5-byte value back
$F317 01 05 00 LD BC,$0005
$F31A A7 AND A
$F31B ED 42 SBC HL,BC
$F31D 22 65 5C LD (STKEND),HL
$F320 ED B0 LDIR
$F322 37 SCF
$F323 C9 RET
;=====================================================================
; COMMAND M — Move Lines ($F324)
;=====================================================================
CMD_M:
$F324 CD 8F ED CALL SCRIPT_CLS
$F327 DEFB $0D
$F328 DEFB $CA ; MSG 10 "MOVE"
$F329 DEFB $19 ; resume below
$F32A CD 39 F3 CALL ASK_BLOCK ; the four standard prompts
$F32D CD 44 F5 CALL CHK_ROOM ; will it fit at the destination?
$F330 CD 6D F3 CALL RENUM_BLK ; give the block its new numbers
$F333 CD BB F3 CALL FIX_REFS ; repoint GO TO / GO SUB / ...
$F336 C3 19 F5 JP CMD_Z ; sort the lines into place
;=====================================================================
; ASK_BLOCK ($F339) the prompt script shared by M and R
;=====================================================================
ASK_BLOCK:
$F339 CD 92 ED CALL SCRIPT_FE
$F33C DEFB $CD,$CE,$CF ; " BLOCK OF PROGRAM"
$F33F DEFB $FE
$F340 DEFB $C1,$80 ; " START ADDRESS: "
$F342 DEFB $13,$1A,$14 ; -> P_START
$F345 DEFB $FE
$F346 DEFB $C3,$C4,$80 ; " 1st UNAFFECTED ADDRESS: "
$F349 DEFB $13,$1B,$14 ; -> P_FINISH
$F34C DEFB $FE
$F34D DEFB $85 ; " DESTINATION: "
$F34E DEFB $13,$1C,$14 ; -> P_DEST
$F351 DEFB $FE
$F352 DEFB $18,$17 ; start<=finish, dest/finish<=9996
$F354 DEFB $86 ; " INCREMENT: "
$F355 DEFB $13,$1D,$14 ; -> P_INCR
$F358 DEFB $15,$16 ; non-zero, <=100
$F35A DEFB $00 ; "EXECUTE?"
$F35B C9 RET
;=====================================================================
; COMMAND R — Renumber ($F35C)
;=====================================================================
CMD_R:
$F35C CD 8F ED CALL SCRIPT_CLS
$F35F DEFB $0D
$F360 DEFB $CC ; MSG 12 "RENUMBER"
$F361 DEFB $19
$F362 CD 39 F3 CALL ASK_BLOCK
$F365 CD 6D F3 CALL RENUM_BLK
$F368 CD F6 F4 CALL CHK_ORDER ; would the result overlap?
$F36B 18 4E JR FIX_REFS
;=====================================================================
; RENUM_BLK ($F36D)
; Pass 1. Every line's 2-byte LENGTH field is used as scratch to hold
; the line's OLD number while the number field takes the new one. The
; length field can be sacrificed because the walker (NEXT_LINE) finds
; line ends by scanning for $0D, not by using the length. Pass 3
; (REBUILD, $F452) puts the lengths back.
;=====================================================================
RENUM_BLK:
$F36D 2A CB EC LD HL,(P_START)
$F370 CD D6 16 CALL FIND_L
$F373 E5 PUSH HL ; first line of the block
$F374 2A CD EC LD HL,(P_FINISH)
$F377 CD D6 16 CALL FIND_L
$F37A 13 INC DE
$F37B ED 53 D3 EC LD (P_WORK1),DE ; one past the end of the block
$F37F ED 5B CF EC LD DE,(P_DEST) ; the first new line number
$F383 2A 53 5C LD HL,(PROG)
; Lines before the block: copy the old number into the length field
; so that pass 2 can look every old number up.
RB_PRE:
$F386 CD CF F4 CALL IN_PROG
$F389 30 0D JR NC,RB_BLOCK
$F38B 46 LD B,(HL)
$F38C 23 INC HL
$F38D 4E LD C,(HL)
$F38E 23 INC HL
$F38F 71 LD (HL),C
$F390 23 INC HL
$F391 70 LD (HL),B
$F392 23 INC HL
$F393 CD C4 F4 CALL NEXT_LINE
$F396 18 EE JR RB_PRE
RB_BLOCK:
$F398 E1 POP HL
; Lines inside the block: swap in the new number, stash the old one.
RENUM_RUN:
$F399 E5 PUSH HL
$F39A D5 PUSH DE
$F39B ED 5B D3 EC LD DE,(P_WORK1)
$F39F A7 AND A
$F3A0 ED 52 SBC HL,DE
$F3A2 D1 POP DE
$F3A3 E1 POP HL
$F3A4 D0 RET NC ; past the end of the block
$F3A5 46 LD B,(HL) ; B = old high byte
$F3A6 72 LD (HL),D ; new high byte
$F3A7 23 INC HL
$F3A8 4E LD C,(HL) ; C = old low byte
$F3A9 73 LD (HL),E ; new low byte
$F3AA 23 INC HL
$F3AB 71 LD (HL),C ; length field := old number
$F3AC 23 INC HL
$F3AD 70 LD (HL),B
$F3AE 23 INC HL
$F3AF E5 PUSH HL
$F3B0 2A D1 EC LD HL,(P_INCR)
$F3B3 19 ADD HL,DE
$F3B4 EB EX DE,HL ; next new number
$F3B5 E1 POP HL
$F3B6 CD C4 F4 CALL NEXT_LINE
$F3B9 18 DE JR RENUM_RUN
;=====================================================================
; FIX_REFS ($F3BB)
; Pass 2. Find every line-number reference (GO TO, GO SUB, RUN, LIST,
; LLIST, RESTORE, LINE) and rewrite the digits to the new number.
;=====================================================================
FIX_REFS:
$F3BB 3E FF LD A,$FF
$F3BD CD 30 12 CALL SELECT ; stream $FF - edit-buffer channel
$F3C0 2A 53 5C LD HL,(PROG)
$F3C3 23 INC HL ; skip the first line's header
$F3C4 23 INC HL
$F3C5 23 INC HL
$F3C6 23 INC HL
FR_LOOP:
$F3C7 CD 6E F4 CALL FIND_KEYWD
$F3CA D2 52 F4 JP NC,REBUILD ; end of program - pass 3
$F3CD 54 LD D,H ; DE = first digit
$F3CE 5D LD E,L
$F3CF 06 00 LD B,$00 ; B = digit count
FR_DIGITS:
$F3D1 04 INC B
$F3D2 23 INC HL
$F3D3 7E LD A,(HL)
$F3D4 FE 2E CP '.'
$F3D6 20 03 JR NZ,FR_TEST ; a decimal point - not a line number
FR_SKIP:
$F3D8 EB EX DE,HL
$F3D9 18 EC JR FR_LOOP
FR_TEST:
$F3DB FE 0E CP $0E ; number marker ends the digits
$F3DD 20 F2 JR NZ,FR_DIGITS
$F3DF 23 INC HL ; step over the 5-byte value
$F3E0 23 INC HL
$F3E1 23 INC HL
$F3E2 23 INC HL
$F3E3 23 INC HL
$F3E4 23 INC HL
$F3E5 7E LD A,(HL)
$F3E6 FE 3A CP ':'
$F3E8 28 04 JR Z,FR_OK
$F3EA FE 0D CP $0D
$F3EC 20 EA JR NZ,FR_SKIP ; something follows - an expression
FR_OK:
$F3EE 78 LD A,B
$F3EF FE 05 CP $05
$F3F1 30 E5 JR NC,FR_SKIP ; more than 4 digits - not a line no.
$F3F3 D5 PUSH DE
$F3F4 21 00 00 LD HL,$0000
FR_VAL:
$F3F7 1A LD A,(DE) ; HL = value of the digit string
$F3F8 FE 0E CP $0E
$F3FA 28 0F JR Z,FR_FIND
$F3FC D6 30 SUB '0'
$F3FE 4D LD C,L
$F3FF 44 LD B,H
$F400 29 ADD HL,HL
$F401 29 ADD HL,HL
$F402 09 ADD HL,BC
$F403 29 ADD HL,HL ; *10
$F404 4F LD C,A
$F405 06 00 LD B,$00
$F407 09 ADD HL,BC
$F408 13 INC DE
$F409 18 EC JR FR_VAL
; Look the old number up in the stashed length fields.
FR_FIND:
$F40B 4D LD C,L
$F40C 44 LD B,H
$F40D 2A 53 5C LD HL,(PROG)
FR_SEEK:
$F410 23 INC HL
$F411 23 INC HL ; HL -> stashed old number
$F412 CD CF F4 CALL IN_PROG
$F415 38 03 JR C,FR_CMP
$F417 E1 POP HL ; not found - leave the text alone
FR_ON:
$F418 18 AD JR FR_LOOP
FR_CMP:
$F41A 23 INC HL
$F41B 7E LD A,(HL)
$F41C B8 CP B
$F41D 30 07 JR NC,FR_MAYBE
FR_NEXT:
$F41F 23 INC HL
$F420 23 INC HL
$F421 CD C4 F4 CALL NEXT_LINE
$F424 18 EA JR FR_SEEK
FR_MAYBE:
$F426 2B DEC HL
$F427 20 04 JR NZ,FR_GOT
$F429 7E LD A,(HL)
$F42A B9 CP C
$F42B 38 F2 JR C,FR_NEXT
FR_GOT:
$F42D 2B DEC HL
$F42E 4E LD C,(HL) ; BC = the NEW number
$F42F 2B DEC HL
$F430 46 LD B,(HL)
$F431 E1 POP HL ; HL -> the old digits
$F432 E5 PUSH HL
$F433 EB EX DE,HL
$F434 C5 PUSH BC
$F435 CD 4D 17 CALL DEL_DE ; delete the old digit string
$F438 C1 POP BC
$F439 22 5B 5C LD (KCUR),HL ; stream $FF writes at KCUR
$F43C C5 PUSH BC
$F43D CD 88 17 CALL PUT_BC ; write the new digits
$F440 C1 POP BC
$F441 2A 5B 5C LD HL,(KCUR)
$F444 AF XOR A
$F445 23 INC HL ; rebuild the hidden 5-byte value
$F446 77 LD (HL),A
$F447 23 INC HL
$F448 77 LD (HL),A
$F449 23 INC HL
$F44A 71 LD (HL),C
$F44B 23 INC HL
$F44C 70 LD (HL),B
$F44D 23 INC HL
$F44E 77 LD (HL),A
$F44F E1 POP HL
$F450 18 C6 JR FR_ON
;=====================================================================
; REBUILD ($F452) = COMMAND Y "Uncorrupt"
; Pass 3. Recompute every line's length word by measuring the gap to
; the next line. Run on its own it repairs a program whose length
; fields have been corrupted.
;=====================================================================
CMD_Y:
REBUILD:
$F452 2A 53 5C LD HL,(PROG)
RB_LOOP:
$F455 23 INC HL
$F456 23 INC HL
$F457 CD CF F4 CALL IN_PROG
$F45A D0 RET NC
$F45B 54 LD D,H
$F45C 5D LD E,L
$F45D 23 INC HL
$F45E 23 INC HL
$F45F CD C4 F4 CALL NEXT_LINE
$F462 E5 PUSH HL
$F463 37 SCF
$F464 ED 52 SBC HL,DE
$F466 2B DEC HL
$F467 EB EX DE,HL
$F468 73 LD (HL),E
$F469 23 INC HL
$F46A 72 LD (HL),D
$F46B E1 POP HL
$F46C 18 E7 JR RB_LOOP
;=====================================================================
; FIND_KEYWD ($F46E)
; Scan the program from HL for a keyword that takes a line number,
; followed by a digit. Returns CY with HL on the first digit; NC at
; the end of the program. Skips REM bodies, quoted strings and the
; 5-byte binary form of every constant.
;=====================================================================
FIND_KEYWD:
$F46E 7E LD A,(HL)
$F46F CD CF F4 CALL IN_PROG
$F472 D0 RET NC
$F473 FE EA CP $EA ; REM
$F475 20 0D JR NZ,FK_QUOTE
FK_REM:
$F477 23 INC HL ; skip to end of line
$F478 7E LD A,(HL)
$F479 FE 0D CP $0D
$F47B 20 FA JR NZ,FK_REM
FK_HDR:
$F47D 23 INC HL ; step over the next line's header
$F47E 23 INC HL
$F47F 23 INC HL
$F480 23 INC HL
$F481 23 INC HL
$F482 18 EA JR FIND_KEYWD
FK_QUOTE:
$F484 FE 22 CP '"'
$F486 20 09 JR NZ,FK_TOKEN
FK_STR:
$F488 23 INC HL
$F489 7E LD A,(HL)
$F48A FE 22 CP '"'
$F48C 20 FA JR NZ,FK_STR
$F48E 23 INC HL
$F48F 18 DD JR FIND_KEYWD
FK_TOKEN:
$F491 FE 0D CP $0D
$F493 28 E8 JR Z,FK_HDR
$F495 CD 02 16 CALL SKIPNUM
$F498 28 D4 JR Z,FIND_KEYWD
$F49A FE ED CP $ED ; GO SUB
$F49C 28 1B JR Z,FK_DIGIT
$F49E FE EC CP $EC ; GO TO
$F4A0 28 17 JR Z,FK_DIGIT
$F4A2 FE F7 CP $F7 ; RUN
$F4A4 28 13 JR Z,FK_DIGIT
$F4A6 FE F0 CP $F0 ; LIST
$F4A8 28 0F JR Z,FK_DIGIT
$F4AA FE E5 CP $E5 ; RESTORE
$F4AC 28 0B JR Z,FK_DIGIT
$F4AE FE E1 CP $E1 ; LLIST
$F4B0 28 07 JR Z,FK_DIGIT
$F4B2 FE CA CP $CA ; LINE
$F4B4 28 03 JR Z,FK_DIGIT
$F4B6 23 INC HL
$F4B7 18 B5 JR FIND_KEYWD
FK_DIGIT:
$F4B9 23 INC HL
$F4BA 7E LD A,(HL)
$F4BB FE 30 CP '0'
$F4BD 38 AF JR C,FIND_KEYWD ; keyword not followed by a digit
$F4BF FE 3A CP '9'+1
$F4C1 30 AB JR NC,FIND_KEYWD
$F4C3 C9 RET ; CY set, HL on the first digit
;=====================================================================
; NEXT_LINE ($F4C4) advance HL past the next $0D, skipping the
; 5-byte binary form of any embedded constant.
;=====================================================================
NEXT_LINE:
$F4C4 7E LD A,(HL)
NL_LOOP:
$F4C5 CD 02 16 CALL SKIPNUM
$F4C8 28 FB JR Z,NL_LOOP
$F4CA FE 0D CP $0D
$F4CC 23 INC HL
$F4CD 20 F5 JR NZ,NEXT_LINE
;=====================================================================
; IN_PROG ($F4CF) CY if HL is still below VARS (i.e. inside the
; program area). Preserves everything.
;=====================================================================
IN_PROG:
$F4CF E5 PUSH HL
$F4D0 D5 PUSH DE
$F4D1 ED 5B 4B 5C LD DE,(VARS)
$F4D5 A7 AND A
$F4D6 ED 52 SBC HL,DE
$F4D8 D1 POP DE
$F4D9 E1 POP HL
$F4DA C9 RET
;=====================================================================
; FIND_UNSORTED ($F4DB)
; Walk the program looking for a line whose number is not greater than
; its predecessor's. C = $00 tests "prev >= cur", C = $FF tests
; "prev > cur". Returns NC with HL on the offender, CY if the whole
; program is in ascending order.
;=====================================================================
FIND_UNSORTED:
$F4DB 2A 53 5C LD HL,(PROG)
$F4DE 11 00 00 LD DE,$0000 ; DE = previous line number
FU_LOOP:
$F4E1 D5 PUSH DE
$F4E2 56 LD D,(HL)
$F4E3 23 INC HL
$F4E4 5E LD E,(HL)
$F4E5 23 INC HL ; DE = this line number
$F4E6 E3 EX (SP),HL
$F4E7 79 LD A,C
$F4E8 87 ADD A,A ; carry := bit 7 of C
$F4E9 ED 52 SBC HL,DE
$F4EB E1 POP HL
$F4EC D0 RET NC ; out of order - HL -> length word
$F4ED 23 INC HL
$F4EE 23 INC HL
$F4EF CD C4 F4 CALL NEXT_LINE
$F4F2 38 ED JR C,FU_LOOP
$F4F4 37 SCF
$F4F5 C9 RET ; all in order
;=====================================================================
; CHK_ORDER ($F4F6) used by R
; If the renumber left any line out of order, undo it (swap the old
; numbers back out of the length fields), rebuild the lengths and
; report "Lines would Overlap".
;=====================================================================
CHK_ORDER:
$F4F6 AF XOR A
$F4F7 4F LD C,A
$F4F8 CD DB F4 CALL FIND_UNSORTED
$F4FB D8 RET C ; fine - carry on
$F4FC 2A 53 5C LD HL,(PROG)
CO_UNDO:
$F4FF 23 INC HL
$F500 23 INC HL
$F501 4E LD C,(HL) ; old number out of the length field
$F502 23 INC HL
$F503 46 LD B,(HL)
$F504 2B DEC HL
$F505 2B DEC HL
$F506 2B DEC HL
$F507 70 LD (HL),B ; put it back in the number field
$F508 23 INC HL
$F509 71 LD (HL),C
$F50A 23 INC HL
$F50B 23 INC HL
$F50C 23 INC HL
$F50D CD C4 F4 CALL NEXT_LINE
$F510 38 ED JR C,CO_UNDO
$F512 CD 52 F4 CALL REBUILD
$F515 CD 4A EF CALL REPORT
$F518 05 DEFB 5 ; "Lines would Overlap"
;=====================================================================
; COMMAND Z — Line Sort ($F519)
; Repeatedly take the first out-of-order line and move it, whole, to
; where FIND_L says it belongs. Also the tail of M (Move Lines).
;=====================================================================
CMD_Z:
$F519 0E FF LD C,$FF
$F51B CD DB F4 CALL FIND_UNSORTED
$F51E D8 RET C ; sorted
$F51F 4E LD C,(HL) ; BC = line body length
$F520 23 INC HL
$F521 46 LD B,(HL)
$F522 2B DEC HL
$F523 2B DEC HL
$F524 2B DEC HL ; HL -> start of the line
$F525 03 INC BC ; + the 4 header bytes
$F526 03 INC BC
$F527 03 INC BC
$F528 03 INC BC
$F529 E5 PUSH HL
$F52A C5 PUSH BC
$F52B EB EX DE,HL
$F52C CD D6 16 CALL FIND_L ; where does it belong?
$F52F C1 POP BC
$F530 E5 PUSH HL
$F531 C5 PUSH BC
$F532 CD BB 12 CALL INSERT ; open a gap there
$F535 C1 POP BC
$F536 D1 POP DE
$F537 E1 POP HL
$F538 09 ADD HL,BC ; the source moved up by BC
$F539 E5 PUSH HL
$F53A C5 PUSH BC
$F53B ED B0 LDIR ; copy the line into the gap
$F53D C1 POP BC
$F53E E1 POP HL
$F53F CD 50 17 CALL DELREC ; remove the original
$F542 18 D5 JR CMD_Z
;=====================================================================
; CHK_ROOM ($F544) used by M and C
; Count the lines in the block, multiply by the increment and make
; sure the renumbered block will fit in the gap at the destination.
;=====================================================================
CHK_ROOM:
$F544 2A CB EC LD HL,(P_START)
$F547 CD D6 16 CALL FIND_L
$F54A 11 00 00 LD DE,$0000 ; DE = line count
CR_COUNT:
$F54D 46 LD B,(HL)
$F54E 23 INC HL
$F54F 4E LD C,(HL)
$F550 23 INC HL
$F551 E5 PUSH HL
$F552 2A CD EC LD HL,(P_FINISH)
$F555 A7 AND A
$F556 ED 42 SBC HL,BC
$F558 E1 POP HL
$F559 38 0A JR C,CR_SIZE
$F55B 28 08 JR Z,CR_SIZE
$F55D 13 INC DE
$F55E 23 INC HL
$F55F 23 INC HL
$F560 CD C4 F4 CALL NEXT_LINE
$F563 18 E8 JR CR_COUNT
CR_SIZE:
$F565 2A D1 EC LD HL,(P_INCR)
$F568 CD 68 34 CALL MULT ; HL = lines * increment
$F56B 38 16 JR C,CR_BAD ; overflow
CR_FIT:
$F56D E5 PUSH HL
$F56E 2A CF EC LD HL,(P_DEST)
$F571 E5 PUSH HL
$F572 CD D6 16 CALL FIND_L
$F575 28 0C JR Z,CR_BAD ; that line already exists
$F577 56 LD D,(HL)
$F578 23 INC HL
$F579 5E LD E,(HL) ; DE = the next existing number
$F57A E1 POP HL
$F57B EB EX DE,HL
$F57C A7 AND A
$F57D ED 52 SBC HL,DE ; gap available
$F57F C1 POP BC
$F580 ED 42 SBC HL,BC ; gap needed
$F582 D0 RET NC
CR_BAD:
$F583 CD 4A EF CALL REPORT
$F586 06 DEFB 6 ; "No Room at Destination"
;=====================================================================
; CHK_OUTSIDE ($F587) used by C
; Refuse a destination that falls inside the source block.
;=====================================================================
CHK_OUTSIDE:
$F587 2A CB EC LD HL,(P_START)
$F58A ED 5B CF EC LD DE,(P_DEST)
$F58E A7 AND A
$F58F ED 52 SBC HL,DE
$F591 D0 RET NC ; dest below the block - fine
$F592 2A CD EC LD HL,(P_FINISH)
$F595 ED 52 SBC HL,DE
$F597 D8 RET C ; dest above the block - fine
$F598 18 E9 JR CR_BAD
;=====================================================================
; COMMAND C — Copy Lines ($F59A)
; Copies the block, then renumbers *only the copy* by temporarily
; faking PROG and VARS around it so RENUM_RUN/FIX_REFS see nothing
; else.
;=====================================================================
CMD_C:
$F59A CD 8F ED CALL SCRIPT_CLS
$F59D DEFB $0D
$F59E DEFB $CB ; MSG 11 "COPY"
$F59F DEFB $19
$F5A0 CD 39 F3 CALL ASK_BLOCK
$F5A3 CD 87 F5 CALL CHK_OUTSIDE
$F5A6 CD 44 F5 CALL CHK_ROOM
$F5A9 2A CB EC LD HL,(P_START)
$F5AC CD D6 16 CALL FIND_L
$F5AF E5 PUSH HL
$F5B0 2A CD EC LD HL,(P_FINISH)
$F5B3 CD D6 16 CALL FIND_L
$F5B6 D1 POP DE
$F5B7 ED 52 SBC HL,DE ; HL = block length in bytes
$F5B9 28 51 JR Z,CC_ZERO
$F5BB E5 PUSH HL
$F5BC D5 PUSH DE
$F5BD 2A CF EC LD HL,(P_DEST)
$F5C0 CD D6 16 CALL FIND_L
$F5C3 D1 POP DE
$F5C4 ED 52 SBC HL,DE
$F5C6 19 ADD HL,DE
$F5C7 C1 POP BC ; BC = block length
$F5C8 F5 PUSH AF
$F5C9 C5 PUSH BC
$F5CA D5 PUSH DE
$F5CB E5 PUSH HL
$F5CC CD BB 12 CALL INSERT ; open the gap
$F5CF D1 POP DE
$F5D0 E1 POP HL
$F5D1 C1 POP BC
$F5D2 F1 POP AF
$F5D3 30 01 JR NC,CC_COPY
$F5D5 09 ADD HL,BC ; source moved up
CC_COPY:
$F5D6 E5 PUSH HL
$F5D7 2A 53 5C LD HL,(PROG)
$F5DA E3 EX (SP),HL ; save the real PROG
$F5DB ED 53 53 5C LD (PROG),DE ; PROG := the copy
$F5DF ED B0 LDIR
$F5E1 2A 4B 5C LD HL,(VARS)
$F5E4 E5 PUSH HL ; save the real VARS
$F5E5 D5 PUSH DE
$F5E6 ED 53 4B 5C LD (VARS),DE ; VARS := end of the copy
$F5EA ED 53 D3 EC LD (P_WORK1),DE
$F5EE ED 5B CF EC LD DE,(P_DEST)
$F5F2 2A 53 5C LD HL,(PROG)
$F5F5 CD 99 F3 CALL RENUM_RUN ; number the copy
$F5F8 CD BB F3 CALL FIX_REFS ; and fix its internal jumps
$F5FB D1 POP DE
$F5FC 2A 4B 5C LD HL,(VARS)
$F5FF A7 AND A
$F600 ED 52 SBC HL,DE
$F602 C1 POP BC ; the real VARS
$F603 09 ADD HL,BC
$F604 22 4B 5C LD (VARS),HL ; restore, grown by the copy
$F607 E1 POP HL
$F608 22 53 5C LD (PROG),HL ; restore PROG
$F60B C9 RET
CC_ZERO:
$F60C CD 4A EF CALL REPORT
$F60F 07 DEFB 7 ; "Zero Block"
;=====================================================================
; COMMAND D — Delete lines ($F610)
;=====================================================================
CMD_D:
$F610 CD 8F ED CALL SCRIPT_CLS
$F613 DEFB $0D
$F614 DEFB $C9,$CD,$CE,$CF ; " DELETE BLOCK OF PROGRAM"
$F618 DEFB $FE
$F619 DEFB $C1,$80,$13,$1A,$14 ; " START ADDRESS: " -> P_START
$F61E DEFB $FE
$F61F DEFB $C2,$80,$13,$1B,$1C,$14 ; " FINISH ADDRESS: " -> P_FINISH,P_DEST
$F625 DEFB $18,$17 ; validate
$F627 DEFB $00 ; "EXECUTE?"
$F628 2A CB EC LD HL,(P_START)
$F62B CD D6 16 CALL FIND_L
$F62E E5 PUSH HL
$F62F 2A CD EC LD HL,(P_FINISH)
$F632 23 INC HL ; the range is inclusive
$F633 CD D6 16 CALL FIND_L
$F636 D1 POP DE
$F637 ED 52 SBC HL,DE
$F639 28 D1 JR Z,CC_ZERO ; nothing in range
$F63B 19 ADD HL,DE
$F63C C3 4D 17 JP DEL_DE
;=====================================================================
; COMMAND E — REM Create ($F63F)
; Builds a REM line of a chosen length filled with a chosen character:
; the standard way of reserving space inside a BASIC program for
; machine code.
;=====================================================================
CMD_E:
$F63F CD 8F ED CALL SCRIPT_CLS
$F642 DEFB $0D
$F643 DEFB $E3,$DB,$C7 ; " CREATE REM LINE"
$F646 DEFB $FE
$F647 DEFB $C7,$88 ; " LINE NUMBER: "
$F649 DEFB $13,$1B,$1C,$14 ; -> P_FINISH and P_DEST
$F64D DEFB $17 ; <= 9996
$F64E DEFB $FE
$F64F DEFB $AC ; " LENGTH: "
$F650 DEFB $13,$1D,$14,$15 ; -> P_INCR, must be non-zero
$F654 DEFB $FE
$F655 DEFB $A4 ; " SYMBOL: "
$F656 DEFB $11,$00,$12,$00 ; -> string buffer 0
$F65A DEFB $00 ; "EXECUTE?"
$F65B ED 4B D1 EC LD BC,(P_INCR) ; requested body length
$F65F 03 INC BC ; + REM token
$F660 03 INC BC ; + CR
$F661 C5 PUSH BC
$F662 03 INC BC ; + the 4 header bytes
$F663 03 INC BC
$F664 03 INC BC
$F665 03 INC BC
$F666 21 06 00 LD HL,$0006
$F669 ED 42 SBC HL,BC
$F66B D2 E2 ED JP NC,$EDE2 ; too short -> "Zero not Allowed"
$F66E 2A CF EC LD HL,(P_DEST)
$F671 E5 PUSH HL
$F672 C5 PUSH BC
$F673 CD D6 16 CALL FIND_L
$F676 C1 POP BC
$F677 CA 83 F5 JP Z,CR_BAD ; that line already exists
$F67A CD BB 12 CALL INSERT
$F67D 23 INC HL
$F67E D1 POP DE
$F67F 72 LD (HL),D ; line number, big-endian
$F680 23 INC HL
$F681 73 LD (HL),E
$F682 23 INC HL
$F683 C1 POP BC
$F684 71 LD (HL),C ; body length, little-endian
$F685 23 INC HL
$F686 70 LD (HL),B
$F687 23 INC HL
$F688 36 EA LD (HL),$EA ; REM
$F68A ED 5B D9 EC LD DE,(STR0) ; E = the fill character
$F68E 0B DEC BC ; discount the REM token ...
$F68F 0B DEC BC ; ... and the closing CR
CE_FILL:
$F690 0B DEC BC
$F691 23 INC HL
$F692 73 LD (HL),E
$F693 78 LD A,B
$F694 B1 OR C
$F695 20 F9 JR NZ,CE_FILL
$F697 23 INC HL
$F698 36 0D LD (HL),$0D
$F69A C9 RET
;---------------------------------------------------------------------
; $F69B-$F6AF 21 spare bytes (all $00)
;---------------------------------------------------------------------
$F69B DEFS 21,$00
;=====================================================================
; COMMAND U — UDGs to DATA ($F6B0)
; Sets START/FINISH to cover n user-defined graphics (8 bytes each)
; and then falls through into the B command's generator.
;=====================================================================
CMD_U:
$F6B0 CD 8F ED CALL SCRIPT_CLS
$F6B3 DEFB $0D
$F6B4 DEFB $D2,$D3,$D4 ; " UDGs TO DATA"
$F6B7 DEFB $FE
$F6B8 DEFB $C8,$CE,$92 ; " NUMBER OF UDGs: "
$F6BB DEFB $13,$1F,$1D,$14,$15 ; -> P_WORK2 and P_INCR
$F6C0 DEFB $FE
$F6C1 DEFB $C3,$C7,$88 ; " 1st LINE NUMBER: "
$F6C4 DEFB $13,$1B,$1C,$14 ; -> P_FINISH and P_DEST
$F6C8 DEFB $17,$16 ; validate
$F6CA DEFB $19 ; resume below
$F6CB 2A D5 EC LD HL,(P_WORK2)
$F6CE 3E 15 LD A,21 ; there are only 21 UDGs
$F6D0 95 SUB L
$F6D1 DA 70 EE JP C,$EE70 ; more than 21 -> "Range Error"
$F6D4 21 08 00 LD HL,$0008
$F6D7 22 D1 EC LD (P_INCR),HL ; 8 bytes per DATA line
$F6DA 2A 7B 5C LD HL,(UDG)
$F6DD 22 CB EC LD (P_START),HL
$F6E0 EB EX DE,HL
$F6E1 2A D5 EC LD HL,(P_WORK2)
$F6E4 29 ADD HL,HL ; *8
$F6E5 29 ADD HL,HL
$F6E6 29 ADD HL,HL
$F6E7 19 ADD HL,DE
$F6E8 2B DEC HL
$F6E9 22 CD EC LD (P_FINISH),HL
$F6EC 18 32 JR BD_ASK ; join the B command
;=====================================================================
; COMMAND B — Bytes to DATA ($F6EE)
; Turns a block of memory into a series of DATA lines, either decimal
; or as quoted hex pairs.
;=====================================================================
CMD_B:
$F6EE CD 8F ED CALL SCRIPT_CLS
$F6F1 DEFB $0D
$F6F2 DEFB $D0,$D1,$D3,$D4 ; " MACHINE CODE TO DATA"
$F6F6 DEFB $FE
$F6F7 DEFB $C1,$80,$13,$1A,$14 ; " START ADDRESS: " -> P_START
$F6FC DEFB $FE
$F6FD DEFB $C2,$80,$13,$1B,$14 ; " FINISH ADDRESS: " -> P_FINISH
$F702 DEFB $FE
$F703 DEFB $18 ; start <= finish
$F704 DEFB $C3,$C7,$88 ; " 1st LINE NUMBER: "
$F707 DEFB $13,$1C,$14 ; -> P_DEST
$F70A DEFB $FE
$F70B DEFB $E5,$E6,$87 ; " BYTES PER LINE: "
$F70E DEFB $13,$1D,$14 ; -> P_INCR
$F711 DEFB $15,$16 ; non-zero, <= 100
$F713 DEFB $19 ; resume below
$F714 2A CF EC LD HL,(P_DEST)
$F717 11 0C 27 LD DE,9996
$F71A A7 AND A
$F71B ED 52 SBC HL,DE
$F71D D2 96 EE JP NC,V_BAD ; "Invalid Line Number"
BD_ASK:
$F720 CD 92 ED CALL SCRIPT_FE
$F723 DEFB $FE
$F724 DEFB $DF ; MSG 31 "DEC"
$F725 DEFM " OR"
$F728 DEFB $A0 ; MSG 32 "HEX" + ": "
$F729 DEFB $11,$00,$12,$00 ; answer -> string buffer 0
$F72D DEFB $00 ; "EXECUTE?"
; How many DATA lines will there be?
$F72E 2A CD EC LD HL,(P_FINISH)
$F731 23 INC HL
$F732 ED 5B CB EC LD DE,(P_START)
$F736 AF XOR A
$F737 ED 52 SBC HL,DE ; HL = byte count
$F739 ED 5B D1 EC LD DE,(P_INCR) ; bytes per line
$F73D 47 LD B,A
$F73E 4F LD C,A
BD_COUNT:
$F73F 03 INC BC
$F740 ED 52 SBC HL,DE
$F742 30 FB JR NC,BD_COUNT
$F744 60 LD H,B
$F745 69 LD L,C ; HL = number of DATA lines
$F746 CD 6D F5 CALL CR_FIT ; is there room at the destination?
; Work out the worst-case text length of one DATA line.
$F749 3A D9 EC LD A,(STR0)
$F74C E6 DF AND $DF
$F74E 2A D1 EC LD HL,(P_INCR)
$F751 FE 44 CP 'D'
$F753 28 0F JR Z,BD_DEC
$F755 FE 48 CP 'H'
$F757 28 04 JR Z,BD_HEX
$F759 CD 4A EF CALL REPORT
$F75C 01 DEFB 1 ; "Range Error"
BD_HEX:
$F75D 11 13 00 LD DE,$0013
$F760 29 ADD HL,HL ; 2n + 19
$F761 19 ADD HL,DE
$F762 18 0E JR BD_SIZE
BD_DEC:
$F764 2A D1 EC LD HL,(P_INCR)
$F767 4D LD C,L
$F768 44 LD B,H
$F769 29 ADD HL,HL ; 10n + 5
$F76A 29 ADD HL,HL
$F76B 09 ADD HL,BC
$F76C 29 ADD HL,HL
$F76D 23 INC HL
$F76E 23 INC HL
$F76F 23 INC HL
$F770 23 INC HL
$F771 23 INC HL
BD_SIZE:
$F772 22 D3 EC LD (P_WORK1),HL ; bytes needed per line
$F775 2A CF EC LD HL,(P_DEST)
$F778 CD D6 16 CALL FIND_L
$F77B 22 5B 5C LD (KCUR),HL ; stream $FF appends at KCUR
$F77E 3E FF LD A,$FF
$F780 CD 30 12 CALL SELECT
$F783 ED 5B CB EC LD DE,(P_START) ; DE walks the source bytes
BD_LOOP:
$F787 2A CD EC LD HL,(P_FINISH)
$F78A A7 AND A
$F78B ED 52 SBC HL,DE
$F78D D8 RET C ; all done
$F78E CD 9D F7 CALL BD_LINE
$F791 7A LD A,D
$F792 B3 OR E
$F793 C8 RET Z ; wrapped past $FFFF
$F794 2A CF EC LD HL,(P_DEST)
$F797 23 INC HL
$F798 22 CF EC LD (P_DEST),HL ; next line number
$F79B 18 EA JR BD_LOOP
;---------------------------------------------------------------------
; BD_LINE ($F79D) emit one complete DATA line at KCUR
;---------------------------------------------------------------------
BD_LINE:
$F79D ED 4B D3 EC LD BC,(P_WORK1)
$F7A1 D5 PUSH DE
$F7A2 CD BB 1F CALL CHK_SZ ; error 4 if RAM is short
$F7A5 D1 POP DE
$F7A6 2A 5B 5C LD HL,(KCUR)
$F7A9 E5 PUSH HL ; remember the line start
$F7AA 2A CF EC LD HL,(P_DEST)
$F7AD 7C LD A,H
$F7AE D7 RST $10 ; line number, big-endian
$F7AF 7D LD A,L
$F7B0 D7 RST $10
$F7B1 D7 RST $10 ; two placeholder length bytes
$F7B2 D7 RST $10
$F7B3 3E E4 LD A,$E4 ; DATA
$F7B5 D7 RST $10
$F7B6 2A D1 EC LD HL,(P_INCR) ; HL counts bytes left on this line
$F7B9 3A D9 EC LD A,(STR0)
$F7BC E6 DF AND $DF
$F7BE FE 44 CP 'D'
$F7C0 28 30 JR Z,BD_DPUT
; Hex form: one quoted string of two-digit pairs.
$F7C2 01 00 00 LD BC,$0000
$F7C5 3E 22 LD A,'"'
$F7C7 D7 RST $10
BD_HPUT:
$F7C8 1A LD A,(DE)
$F7C9 E5 PUSH HL
$F7CA 26 00 LD H,$00
$F7CC 6F LD L,A
$F7CD 09 ADD HL,BC ; running checksum
$F7CE 44 LD B,H
$F7CF 4D LD C,L
$F7D0 E1 POP HL
$F7D1 D5 PUSH DE
$F7D2 F5 PUSH AF
$F7D3 CD 9E EC CALL PRHIGH
$F7D6 F1 POP AF
$F7D7 CD A2 EC CALL PRLOW
$F7DA D1 POP DE
$F7DB 2B DEC HL
$F7DC 7C LD A,H
$F7DD B5 OR L
$F7DE 13 INC DE
$F7DF 28 04 JR Z,BD_HEND
$F7E1 7A LD A,D
$F7E2 B3 OR E
$F7E3 20 E3 JR NZ,BD_HPUT
BD_HEND:
$F7E5 3E 22 LD A,'"'
$F7E7 D7 RST $10
$F7E8 3E 2C LD A,','
$F7EA D7 RST $10
$F7EB 1B DEC DE
$F7EC 23 INC HL
$F7ED 18 07 JR BD_TAIL
; Decimal form: comma-separated values.
BD_DSEP:
$F7EF 3E 2C LD A,','
$F7F1 D7 RST $10
BD_DPUT:
$F7F2 1A LD A,(DE)
$F7F3 4F LD C,A
$F7F4 06 00 LD B,$00
BD_TAIL:
$F7F6 C5 PUSH BC
$F7F7 CD C4 FE CALL PRBC ; the ASCII digits
$F7FA C1 POP BC
$F7FB 3E 0E LD A,$0E ; then BASIC's hidden binary form
$F7FD D7 RST $10
$F7FE AF XOR A
$F7FF D7 RST $10 ; exponent 0 = small integer
$F800 AF XOR A
$F801 D7 RST $10 ; sign
$F802 79 LD A,C
$F803 D7 RST $10 ; low byte
$F804 78 LD A,B
$F805 D7 RST $10 ; high byte
$F806 AF XOR A
$F807 D7 RST $10
$F808 2B DEC HL
$F809 7C LD A,H
$F80A B5 OR L
$F80B 13 INC DE
$F80C 28 04 JR Z,BD_EOL
$F80E 7A LD A,D
$F80F B3 OR E
$F810 20 DD JR NZ,BD_DSEP
BD_EOL:
$F812 3E 0D LD A,$0D
$F814 D7 RST $10
$F815 C1 POP BC ; BC = the line start
$F816 2A 5B 5C LD HL,(KCUR)
$F819 03 INC BC
$F81A 03 INC BC
$F81B 03 INC BC
$F81C 37 SCF
$F81D ED 42 SBC HL,BC ; HL = body length
$F81F 7C LD A,H
$F820 02 LD (BC),A ; fill in the placeholders
$F821 0B DEC BC
$F822 7D LD A,L
$F823 02 LD (BC),A
$F824 C9 RET
;=====================================================================
; COMMAND I — Information ($F825)
; A status page: free RAM, program length, variables length, user RAM
; and whether the interrupt vector has been diverted.
;=====================================================================
CMD_I:
$F825 FD CB 01 CE SET 1,(IY+$01) ; FLAGS bit 1 - suppress leading space
$F829 3E 02 LD A,$02
$F82B CD 30 12 CALL SELECT
$F82E FD CB 01 4E BIT 1,(IY+$01)
$F832 CC A6 08 CALL Z,K_CLS
$F835 3E 02 LD A,$02
$F837 CD 30 12 CALL SELECT
$F83A CD 97 ED CALL SCRIPT
$F83D DEFB $0D,$E8,$E9 ; " STATUS REPORT"
$F840 DEFB $FE,$EA,$AB ; " MEMORY LEFT: "
$F843 DEFB $19
$F844 2A B2 5C LD HL,(RAMTOP)
$F847 00 NOP
$F848 ED 5B 59 5C LD DE,(ELINE)
$F84C ED 52 SBC HL,DE
$F84E CD 97 ED CALL SCRIPT
$F851 DEFB $14,$E7 ; print it, then " bytes"
$F853 DEFB $FE,$CF,$AC ; " PROGRAM LENGTH: "
$F856 DEFB $19
$F857 2A 4B 5C LD HL,(VARS)
$F85A ED 5B 53 5C LD DE,(PROG)
$F85E A7 AND A
$F85F ED 52 SBC HL,DE
$F861 CD 97 ED CALL SCRIPT
$F864 DEFB $14,$E7
$F866 DEFB $FE,$ED,$AE ; " VARIABLE FILE: "
$F869 DEFB $19
$F86A 2A 59 5C LD HL,(ELINE)
$F86D ED 5B 4B 5C LD DE,(VARS)
$F871 A7 AND A
$F872 ED 52 SBC HL,DE
$F874 CD 97 ED CALL SCRIPT
$F877 DEFB $14,$E7
$F879 DEFB $FE,$AF ; " USER RAM: "
$F87B DEFB $19
$F87C 2A B2 5C LD HL,(RAMTOP)
$F87F ED 5B 53 5C LD DE,(PROG)
$F883 A7 AND A
$F884 ED 52 SBC HL,DE
$F886 CD 97 ED CALL SCRIPT
$F889 DEFB $14,$E7
$F88B DEFB $FE,$F0 ; " INTERRUPTS"
$F88D DEFB $19
$F88E ED 57 LD A,I
$F890 FE 3F CP $3F ; the ROM's own value
$F892 28 07 JR Z,CI_NORM
$F894 CD 97 ED CALL SCRIPT
$F897 DEFB $F2 ; " DIVERTED"
$F898 DEFB $19
$F899 18 05 JR CI_CHAN
CI_NORM:
$F89B CD 97 ED CALL SCRIPT
$F89E DEFB $F1 ; " NORMAL"
$F89F DEFB $19
CI_CHAN:
$F8A0 2A 51 5C LD HL,(CURCHL)
$F8A3 23 INC HL
$F8A4 23 INC HL
$F8A5 23 INC HL
$F8A6 23 INC HL
$F8A7 7E LD A,(HL)
$F8A8 FE 53 CP 'S'
$F8AA 28 02 JR Z,CI_UDG
$F8AC FE 50 CP 'P'
CI_UDG:
$F8AE CC BC F8 CALL Z,UDGRULER ; only worth it on screen/printer
$F8B1 CD 97 ED CALL SCRIPT
$F8B4 DEFB $FE,$7F,$F3,$0D ; " ©BOB MITCHELL 1985"
$F8B8 DEFB $19
$F8B9 C3 70 EC JP GETCMD ; straight back to the prompt
;---------------------------------------------------------------------
; UDGRULER ($F8BC) the letters A-U over the 21 UDG glyphs
;---------------------------------------------------------------------
UDGRULER:
$F8BC CD 97 ED CALL SCRIPT
$F8BF DEFB $FE,$92,$FE,$20 ; " UDGs: " <CR><CR> " "
$F8C3 DEFB $19
$F8C4 06 15 LD B,21
UR_LET:
$F8C6 3E 56 LD A,'U'+1
$F8C8 90 SUB B ; 'A'..'U'
$F8C9 D7 RST $10
$F8CA 10 FA DJNZ UR_LET
$F8CC 3E 0D LD A,$0D
$F8CE D7 RST $10
$F8CF 3E 20 LD A,$20
$F8D1 D7 RST $10
$F8D2 06 15 LD B,21
UR_UDG:
$F8D4 3E A5 LD A,$A5
$F8D6 90 SUB B ; $90..$A4 = the UDG characters
$F8D7 D7 RST $10
$F8D8 10 FA DJNZ UR_UDG
$F8DA 3E 0D LD A,$0D
$F8DC D7 RST $10
$F8DD C9 RET
;=====================================================================
; COMMAND V — List Variables ($F8DE)
; Walks the variables area printing name and value: numerics through
; the ROM's calculator print routine, strings and arrays by hand.
;=====================================================================
CMD_V:
$F8DE CD 8F ED CALL SCRIPT_CLS
$F8E1 DEFB $D6,$ED ; " LIST VARIABLE"
$F8E3 DEFM "S"
$F8E4 DEFB $FE ; <CR><CR>
$F8E5 DEFB $19
$F8E6 2A 4B 5C LD HL,(VARS)
$F8E9 E5 PUSH HL
CV_NEXT:
$F8EA E1 POP HL
$F8EB CD 20 17 CALL RECLEN ; DE = next variable
$F8EE D5 PUSH DE
$F8EF 7E LD A,(HL)
$F8F0 FE 80 CP $80 ; end-of-variables marker
$F8F2 20 03 JR NZ,CV_TYPE
$F8F4 D1 POP DE
$F8F5 18 C2 JR $F8B9 ; -> JP GETCMD
CV_TYPE:
$F8F7 CB 7F BIT 7,A
$F8F9 20 43 JR NZ,CV_LONG ; long name / array
$F8FB CB 6F BIT 5,A
$F8FD 28 1A JR Z,CV_STR
; simple numeric: name "=" value
$F8FF D7 RST $10
$F900 3E 3D LD A,'='
$F902 D7 RST $10
$F903 23 INC HL
$F904 ED 5B 65 5C LD DE,(STKEND)
$F908 01 05 00 LD BC,$0005
$F90B ED B0 LDIR ; push the value onto the fp stack
$F90D ED 53 65 5C LD (STKEND),DE
$F911 CD A1 31 CALL $31A1 ; OUTPUT - print it
$F914 3E 0D LD A,$0D
$F916 D7 RST $10
$F917 18 D1 JR CV_NEXT
CV_STR:
$F919 CB EF SET 5,A ; restore the letter
$F91B D7 RST $10
$F91C 3E 24 LD A,'$'
$F91E D7 RST $10
$F91F 3E 3D LD A,'='
$F921 D7 RST $10
$F922 3E 22 LD A,'"'
$F924 D7 RST $10
$F925 23 INC HL
$F926 4E LD C,(HL) ; BC = string length
$F927 23 INC HL
$F928 46 LD B,(HL)
CV_SLOOP:
$F929 23 INC HL
$F92A 78 LD A,B
$F92B B1 OR C
$F92C 0B DEC BC
$F92D 20 05 JR NZ,CV_SCHR
$F92F 3E 22 LD A,'"'
$F931 D7 RST $10
$F932 18 E0 JR $F914 ; CR, then the next variable
CV_SCHR:
$F934 7E LD A,(HL)
$F935 FE 20 CP $20
$F937 30 02 JR NC,CV_SPUT
$F939 3E 3F LD A,'?' ; control codes shown as "?"
CV_SPUT:
$F93B D7 RST $10
$F93C 18 EB JR CV_SLOOP
CV_LONG:
$F93E CB 77 BIT 6,A
$F940 20 11 JR NZ,CV_ARR2 ; array with a $ / long name
$F942 CB 6F BIT 5,A
$F944 28 15 JR Z,CV_ARRN ; numeric array
$F946 EE C0 XOR $C0 ; numeric array: recover the letter
$F948 D7 RST $10
$F949 23 INC HL
$F94A 7E LD A,(HL)
$F94B CB 7F BIT 7,A
$F94D 28 F9 JR Z,$F948
$F94F CB BF RES 7,A
$F951 18 AC JR $F8FF
CV_ARR2:
$F953 CB 6F BIT 5,A
$F955 28 09 JR Z,CV_ARRS2
$F957 E6 5F AND $5F
$F959 18 A4 JR $F8FF
CV_ARRN:
$F95B EE E0 XOR $E0
$F95D D7 RST $10
$F95E 18 06 JR CV_DIMS
CV_ARRS2:
$F960 EE A0 XOR $A0
$F962 D7 RST $10
$F963 3E 24 LD A,'$'
$F965 D7 RST $10
CV_DIMS:
$F966 3E 28 LD A,'('
$F968 D7 RST $10
$F969 23 INC HL
$F96A 23 INC HL
$F96B 23 INC HL
$F96C 46 LD B,(HL) ; number of dimensions
$F96D 18 03 JR CV_DIM1
CV_DIMN:
$F96F 3E 2C LD A,','
$F971 D7 RST $10
CV_DIM1:
$F972 23 INC HL
$F973 5E LD E,(HL)
$F974 23 INC HL
$F975 56 LD D,(HL)
$F976 C5 PUSH BC
$F977 E5 PUSH HL
$F978 EB EX DE,HL
$F979 CD AD EC CALL PRDEC ; print the dimension
$F97C E1 POP HL
$F97D C1 POP BC
$F97E 10 EF DJNZ CV_DIMN
$F980 3E 29 LD A,')'
$F982 D7 RST $10
$F983 18 8F JR $F914 ; CR, then the next variable
;=====================================================================
; COMMAND S — Search & List ($F985)
; Same scan as command A, but only reports the lines that match.
;=====================================================================
CMD_S:
$F985 CD 8F ED CALL SCRIPT_CLS
$F988 DEFB $0D
$F989 DEFB $D5,$20,$26,$D6 ; " SEARCH & LIST"
$F98D DEFB $FE
$F98E DEFB $C1,$80,$13,$1A,$14 ; " START ADDRESS: "
$F993 DEFB $FE
$F994 DEFB $C2,$80,$13,$1B,$1C,$14 ; " FINISH ADDRESS: "
$F99A DEFB $FE
$F99B DEFB $18,$17 ; validate
$F99D DEFB $9A ; " STRING: "
$F99E DEFB $11,$00,$12,$00 ; -> string buffer 0
$F9A2 DEFB $00 ; "EXECUTE?"
$F9A3 2A CB EC LD HL,(P_START)
$F9A6 CD D6 16 CALL FIND_L
CS_LINE:
$F9A9 CD 20 17 CALL RECLEN
$F9AC D5 PUSH DE ; next line
$F9AD E5 PUSH HL
$F9AE 56 LD D,(HL)
$F9AF 23 INC HL
$F9B0 5E LD E,(HL)
$F9B1 23 INC HL ; DE = line number
$F9B2 E5 PUSH HL
$F9B3 2A CD EC LD HL,(P_FINISH)
$F9B6 A7 AND A
$F9B7 ED 52 SBC HL,DE
$F9B9 E1 POP HL
$F9BA 30 03 JR NC,CS_SCAN
$F9BC C1 POP BC ; past the finish line
$F9BD C1 POP BC
$F9BE C9 RET
CS_SCAN:
$F9BF 23 INC HL
$F9C0 23 INC HL ; HL -> line text
$F9C1 11 D9 EC LD DE,STR0
$F9C4 ED 4B D7 EC LD BC,(STR0_LEN)
CS_CMP:
$F9C8 7E LD A,(HL)
$F9C9 FE 0D CP $0D
$F9CB 20 07 JR NZ,CS_TEST
$F9CD E1 POP HL ; end of line, no match
$F9CE E1 POP HL
$F9CF 18 D8 JR CS_LINE
CS_RETRY:
$F9D1 E1 POP HL ; mismatch - step on one character
$F9D2 18 EC JR CS_SCAN+1
CS_TEST:
$F9D4 E5 PUSH HL
$F9D5 7E LD A,(HL)
$F9D6 CD 02 16 CALL SKIPNUM
$F9D9 28 FB JR Z,$F9D6 ; skip the 5-byte number form
$F9DB 1A LD A,(DE)
$F9DC BE CP (HL)
$F9DD 20 F2 JR NZ,CS_RETRY
$F9DF 13 INC DE
$F9E0 23 INC HL
$F9E1 0B DEC BC
$F9E2 78 LD A,B
$F9E3 B1 OR C
$F9E4 20 EF JR NZ,$F9D5 ; keep comparing
$F9E6 E1 POP HL ; matched - list the line
$F9E7 E1 POP HL
$F9E8 CD A1 15 CALL PUT_SR
$F9EB D7 RST $10
$F9EC E1 POP HL
$F9ED 18 BA JR CS_LINE
;=====================================================================
; COMMAND F — REM Delete ($F9EF)
; Removes the machine-code payload from inside a REM line, leaving the
; line itself; the inverse of command E.
;=====================================================================
CMD_F:
$F9EF CD 8F ED CALL SCRIPT_CLS
$F9F2 DEFB $0D
$F9F3 DEFB $DB,$C9 ; " REM DELETE"
$F9F5 DEFB $FE
$F9F6 DEFB $C1,$80,$13,$1A,$14 ; " START ADDRESS: "
$F9FB DEFB $FE
$F9FC DEFB $C2,$80,$13,$1B,$1C,$14 ; " FINISH ADDRESS: "
$FA02 DEFB $FE
$FA03 DEFB $18,$17 ; validate
$FA05 DEFB $00 ; "EXECUTE?"
$FA06 2A CB EC LD HL,(P_START)
$FA09 CD D6 16 CALL FIND_L
$FA0C 2B DEC HL
CF_NEXT:
$FA0D 23 INC HL
CF_LINE:
$FA0E 22 D3 EC LD (P_WORK1),HL
$FA11 CD 20 17 CALL RECLEN
$FA14 ED 53 D5 EC LD (P_WORK2),DE
$FA18 56 LD D,(HL)
$FA19 23 INC HL
$FA1A 5E LD E,(HL)
$FA1B 23 INC HL
$FA1C E5 PUSH HL
$FA1D 2A CD EC LD HL,(P_FINISH)
$FA20 A7 AND A
$FA21 ED 52 SBC HL,DE
$FA23 E1 POP HL
$FA24 D8 RET C
$FA25 23 INC HL
CF_SKIP:
$FA26 23 INC HL
$FA27 7E LD A,(HL)
$FA28 FE 21 CP $21
$FA2A 38 FA JR C,CF_SKIP ; skip leading control bytes
$FA2C FE EA CP $EA ; REM as the first statement?
$FA2E 20 0C JR NZ,CF_COLON
$FA30 ED 5B D3 EC LD DE,(P_WORK1)
$FA34 2A D5 EC LD HL,(P_WORK2)
$FA37 CD 4D 17 CALL DEL_DE ; delete the whole line
$FA3A 18 D2 JR CF_LINE
; Otherwise look for a ":REM" outside quotes and cut from there.
CF_COLON:
$FA3C 0E 00 LD C,$00 ; C counts quote marks
CF_CHAR:
$FA3E 23 INC HL
$FA3F 7E LD A,(HL)
CF_NUM:
$FA40 CD 02 16 CALL SKIPNUM
$FA43 28 FB JR Z,CF_NUM
$FA45 FE 0D CP $0D
$FA47 28 C4 JR Z,CF_NEXT
$FA49 FE 22 CP '"'
$FA4B 20 01 JR NZ,CF_COL2
$FA4D 0C INC C
CF_COL2:
$FA4E FE 3A CP ':'
$FA50 20 EC JR NZ,CF_CHAR
$FA52 CB 41 BIT 0,C
$FA54 20 E8 JR NZ,CF_CHAR ; inside a string - ignore
$FA56 5D LD E,L
$FA57 54 LD D,H ; DE = the ":"
CF_SEEK:
$FA58 23 INC HL
$FA59 7E LD A,(HL)
$FA5A FE 0D CP $0D
$FA5C 28 AF JR Z,CF_NEXT
$FA5E FE 21 CP $21
$FA60 38 F6 JR C,CF_SEEK
$FA62 FE EA CP $EA ; REM
$FA64 EB EX DE,HL
$FA65 20 D7 JR NZ,CF_CHAR
$FA67 EB EX DE,HL
$FA68 2A D5 EC LD HL,(P_WORK2)
$FA6B 2B DEC HL
$FA6C CD 4D 17 CALL DEL_DE ; cut ":REM..." to end of line
$FA6F ED 5B D3 EC LD DE,(P_WORK1)
$FA73 13 INC DE
$FA74 13 INC DE
$FA75 13 INC DE
$FA76 A7 AND A
$FA77 ED 52 SBC HL,DE
$FA79 EB EX DE,HL
$FA7A 72 LD (HL),D ; rewrite the length word
$FA7B 2B DEC HL
$FA7C 73 LD (HL),E
$FA7D 2B DEC HL
$FA7E 2B DEC HL
$FA7F 18 8D JR CF_LINE
;=====================================================================
; COMMAND G — UDG Designer ($FA81)
; Edits one user-defined graphic as an 8x8 grid of block characters.
; The grid is drawn at screen address $406C (char row 3, column 12);
; the eight pixel rows are $406C, $416C ... $476C, so INC H steps a
; row. The editor reads and writes the screen directly and only
; copies the result into the UDG area when you press 9A..9U.
;=====================================================================
CMD_G:
$FA81 CD 8F ED CALL SCRIPT_CLS
$FA84 DEFB $0D
$FA85 DEFB $F4,$D2 ; " DESIGN UDGs"
$FA87 DEFB $FE
$FA88 DEFB $B5 ; " CHARACTER: "
$FA89 DEFB $11,$00,$12,$00 ; -> string buffer 0
$FA8D DEFB $00 ; "EXECUTE?"
$FA8E 3E FE LD A,$FE
$FA90 CD 30 12 CALL SELECT
$FA93 3E 16 LD A,$16 ; AT
$FA95 D7 RST $10
$FA96 3E 05 LD A,$05 ; row 5
$FA98 D7 RST $10
$FA99 AF XOR A ; column 0
$FA9A D7 RST $10
$FA9B CD 97 ED CALL SCRIPT
$FA9E DEFB $F6,$C7,$F8,$F9 ; " USE LINE COLUMN I/O (on/off)"
$FAA2 DEFB $19
$FAA3 3E FE LD A,$FE
$FAA5 CD 30 12 CALL SELECT
$FAA8 11 DB FB LD DE,FUNCTAB
$FAAB AF XOR A
$FAAC CD 3F 07 CALL PUTMES ; the FUNCTIONS panel
;---------------------------------------------------------------------
; Redraw the grid and wait for a command.
;---------------------------------------------------------------------
CG_DRAW:
$FAAF CD 66 FB CALL CG_AT70
$FAB2 06 08 LD B,$08
CG_ROW:
$FAB4 C5 PUSH BC
$FAB5 3E 20 LD A,$20
$FAB7 D7 RST $10
$FAB8 3E 09 LD A,$09
$FABA 90 SUB B
$FABB 5F LD E,A ; E = row 1..8
$FABC C6 30 ADD A,'0'
$FABE D7 RST $10
$FABF 21 6C 3F LD HL,$3F6C
$FAC2 7B LD A,E
$FAC3 84 ADD A,H
$FAC4 67 LD H,A ; HL = $406C + row*256
$FAC5 4E LD C,(HL)
$FAC6 06 08 LD B,$08
CG_PIX:
$FAC8 CB 11 RL C
$FACA 3E 20 LD A,$20
$FACC 30 02 JR NC,CG_PUT
$FACE 3E 8F LD A,$8F ; solid block graphic
CG_PUT:
$FAD0 D7 RST $10
$FAD1 10 F5 DJNZ CG_PIX
$FAD3 C1 POP BC
$FAD4 7B LD A,E
$FAD5 C6 30 ADD A,'0'
$FAD7 D7 RST $10
$FAD8 3E 0D LD A,$0D
$FADA D7 RST $10
$FADB 10 D7 DJNZ CG_ROW
$FADD CD 6E FB CALL CG_ABC
$FAE0 CD 97 ED CALL SCRIPT
$FAE3 DEFB $0D
$FAE4 DEFM " 0 ="
$FAE8 DEFB $FD ; MSG 61 "RESTART"
$FAE9 DEFB $FE,$20
$FAEB DEFB $19
$FAEC 3E FE LD A,$FE
$FAEE CD 30 12 CALL SELECT
$FAF1 CD C4 F8 CALL $F8C4 ; the A-U column letters
CG_CMD:
$FAF4 01 04 00 LD BC,$0004
$FAF7 21 D7 EC LD HL,STR0_LEN
$FAFA E5 PUSH HL
$FAFB CD 9A EE CALL INSTR
$FAFE D1 POP DE
$FAFF 13 INC DE
$FB00 13 INC DE
$FB01 1A LD A,(DE) ; first character
$FB02 CD D9 30 CALL DIGITQ
$FB05 38 ED JR C,CG_CMD ; must start with a digit
$FB07 D6 30 SUB '0'
$FB09 CA 81 FA JP Z,CMD_G ; "0" - restart
$FB0C FE 09 CP $09
$FB0E 28 31 JR Z,CG_FUNC ; "9" - a function
$FB10 2E 6C LD L,$6C ; 1..8 = a pixel row
$FB12 C6 3F ADD A,$3F
$FB14 67 LD H,A
$FB15 13 INC DE
CG_COL:
$FB16 1A LD A,(DE)
$FB17 E6 DF AND $DF
$FB19 FE 41 CP 'A'
$FB1B 38 D7 JR C,CG_CMD
$FB1D FE 49 CP 'H'+1
$FB1F 30 D3 JR NC,CG_CMD
$FB21 D6 40 SUB '@' ; 1..8
$FB23 47 LD B,A
$FB24 AF XOR A
CG_MASK:
$FB25 37 SCF
CG_MSK2:
$FB26 1F RRA ; build the single-bit mask
$FB27 10 FD DJNZ CG_MSK2
$FB29 4F LD C,A
$FB2A 13 INC DE
$FB2B 1A LD A,(DE)
$FB2C E6 DF AND $DF
$FB2E FE 49 CP 'I'
$FB30 28 09 JR Z,CG_SET
$FB32 FE 4F CP 'O'
$FB34 20 BE JR NZ,CG_CMD
$FB36 79 LD A,C
$FB37 2F CPL
$FB38 A6 AND (HL) ; O = pixel off
$FB39 18 02 JR CG_STORE
CG_SET:
$FB3B 79 LD A,C
$FB3C B6 OR (HL) ; I = pixel on
CG_STORE:
$FB3D 77 LD (HL),A
$FB3E C3 AF FA JP CG_DRAW
;---------------------------------------------------------------------
; 9A..9U store the grid into UDG n; 9V..9Z transform it
;---------------------------------------------------------------------
CG_FUNC:
$FB41 13 INC DE
$FB42 1A LD A,(DE)
$FB43 E6 DF AND $DF
$FB45 FE 56 CP 'V'
$FB47 30 32 JR NC,CG_XFORM
$FB49 D6 41 SUB 'A'
$FB4B 38 A7 JR C,CG_CMD
$FB4D 87 ADD A,A ; *8
$FB4E 87 ADD A,A
$FB4F 87 ADD A,A
$FB50 5F LD E,A
$FB51 16 00 LD D,$00
$FB53 2A 7B 5C LD HL,(UDG)
$FB56 19 ADD HL,DE
$FB57 EB EX DE,HL
$FB58 21 6C 40 LD HL,$406C
$FB5B 06 08 LD B,$08
CG_SAVE:
$FB5D 7E LD A,(HL)
$FB5E 12 LD (DE),A
$FB5F 24 INC H
$FB60 13 INC DE
$FB61 10 FA DJNZ CG_SAVE
$FB63 C3 81 FA JP CMD_G
CG_AT70:
$FB66 3E 16 LD A,$16 ; AT 7,0
$FB68 D7 RST $10
$FB69 3E 07 LD A,$07
$FB6B D7 RST $10
$FB6C AF XOR A
$FB6D D7 RST $10
CG_ABC:
$FB6E CD 97 ED CALL SCRIPT
$FB71 DEFB $20,$FC,$0D ; " ABCDEFGH"
$FB74 DEFB $19
$FB75 3E FE LD A,$FE
$FB77 CD 30 12 CALL SELECT
$FB7A C9 RET
CG_XFORM:
$FB7B 21 AF FA LD HL,CG_DRAW
$FB7E E5 PUSH HL ; every transform returns to the redraw
$FB7F FE 5A CP 'Z'
$FB81 28 4C JR Z,CG_RESET
$FB83 D0 RET NC
$FB84 21 6C 40 LD HL,$406C
$FB87 06 08 LD B,$08
$FB89 FE 59 CP 'Y'
$FB8B 28 2B JR Z,CG_ROT
$FB8D FE 58 CP 'X'
$FB8F 28 18 JR Z,CG_FLIPV
$FB91 FE 57 CP 'W'
$FB93 28 07 JR Z,CG_FLIPH
CG_INV: ; 9V INVERSE
$FB95 7E LD A,(HL)
$FB96 2F CPL
$FB97 77 LD (HL),A
$FB98 24 INC H
$FB99 10 FA DJNZ CG_INV
$FB9B C9 RET
CG_FLIPH: ; 9W LEFT-RIGHT
$FB9C 0E 08 LD C,$08
CG_FH2:
$FB9E CB 16 RL (HL)
$FBA0 1F RRA ; shift bits out one way, in the other
$FBA1 0D DEC C
$FBA2 20 FA JR NZ,CG_FH2
$FBA4 77 LD (HL),A
$FBA5 24 INC H
$FBA6 10 F4 DJNZ CG_FLIPH
$FBA8 C9 RET
CG_FLIPV: ; 9X UP-DOWN
$FBA9 06 04 LD B,$04
$FBAB 11 6C 47 LD DE,$476C
CG_FV2:
$FBAE 4E LD C,(HL)
$FBAF 1A LD A,(DE)
$FBB0 77 LD (HL),A
$FBB1 79 LD A,C
$FBB2 12 LD (DE),A
$FBB3 24 INC H
$FBB4 15 DEC D
$FBB5 10 F7 DJNZ CG_FV2
$FBB7 C9 RET
CG_ROT: ; 9Y ROTATE (transpose)
$FBB8 11 02 48 LD DE,$4802
CG_ROT1:
$FBBB D5 PUSH DE
$FBBC 0E 08 LD C,$08
CG_ROT2:
$FBBE 1A LD A,(DE)
$FBBF 87 ADD A,A
$FBC0 CB 1E RR (HL)
$FBC2 3E 20 LD A,$20
$FBC4 83 ADD A,E
$FBC5 5F LD E,A
$FBC6 0D DEC C
$FBC7 20 F5 JR NZ,CG_ROT2
$FBC9 D1 POP DE
$FBCA 1C INC E
$FBCB 24 INC H
$FBCC 10 ED DJNZ CG_ROT1
$FBCE C9 RET
CG_RESET: ; 9Z RESET UDGs
$FBCF 21 08 3E LD HL,$3E08 ; ROM character set, 'A'
$FBD2 ED 5B 7B 5C LD DE,(UDG)
$FBD6 01 A8 00 LD BC,$00A8 ; 21 characters * 8 rows
$FBD9 ED B0 LDIR
$FBDB C9 RET
; ^ doubles as FUNCTAB's dummy terminator
;---------------------------------------------------------------------
; FUNCTAB ($FBDB) the one-entry table for the FUNCTIONS panel.
; $16 r c = AT, $06 = comma tab.
;---------------------------------------------------------------------
FUNCTAB:
$FBDC DEFB $16,$07,$10 ; AT 7,16
$FBDF DEFM "FUNCTIONS"
$FBE8 DEFB $0D,$0D,$06
$FBEB DEFM "9A-9U ENTER UDG"
$FBFA DEFB $0D,$0D,$06
$FBFD DEFM "9V INVERSE"
$FC07 DEFB $0D,$06
$FC09 DEFM "9W LEFT-RIGHT"
$FC16 DEFB $0D,$06
$FC18 DEFM "9X UP-DOWN"
$FC22 DEFB $0D,$06
$FC24 DEFM "9Y ROTATE"
$FC2D DEFB $0D,$06
$FC2F DEFM "9Z RESET UDG"
$FC3B DEFB $D3 ; 'S'+$80 terminator
;=====================================================================
; COMMAND P — Compactor ($FC3C)
; Strips spaces and control characters that are outside quotes, and
; skips REM lines entirely.
;=====================================================================
CMD_P:
$FC3C CD 8F ED CALL SCRIPT_CLS
$FC3F DEFB $0D
$FC40 DEFB $F7,$CF ; " COMPACT PROGRAM"
$FC42 DEFB $FE
$FC43 DEFB $C1,$80,$13,$1A,$14 ; " START ADDRESS: "
$FC48 DEFB $FE
$FC49 DEFB $C2,$80,$13,$1B,$1C,$14 ; " FINISH ADDRESS: "
$FC4F DEFB $FE
$FC50 DEFB $18,$17 ; validate
$FC52 DEFB $00 ; "EXECUTE?"
$FC53 2A CB EC LD HL,(P_START)
$FC56 CD D6 16 CALL FIND_L
CP_LINE:
$FC59 CD 20 17 CALL RECLEN
$FC5C 46 LD B,(HL)
$FC5D 23 INC HL
$FC5E 4E LD C,(HL)
$FC5F 23 INC HL ; BC = line number
$FC60 E5 PUSH HL
$FC61 2A CD EC LD HL,(P_FINISH)
$FC64 A7 AND A
$FC65 ED 42 SBC HL,BC
$FC67 E1 POP HL
$FC68 D8 RET C ; past the last wanted line
$FC69 E5 PUSH HL
$FC6A 4E LD C,(HL) ; BC = line length
$FC6B 23 INC HL
$FC6C 46 LD B,(HL)
$FC6D 23 INC HL
$FC6E 7E LD A,(HL)
$FC6F FE EA CP $EA ; a REM line?
$FC71 20 04 JR NZ,CP_START
$FC73 EB EX DE,HL ; yes - leave it alone
$FC74 C1 POP BC
$FC75 18 E2 JR CP_LINE
CP_START:
$FC77 1E 00 LD E,$00 ; E bit 0 = inside a string
CP_CHAR:
$FC79 CD 02 16 CALL SKIPNUM
$FC7C 28 FB JR Z,CP_CHAR
$FC7E FE 0D CP $0D
$FC80 20 08 JR NZ,CP_TEST
$FC82 E1 POP HL ; end of line: rewrite its length
$FC83 71 LD (HL),C
$FC84 23 INC HL
$FC85 70 LD (HL),B
$FC86 23 INC HL
$FC87 09 ADD HL,BC
$FC88 18 CF JR CP_LINE
CP_TEST:
$FC8A FE 22 CP '"'
$FC8C 20 01 JR NZ,CP_SP
$FC8E 1C INC E
CP_SP:
$FC8F FE 21 CP $21 ; anything below "!" is droppable
$FC91 23 INC HL
$FC92 7E LD A,(HL)
$FC93 30 E4 JR NC,CP_CHAR
$FC95 CB 43 BIT 0,E
$FC97 20 E0 JR NZ,CP_CHAR ; inside a string - keep it
$FC99 2B DEC HL
$FC9A C5 PUSH BC
$FC9B CD 7E 0B CALL DELSYM ; delete this one byte
$FC9E C1 POP BC
$FC9F 0B DEC BC ; line got one shorter
$FCA0 AF XOR A
$FCA1 5F LD E,A
$FCA2 18 EE JR $FC92
;=====================================================================
; COMMAND J — Merge Lines ($FCA4)
; Joins each line in the range onto the previous one with a ":".
;=====================================================================
CMD_J:
$FCA4 CD 8F ED CALL SCRIPT_CLS
$FCA7 DEFB $0D
$FCA8 DEFB $E1,$CF,$C7 ; " MERGE PROGRAM LINE"
$FCAB DEFM "S"
$FCAC DEFB $FE
$FCAD DEFB $C1,$80,$13,$1A,$14 ; " START ADDRESS: "
$FCB2 DEFB $FE
$FCB3 DEFB $C2,$80,$13,$1B,$1C,$14 ; " FINISH ADDRESS: "
$FCB9 DEFB $18,$17 ; validate
$FCBB DEFB $00 ; "EXECUTE?"
$FCBC 2A CB EC LD HL,(P_START)
$FCBF CD D6 16 CALL FIND_L
$FCC2 23 INC HL
$FCC3 23 INC HL
$FCC4 54 LD D,H
$FCC5 5D LD E,L ; DE -> this line's length word
$FCC6 4E LD C,(HL)
$FCC7 23 INC HL
$FCC8 46 LD B,(HL)
$FCC9 09 ADD HL,BC ; HL -> the closing $0D
$FCCA 36 3A LD (HL),':' ; turn it into a statement separator
$FCCC E5 PUSH HL
$FCCD 23 INC HL
$FCCE 46 LD B,(HL) ; next line's number
$FCCF 23 INC HL
$FCD0 4E LD C,(HL)
$FCD1 23 INC HL
$FCD2 E5 PUSH HL
$FCD3 2A CD EC LD HL,(P_FINISH)
$FCD6 A7 AND A
$FCD7 ED 42 SBC HL,BC
$FCD9 E1 POP HL
$FCDA 38 17 JR C,CJ_DONE ; past the range
$FCDC 4E LD C,(HL) ; next line's length
$FCDD 23 INC HL
$FCDE 46 LD B,(HL)
$FCDF E5 PUSH HL
$FCE0 EB EX DE,HL
$FCE1 5E LD E,(HL)
$FCE2 23 INC HL
$FCE3 56 LD D,(HL)
$FCE4 EB EX DE,HL
$FCE5 09 ADD HL,BC ; combined length
$FCE6 EB EX DE,HL
$FCE7 72 LD (HL),D
$FCE8 2B DEC HL
$FCE9 73 LD (HL),E
$FCEA E1 POP HL
$FCEB D1 POP DE
$FCEC 23 INC HL
$FCED 13 INC DE
$FCEE CD 4D 17 CALL DEL_DE ; remove the second line's header
$FCF1 18 C9 JR CMD_J+$18 ; -> $FCBC, do it again
CJ_DONE:
$FCF3 E1 POP HL
$FCF4 36 0D LD (HL),$0D ; restore the final newline
$FCF6 C9 RET
;=====================================================================
; COMMANDS K / L — Upper Case / Lower Case ($FCF7 / $FD03)
; C bit 7 set = force upper case; C bit 0 set = also inside quotes.
;=====================================================================
CMD_K:
$FCF7 CD 8F ED CALL SCRIPT_CLS
$FCFA DEFB $0D
$FCFB DEFB $DD,$D3,$DC ; " lower TO UPPER"
$FCFE DEFB $19
$FCFF 0E 80 LD C,$80
$FD01 18 0A JR CASE_ASK
CMD_L:
$FD03 CD 8F ED CALL SCRIPT_CLS
$FD06 DEFB $0D
$FD07 DEFB $DC,$D3,$DD ; " UPPER TO lower"
$FD0A DEFB $19
$FD0B 0E 00 LD C,$00
CASE_ASK:
$FD0D C5 PUSH BC
$FD0E CD 92 ED CALL SCRIPT_FE
$FD11 DEFB $DE ; " CASE"
$FD12 DEFB $FE
$FD13 DEFB $C1,$80,$13,$1A,$14 ; " START ADDRESS: "
$FD18 DEFB $FE
$FD19 DEFB $C2,$80,$13,$1B,$1C,$14 ; " FINISH ADDRESS: "
$FD1F DEFB $18,$17
$FD21 DEFB $FE
$FD22 DEFB $BA ; " IN QUOTES? (Y/N): "
$FD23 DEFB $11,$00,$12,$00
$FD27 DEFB $00 ; "EXECUTE?"
$FD28 2A CD EC LD HL,(P_FINISH)
$FD2B 23 INC HL
$FD2C CD D6 16 CALL FIND_L
$FD2F E5 PUSH HL
$FD30 2A CB EC LD HL,(P_START)
$FD33 CD D6 16 CALL FIND_L
$FD36 D1 POP DE ; DE = one past the block
$FD37 C1 POP BC ; C = the direction flag
$FD38 3A D9 EC LD A,(STR0)
$FD3B E6 DF AND $DF
$FD3D FE 59 CP 'Y'
$FD3F 20 01 JR NZ,CASE_HDR
$FD41 0C INC C ; also convert inside strings
CASE_HDR:
$FD42 06 00 LD B,$00 ; B bit 0 = inside a string
$FD44 23 INC HL
$FD45 23 INC HL
$FD46 23 INC HL
$FD47 23 INC HL
CASE_CHAR:
$FD48 23 INC HL
$FD49 A7 AND A
$FD4A ED 52 SBC HL,DE
$FD4C D0 RET NC ; reached the end
$FD4D 19 ADD HL,DE
$FD4E 7E LD A,(HL)
CASE_NUM:
$FD4F CD 02 16 CALL SKIPNUM
$FD52 28 FB JR Z,CASE_NUM
$FD54 FE 0D CP $0D
$FD56 28 EA JR Z,CASE_HDR
$FD58 FE 22 CP '"'
$FD5A 20 01 JR NZ,CASE_TEST
$FD5C 04 INC B
CASE_TEST:
$FD5D CD 4B 30 CALL ALPHAQ
$FD60 30 E6 JR NC,CASE_CHAR ; not a letter
$FD62 CB 40 BIT 0,B
$FD64 28 04 JR Z,CASE_DO
$FD66 CB 41 BIT 0,C
$FD68 28 DE JR Z,CASE_CHAR ; in a string and told not to
CASE_DO:
$FD6A CB EE SET 5,(HL) ; lower case
$FD6C CB 79 BIT 7,C
$FD6E 28 D8 JR Z,CASE_CHAR
$FD70 CB AE RES 5,(HL) ; upper case
$FD72 18 D4 JR CASE_CHAR
;=====================================================================
; COMMAND N — Autoline On ($FD74)
; Installs an interrupt routine that types the next line number for
; you: when the edit line is empty and you press ENTER, it feeds the
; digits of E_PPC+increment into LASTK one per interrupt.
;=====================================================================
CMD_N:
$FD74 CD 8F ED CALL SCRIPT_CLS
$FD77 DEFB $0D
$FD78 DEFB $FB,$C7,$C8 ; " AUTO LINE NUMBER"
$FD7B DEFB $FE
$FD7C DEFB $86,$13,$1D,$14 ; " INCREMENT: " -> P_INCR
$FD80 DEFB $15,$16 ; non-zero, <= 100
$FD82 DEFB $00 ; "EXECUTE?"
$FD83 2A D1 EC LD HL,(P_INCR)
$FD86 22 4F FF LD (V_INCR),HL
$FD89 21 8F FD LD HL,AUTOLINE
$FD8C C3 41 FF JP SET_IM2
;---------------------------------------------------------------------
; AUTOLINE ($FD8F) called from the ISR, 60 times a second
;---------------------------------------------------------------------
AUTOLINE:
$FD8F 3A 52 FF LD A,(V_DIGIT)
$FD92 A7 AND A
$FD93 20 18 JR NZ,AL_FEED ; already part-way through
$FD95 2A 82 5C LD HL,(ECHOE)
$FD98 3E 20 LD A,$20
$FD9A BD CP L
$FD9B C0 RET NZ ; edit line not empty
$FD9C 3E 17 LD A,$17
$FD9E BC CP H
$FD9F C0 RET NZ
$FDA0 3A 08 5C LD A,(LASTK)
$FDA3 FE 0D CP $0D
$FDA5 C0 RET NZ ; only after ENTER
$FDA6 3A 3B 5C LD A,(FLAGS)
$FDA9 87 ADD A,A
$FDAA D8 RET C
$FDAB 3E 04 LD A,$04 ; four digits to send
AL_FEED:
$FDAD 3D DEC A
$FDAE 32 52 FF LD (V_DIGIT),A
$FDB1 2A 49 5C LD HL,(EPPC) ; the line the cursor is on
$FDB4 ED 5B 4F FF LD DE,(V_INCR)
$FDB8 19 ADD HL,DE ; ... plus the increment
$FDB9 01 18 FC LD BC,-1000
$FDBC CD D4 FD CALL AL_DIGIT
$FDBF FE 03 CP $03
$FDC1 C8 RET Z
$FDC2 01 9C FF LD BC,-100
$FDC5 CD D4 FD CALL AL_DIGIT
$FDC8 FE 02 CP $02
$FDCA C8 RET Z
$FDCB 0E F6 LD C,$F6 ; BC = -10
$FDCD CD D4 FD CALL AL_DIGIT
$FDD0 3D DEC A
$FDD1 C8 RET Z
$FDD2 0E FF LD C,$FF ; BC = -1
AL_DIGIT:
$FDD4 AF XOR A
AL_DIV:
$FDD5 3C INC A
$FDD6 09 ADD HL,BC
$FDD7 38 FC JR C,AL_DIV
$FDD9 ED 42 SBC HL,BC
$FDDB C6 2F ADD A,'0'-1
$FDDD E5 PUSH HL
$FDDE 32 08 5C LD (LASTK),A ; pretend the user typed it
$FDE1 21 3B 5C LD HL,FLAGS
$FDE4 CB EE SET 5,(HL) ; "a new key is ready"
$FDE6 E1 POP HL
$FDE7 3A 52 FF LD A,(V_DIGIT)
$FDEA C9 RET
;=====================================================================
; COMMAND Q — Display Memory ($FDEB)
; Puts a live "memory left" figure in the top right of the screen.
;=====================================================================
CMD_Q:
$FDEB CD 8F ED CALL SCRIPT_CLS
$FDEE DEFB $0D
$FDEF DEFB $EA,$EB ; " MEMORY LEFT"
$FDF1 DEFB $00 ; "EXECUTE?"
$FDF2 21 44 FE LD HL,SHOW_FREE
$FDF5 18 27 JR $FE1E ; -> JP SET_IM2
;=====================================================================
; COMMAND T — Trace on ($FDF7)
; Shows the line number currently being interpreted, top right.
;=====================================================================
CMD_T:
$FDF7 CD 8F ED CALL SCRIPT_CLS
$FDFA DEFB $0D
$FDFB DEFM " TRACE ON"
$FE04 DEFB $FE
$FE05 DEFM " SPEED: "
$FE0D DEFB $13,$1D,$14 ; -> P_INCR
$FE10 DEFB $16 ; 1..100
$FE11 DEFB $00 ; "EXECUTE?"
$FE12 3E 65 LD A,101
$FE14 2A D1 EC LD HL,(P_INCR)
$FE17 95 SUB L
$FE18 32 51 FF LD (V_DELAY),A ; delay = 101 - speed
$FE1B 21 21 FE LD HL,SHOW_LINE
$FE1E C3 41 FF JP SET_IM2
;---------------------------------------------------------------------
; SHOW_LINE ($FE21) the trace interrupt routine.
; Reads the H/J/K/L/ENTER half-row: ENTER+L holds the display,
; ENTER+K skips the delay.
;---------------------------------------------------------------------
SHOW_LINE:
$FE21 3E BF LD A,$BF
$FE23 DB FE IN A,($FE)
$FE25 E6 07 AND $07
$FE27 FE 04 CP $04
$FE29 28 F6 JR Z,SHOW_LINE ; hold
$FE2B FE 02 CP $02
$FE2D 28 10 JR Z,SL_NOW ; no delay
$FE2F 3A 51 FF LD A,(V_DELAY)
SL_WAIT:
$FE32 01 F4 01 LD BC,500
$FE35 21 00 00 LD HL,$0000
$FE38 54 LD D,H
$FE39 5D LD E,L
$FE3A ED B0 LDIR ; a 500-iteration delay
$FE3C 3D DEC A
$FE3D 20 F3 JR NZ,SL_WAIT
SL_NOW:
$FE3F 2A 45 5C LD HL,(PPC) ; the line being interpreted
$FE42 18 0A JR PAINT
;---------------------------------------------------------------------
; SHOW_FREE ($FE44) the "memory left" interrupt routine
;---------------------------------------------------------------------
SHOW_FREE:
$FE44 A7 AND A
$FE45 2A B2 5C LD HL,(RAMTOP)
$FE48 ED 5B 59 5C LD DE,(ELINE)
$FE4C ED 52 SBC HL,DE
;---------------------------------------------------------------------
; PAINT ($FE4E) write HL as five characters straight into the
; display file at $401A (top line, columns 26-30) by copying glyphs
; out of the ROM character set at $3D80 ('0').
;---------------------------------------------------------------------
PAINT:
$FE4E 11 1A 40 LD DE,$401A
$FE51 ED 53 53 FF LD (V_SCRN),DE
$FE55 01 F0 D8 LD BC,-10000
$FE58 CD 70 FE CALL PAINT1
$FE5B 01 18 FC LD BC,-1000
$FE5E CD 70 FE CALL PAINT1
$FE61 01 9C FF LD BC,-100
$FE64 CD 70 FE CALL PAINT1
$FE67 01 F6 FF LD BC,-10
$FE6A CD 70 FE CALL PAINT1
$FE6D 01 FF FF LD BC,-1
PAINT1:
$FE70 AF XOR A
PAINT2:
$FE71 3C INC A
$FE72 09 ADD HL,BC
$FE73 38 FC JR C,PAINT2
$FE75 ED 42 SBC HL,BC
$FE77 87 ADD A,A ; A = digit+1, so *8 ...
$FE78 87 ADD A,A
$FE79 87 ADD A,A
$FE7A C6 78 ADD A,$78 ; ... + $78 = $80 + 8*digit
$FE7C 5F LD E,A
$FE7D 16 3D LD D,$3D ; DE = $3D80 + 8*digit
$FE7F E5 PUSH HL
$FE80 2A 53 FF LD HL,(V_SCRN)
$FE83 23 INC HL
$FE84 22 53 FF LD (V_SCRN),HL
$FE87 06 08 LD B,$08
PAINT3:
$FE89 1A LD A,(DE)
$FE8A 77 LD (HL),A
$FE8B 13 INC DE
$FE8C 24 INC H ; next pixel row of the same cell
$FE8D 10 FA DJNZ PAINT3
$FE8F E1 POP HL
$FE90 C9 RET
;=====================================================================
; COMMAND O — Locate Token ($FE91)
; Reports the address of the first symbol of a given BASIC line, in
; both decimal and hex — what you need before POKEing code into a REM.
;=====================================================================
CMD_O:
$FE91 CD 8F ED CALL SCRIPT_CLS
$FE94 DEFB $0D
$FE95 DEFM " FIND"
$FE9A DEFB $C0,$CE,$C3,$E4 ; " ADDRESS OF 1st SYMBOL"
$FE9E DEFB $FE
$FE9F DEFB $C7,$88 ; " LINE NUMBER: "
$FEA1 DEFB $13,$1B,$1C,$14 ; -> P_FINISH and P_DEST
$FEA5 DEFB $17
$FEA6 DEFB $00 ; "EXECUTE?"
$FEA7 2A CF EC LD HL,(P_DEST)
$FEAA CD D6 16 CALL FIND_L
$FEAD C4 4A EF CALL NZ,REPORT
$FEB0 03 DEFB 3 ; "Invalid Line Number"
$FEB1 23 INC HL ; step over the 4-byte header
$FEB2 23 INC HL
$FEB3 23 INC HL
$FEB4 23 INC HL
$FEB5 CD 97 ED CALL SCRIPT
$FEB8 DEFB $C0 ; " ADDRESS"
$FEB9 DEFM " IS"
$FEBC DEFB $FE
$FEBD DEFB $9F,$14 ; " DEC: " + the value
$FEBF DEFB $06 ; comma tab
$FEC0 DEFB $A0,$10 ; " HEX: " + "#hhhh"
$FEC2 DEFB $19
$FEC3 C9 RET
;=====================================================================
; PRBC ($FEC4) print BC as decimal, preserving HL/DE
;=====================================================================
PRBC:
$FEC4 E5 PUSH HL
$FEC5 D5 PUSH DE
$FEC6 60 LD H,B
$FEC7 69 LD L,C
$FEC8 CD AD EC CALL PRDEC
$FECB D1 POP DE
$FECC E1 POP HL
$FECD C9 RET
;---------------------------------------------------------------------
; $FECE-$FED7 10 spare bytes (all $00)
;---------------------------------------------------------------------
$FECE DEFS 10,$00
;=====================================================================
; NUMBER_ALL ($FED8)
; Rebuilds all line lengths, then renumbers every line 1,2,3...
; No reference to this routine exists anywhere in the image; it looks
; like a leftover, or something meant to be called from BASIC.
;=====================================================================
NUMBER_ALL:
$FED8 CD 52 F4 CALL REBUILD
$FEDB 11 00 00 LD DE,$0000
$FEDE 2A 53 5C LD HL,(PROG)
NA_LOOP:
$FEE1 13 INC DE
$FEE2 72 LD (HL),D
$FEE3 23 INC HL
$FEE4 73 LD (HL),E
$FEE5 23 INC HL
$FEE6 4E LD C,(HL)
$FEE7 23 INC HL
$FEE8 46 LD B,(HL)
$FEE9 23 INC HL
$FEEA 09 ADD HL,BC
$FEEB E5 PUSH HL
$FEEC ED 4B 4B 5C LD BC,(VARS)
$FEF0 A7 AND A
$FEF1 ED 42 SBC HL,BC
$FEF3 E1 POP HL
$FEF4 38 EB JR C,NA_LOOP
$FEF6 C9 RET
;---------------------------------------------------------------------
; $FEF7-$FEFE 8 spare bytes (all $00)
;---------------------------------------------------------------------
$FEF7 DEFS 8,$00
;=====================================================================
; ISR ($FEFF) the interrupt service routine reached via $E9E9.
; RST $38 runs the ROM's own maskable-interrupt handler first (FRAMES
; and the keyboard scan), then the toolkit's own work is done with
; interrupts disabled.
;=====================================================================
ISR:
$FEFF 00 NOP
$FF00 00 NOP
$FF01 FF RST $38 ; ROM keyboard/FRAMES handler
$FF02 F3 DI
$FF03 C5 PUSH BC
$FF04 D5 PUSH DE
$FF05 E5 PUSH HL
$FF06 F5 PUSH AF
$FF07 CD 10 FF CALL ISR_WORK
$FF0A F1 POP AF
$FF0B E1 POP HL
$FF0C D1 POP DE
$FF0D C1 POP BC
$FF0E FB EI
$FF0F C9 RET
;---------------------------------------------------------------------
; ISR_WORK ($FF10)
; 1. the NEW lock: the key decoder produces $E6 (NEW) for "A" in K
; mode; swap it for $E2 (STOP). Then, unless SYMBOL SHIFT is being
; held, throw the keypress away entirely. Net effect: NEW cannot
; be typed by accident, and STOP still works the normal way.
; 2. call whatever routine command N/Q/T left in V_USER.
;---------------------------------------------------------------------
ISR_WORK:
$FF10 21 08 5C LD HL,LASTK
$FF13 3E E6 LD A,$E6 ; NEW
$FF15 BE CP (HL)
$FF16 20 02 JR NZ,IW_STOP
$FF18 36 E2 LD (HL),$E2 ; -> STOP
IW_STOP:
$FF1A 3E E2 LD A,$E2
$FF1C BE CP (HL)
$FF1D 20 0F JR NZ,IW_USER
$FF1F 3E 7F LD A,$7F ; half-row B N M SYMSHIFT SPACE
$FF21 DB FE IN A,($FE)
$FF23 CB 4F BIT 1,A ; SYMBOL SHIFT held?
$FF25 20 07 JR NZ,IW_USER
$FF27 21 3B 5C LD HL,FLAGS
$FF2A 3E D7 LD A,$D7 ; clear bits 5 and 3
$FF2C A6 AND (HL)
$FF2D 77 LD (HL),A ; discard the keypress
IW_USER:
$FF2E 2A 4D FF LD HL,(V_USER)
$FF31 7C LD A,H
$FF32 B5 OR L
$FF33 C8 RET Z
$FF34 E9 JP (HL)
;=====================================================================
; COMMAND X — N/Q/T/W off ($FF35)
; Puts the machine back on the ROM's own IM1 interrupt.
;=====================================================================
CMD_X:
$FF35 F3 DI
$FF36 3E 3F LD A,$3F
$FF38 ED 47 LD I,A
$FF3A ED 56 IM 1
$FF3C FB EI
$FF3D C9 RET
;=====================================================================
; COMMAND W — Disable NEW ($FF3E)
; Enables IM2 with no user routine, so ISR_WORK's NEW lock is the only
; thing running.
;=====================================================================
CMD_W:
$FF3E 21 00 00 LD HL,$0000
;=====================================================================
; SET_IM2 ($FF41) install HL as the per-interrupt routine and turn
; interrupt mode 2 on. IM2_INIT must have run first.
;=====================================================================
SET_IM2:
$FF41 F3 DI
$FF42 22 4D FF LD (V_USER),HL
$FF45 3E E8 LD A,$E8
$FF47 ED 47 LD I,A
$FF49 ED 5E IM 2
$FF4B FB EI
$FF4C C9 RET
;=====================================================================
; Interrupt-time variables ($FF4D-$FF57). Values shown are whatever
; the captured image happened to contain.
;=====================================================================
V_USER: $FF4D DEFW $FE44 ; routine called each interrupt (0 = none)
V_INCR: $FF4F DEFW $000A ; N: autoline increment
V_DELAY: $FF51 DEFB $15 ; T: trace delay, 101 - speed
V_DIGIT: $FF52 DEFB $00 ; N: digits still to feed
V_SCRN: $FF53 DEFW $401F ; Q/T: next display-file cell to paint
$FF55 DEFB $13,$00,$3E ; spare / uninitialised
; end of image, $FF57
;=====================================================================
; APPENDIX — every prompt script rendered, straight from the bytes
; (produced by interpreting the scripts above; verifies the decode)
;=====================================================================
; ==================================================================
; A ($F1B0)
; ------------------------------------------------------------------
;
; SEARCH & REPLACE
START ADDRESS: <input num><-P_START><print dec>
FINISH ADDRESS: <input num><-P_FINISH><-P_DEST><print dec>
OLD STRING: <input str0><echo str0>
NEW STRING: <input str1><echo str1>
LIST ? (0=no): <input num><-P_INCR><print dec><check 22><check 23><check 24>
; <EXECUTE? y/n>
; ==================================================================
; B ($F6F1)
; ------------------------------------------------------------------
;
; MACHINE CODE TO DATA
START ADDRESS: <input num><-P_START><print dec>
FINISH ADDRESS: <input num><-P_FINISH><print dec>
<check 24> 1st LINE NUMBER: <input num><-P_DEST><print dec>
BYTES PER LINE: <input num><-P_INCR><print dec><err if 0><check 22>
; <run, resume $F714>
; ==================================================================
; C ($F59D)
; ------------------------------------------------------------------
;
; COPY
; <run, resume $F5A0>
; ==================================================================
; D ($F613)
; ------------------------------------------------------------------
;
; DELETE BLOCK OF PROGRAM
START ADDRESS: <input num><-P_START><print dec>
FINISH ADDRESS: <input num><-P_FINISH><-P_DEST><print dec><check 24><check 23>
; <EXECUTE? y/n>
; ==================================================================
; E ($F642)
; ------------------------------------------------------------------
;
; CREATE REM LINE
LINE NUMBER: <input num><-P_FINISH><-P_DEST><print dec><check 23>
LENGTH: <input num><-P_INCR><print dec><err if 0>
SYMBOL: <input str0><echo str0>
; <EXECUTE? y/n>
; ==================================================================
; F ($F9F2)
; ------------------------------------------------------------------
;
; REM DELETE
START ADDRESS: <input num><-P_START><print dec>
FINISH ADDRESS: <input num><-P_FINISH><-P_DEST><print dec>
<check 24><check 23>
; <EXECUTE? y/n>
; ==================================================================
; G ($FA84)
; ------------------------------------------------------------------
;
; DESIGN UDGs
CHARACTER: <input str0><echo str0>
; <EXECUTE? y/n>
; ==================================================================
; H ($F17A)
; ------------------------------------------------------------------
;
; HEX & DECIMAL
Precede HEX nos with "#".
; <run, resume $F19C>
; ==================================================================
; I ($F83D)
; ------------------------------------------------------------------
;
; STATUS REPORT
MEMORY LEFT:
; <run, resume $F844>
; ==================================================================
; J ($FCA7)
; ------------------------------------------------------------------
;
; MERGE PROGRAM LINES
START ADDRESS: <input num><-P_START><print dec>
FINISH ADDRESS: <input num><-P_FINISH><-P_DEST><print dec><check 24><check 23>
; <EXECUTE? y/n>
; ==================================================================
; K ($FCFA)
; ------------------------------------------------------------------
;
; lower TO UPPER
; <run, resume $FCFF>
; ==================================================================
; L ($FD06)
; ------------------------------------------------------------------
;
; UPPER TO lower
; <run, resume $FD0B>
; ==================================================================
; M ($F327)
; ------------------------------------------------------------------
;
; MOVE
; <run, resume $F32A>
; ==================================================================
; N ($FD77)
; ------------------------------------------------------------------
;
; AUTO LINE NUMBER
INCREMENT: <input num><-P_INCR><print dec><err if 0><check 22>
; <EXECUTE? y/n>
; ==================================================================
; O ($FE94)
; ------------------------------------------------------------------
;
; FIND ADDRESS OF 1st SYMBOL
LINE NUMBER: <input num><-P_FINISH><-P_DEST><print dec><check 23>
; <EXECUTE? y/n>
; ==================================================================
; P ($FC3F)
; ------------------------------------------------------------------
;
; COMPACT PROGRAM
START ADDRESS: <input num><-P_START><print dec>
FINISH ADDRESS: <input num><-P_FINISH><-P_DEST><print dec>
<check 24><check 23>
; <EXECUTE? y/n>
; ==================================================================
; Q ($FDEE)
; ------------------------------------------------------------------
;
; MEMORY LEFT
; <EXECUTE? y/n>
; ==================================================================
; R ($F35F)
; ------------------------------------------------------------------
;
; RENUMBER
; <run, resume $F362>
; ==================================================================
; S ($F988)
; ------------------------------------------------------------------
;
; SEARCH & LIST
START ADDRESS: <input num><-P_START><print dec>
FINISH ADDRESS: <input num><-P_FINISH><-P_DEST><print dec>
<check 24><check 23> STRING: <input str0><echo str0>
; <EXECUTE? y/n>
; ==================================================================
; T ($FDFA)
; ------------------------------------------------------------------
;
; TRACE ON
SPEED: <input num><-P_INCR><print dec><check 22>
; <EXECUTE? y/n>
; ==================================================================
; U ($F6B3)
; ------------------------------------------------------------------
;
; UDGs TO DATA
NUMBER OF UDGs: <input num><-P_WORK2><-P_INCR><print dec><err if 0>
1st LINE NUMBER: <input num><-P_FINISH><-P_DEST><print dec><check 23><check 22>
; <run, resume $F6CB>
; ==================================================================
; V ($F8E1)
; ------------------------------------------------------------------
; LIST VARIABLES
; <run, resume $F8E6>
; ==================================================================
; shared ASK_BLOCK ($F33C)
; ------------------------------------------------------------------
; BLOCK OF PROGRAM
START ADDRESS: <input num><-P_START><print dec>
1st UNAFFECTED ADDRESS: <input num><-P_FINISH><print dec>
DESTINATION: <input num><-P_DEST><print dec>
<check 24><check 23> INCREMENT: <input num><-P_INCR><print dec><err if 0><check 22>
; <EXECUTE? y/n>
; ==================================================================
; B/U second page ($F723)
; ------------------------------------------------------------------
;
DEC OR HEX: <input str0><echo str0>
; <EXECUTE? y/n>
; ==================================================================
; K/L second page ($FD11)
; ------------------------------------------------------------------
; CASE
START ADDRESS: <input num><-P_START><print dec>
FINISH ADDRESS: <input num><-P_FINISH><-P_DEST><print dec><check 24><check 23>
IN QUOTES? (Y/N): <input str0><echo str0>
; <EXECUTE? y/n>
; ==================================================================
; MENU ($EA6F)
; ------------------------------------------------------------------
;
; TS 2068 TOOLKIT
;
; A Alter Program N Autoline On B Bytes to DATA O Locate Token C Copy Lines P Compactor D Delete lines Q Display MemoryE REM Create R Renumber F REM Delete S Search & List G UDG Designer T Trace on H Hex & Dec U UDGs to DATA I Information V List VariablesJ Merge Lines W Disable NEW K Upper Case X N/Q/T/W off L Lower Case Y Uncorrupt M Move Lines Z Line Sort
;
; PRESS A KEY FOLLOWED BY ENTER,
; or just ENTER anytime for menu
(c) BOB MITCHELL 1985
;
; <run, resume $EC70>Note: Type-in program listings on this website use ZMAKEBAS notation for graphics characters.
