The Coupon Manager is a household coupon organizer that stores up to 10 coupons each across 18 product categories, recording store name, brand description, start date, and expiration date for each coupon. Data is held in a 180-row by 46-column string array T$, with a parallel 18-element C$ array holding category names. The program embeds Z80 machine code in the REM statement at line 100, invoked via USR 16720, which appears to implement a custom display or memory-clear routine; additional POKE sequences at addresses 16707–16712 configure machine code parameters before each USR call. Coupons can be retrieved either by category or by store name, with a linear search through T$ comparing entered store names against stored records. The program includes tape save functionality, writing the entire program (including the T$ data array) to cassette using the SAVE command.
Program Analysis
Program Structure
The program is organized into clearly delineated functional blocks accessed via GOSUB. The main loop runs from line 500 through 580, repeatedly calling menu and function-selection routines. The overall flow is:
- Lines
300–320: Declare the two primary arrays (C$andT$). - Lines
500–580: Main control loop — initialize display, load categories, show splash, display master menu, display function menu, dispatch to add/delete/display. - Lines
1000–1180: Display utility routines (machine code invocation with POKE configurations). - Lines

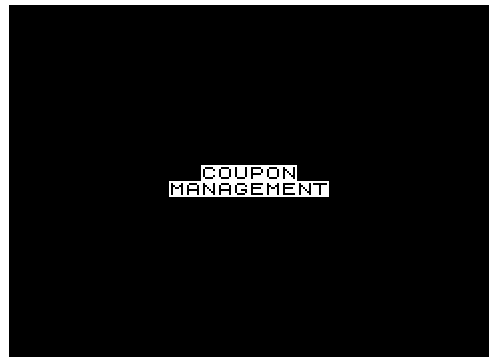

1200–1299: Splash/title screen. - Lines

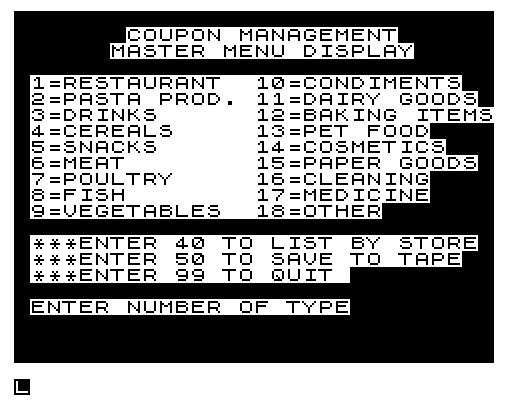

1300–1399: Master menu with 18 categories plus special entries for store listing, save, and quit. - Lines
1400–1499: Function selection menu (add, delete, display). - Lines
2000–2999: Coupon add logic, including slot-finding subroutine at2500. - Lines
3000–3499: Delete logic. - Lines
3500–3590: Display-all-of-type logic. - Lines
8000–8050: Populate category name arrayC$. - Lines
8500–8520: Quit confirmation. - Lines
9000–9060: Tape save routine. - Lines
9100–9240: Search and display by store name.
Data Model
Two string arrays carry all persistent data:
| Array | Dimensions | Purpose |
|---|---|---|
C$(18,12) | 18 rows × 12 chars | Category names (e.g., “RESTAURANT”, “MEAT”) |
T$(180,46) | 180 rows × 46 chars | Coupon records, 10 per category |
Each row of T$ uses fixed-width substring slices:
| Columns | Field |
|---|---|
| 1–2 | Category number (zero-padded) |
| 3–5 | Record number (zero-padded) |
| 6–15 | Store/place of usage (10 chars) |
| 16–30 | Brand name / description (15 chars) |
| 31–38 | Start date MM/DD/YY (8 chars) |
| 39–46 | Expiration date MM/DD/YY (8 chars) |
Category A uses rows A*10-9 through A*10, giving exactly 10 slots per category for a total of 180 records.
Machine Code Usage
Line 100 contains a large block of Z80 machine code embedded in a REM statement. The entry point is at address 16720 (decimal), called via USR 16720 at lines 1070 and 1170. Before each call, six consecutive memory locations (16707–16712) are POKEd with either 128 (lines 1010–1060, routine at 1000) or 0 (lines 1110–1160, routine at 1100). The machine code likely uses these bytes as parameters to control the display — possibly toggling a custom display driver or clearing/setting a screen region. The REM data also includes what appear to be multiple independent routines at different offsets within the block, given the presence of several C9 (RET) opcodes interspersed throughout.
Key BASIC Idioms
- Fixed-width substring assignment: Fields are stored by writing into specific column slices of
T$(X, col TO col). Because BASIC string arrays are fixed-width, this acts as a simple flat-file record format. - Zero-padding: Lines
2212–2218manually prepend “0” characters to category and record numbers when they are less than 10 or 100, respectively, ensuring consistent 2- and 3-digit file numbers for reliable string comparison during search. - Linear search: The delete routine (line
3090–3150) and the store-name search (line9182–9200) both useFOR N=1 TO 180loops with conditional branching — a straightforward sequential scan. - Delay loops: Empty
FOR/NEXTloops (e.g., lines1230–1235,2820–2840) serve as timing delays for display pauses.
Notable Techniques
The tape save at line 9050 uses SAVE "COUPO%N" — the %N renders as an inverse-video “N” in the filename. Saving the program with its data arrays intact means the entire coupon database is preserved on tape alongside the code, providing a simple persistence mechanism without needing a separate data file.
Lines 150 and 270 interact in a noteworthy way: line 150 jumps to 270, but line 270 does not exist in the listing. This is used as a technique to skip over the INPUT/POKE loader utility at lines 200–260 during normal execution, while still allowing those lines to be accessed manually if needed.
The store-name search at line 9184 compares D$ against T$(N,6 TO D) where D=5+LEN D$. This dynamically sizes the comparison window to match the entered store name length, avoiding false mismatches due to trailing spaces — a careful approach to variable-length string matching within a fixed-width field.
Bugs and Anomalies
- Delete uses wrong variable: Line
3410writes the blank string toT$(X), but the correct variable found during the search loop (line3100) isN, notX.Xis the add-routine’s slot pointer and may hold an unrelated value, so the wrong record could be blanked. - C$(13) out of sequence: In the category initialization block (lines
8000–8044),C$(13)(“PET FOOD”) is assigned at line8040, afterC$(14)throughC$(17). This is cosmetically inconsistent but functionally harmless. - Category 13 missing from add/display: No
C$(13)row is declared betweenC$(12)andC$(14)in sequential order, but the array is populated correctly at line8040; the master menu does list “13=PET FOOD”, so this is not a real omission. - Instructions branch unreachable: Lines
1241–1250(the “DO YOU NEED INSTRUCTIONS?” prompt) are skipped by an unconditionalGOTO 1299at line1240, making the instruction pathway dead code. Line7000, which would contain the instructions, does not appear in the listing at all. - B=4 accepted silently: The function menu guard at line
1450rejectsB<1 OR B>4, meaningB=4passes through but has no correspondingIF B=4handler in the dispatch block (lines570–578), causing it to loop back to560doing nothing.
Content
Image Gallery
Source Code
100 REM 2A C4023 159 1ED4A3680C9 0 0 0 02A C4023 159 1ED4A 6 F36802B 5C29D402A C4023 159 1ED4A 6 F368023 5C2AF40C9 0 0 0 0 0 0 0 0 0 0 0 0 02A C4023 12A 1ED4A 6 F368023 5C2CF40C9 0 0 0 0 0 0 0 0 0 E162A C40231121 0 620ED5A22FF40368823 5C2F0402AFF40 DC2E940C9 561 0 0 0 0 0 0 0 0 02A C4023 1 F 01121 0ED4A E15ED5A3680 DC21841C9 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0795C 6 0 0 1 0808080808080 0 0 0 0 0 0 0ED5B C4013ED533C413E 6323E413E163240413E 5324141ED4B3E41214341EDB03A41413DC265412A3C411121 0ED5A223C41EB3A40413D3240413C47 5C26341C9 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
150 GOTO 270
200 INPUT A
220 INPUT B
230 PRINT B
240 POKE A,B
250 LET A=A+1
260 GOTO 220
300 DIM C$(18,12)
320 DIM T$(180,46)
500 GOSUB 1000
505 GOSUB 8000
510 GOSUB 1200
520 GOSUB 1000
550 GOSUB 1300
560 GOSUB 1400
570 IF B=1 THEN GOSUB 2000
576 IF B=2 THEN GOSUB 3000
578 IF B=3 THEN GOSUB 3500
580 GOTO 560
999 STOP
1000 REM
1010 POKE 16707,128
1020 POKE 16708,128
1030 POKE 16709,128
1040 POKE 16710,128
1050 POKE 16711,128
1060 POKE 16712,128
1070 LET C=USR 16720
1080 RETURN
1100 REM
1110 POKE 16707,0
1120 POKE 16708,0
1130 POKE 16709,0
1140 POKE 16710,0
1150 POKE 16711,0
1160 POKE 16712,0
1170 LET C=USR 16720
1180 RETURN
1200 REM
1210 PRINT AT 10,12;"COUPON"
1220 PRINT AT 11,10;"MANAGEMENT"
1230 FOR N=1 TO 50
1235 NEXT N
1240 GOTO 1299
1241 PRINT AT 1,1;"DO YOU NEED INSTRUCTIONS ?"
1244 INPUT A$
1246 PRINT AT 3,1;A$
1248 IF A$="N" THEN GOTO 550
1250 GOTO 7000
1299 RETURN
1300 REM
1310 GOSUB 1000
1320 PRINT AT 1,7;"COUPON MANAGEMENT"
1330 PRINT AT 2,6;"MASTER MENU DISPLAY"
1340 PRINT AT 18,1;"ENTER NUMBER OF TYPE"
1350 PRINT AT 4,1;"1=RESTAURANT 10=CONDIMENTS"
1352 PRINT AT 5,1;"2=PASTA PROD. 11=DAIRY GOODS"
1354 PRINT AT 6,1;"3=DRINKS 12=BAKING ITEMS"
1356 PRINT AT 7,1;"4=CEREALS 13=PET FOOD"
1358 PRINT AT 8,1;"5=SNACKS 14=COSMETICS"
1360 PRINT AT 9,1;"6=MEAT 15=PAPER GOODS"
1362 PRINT AT 10,1;"7=POULTRY 16=CLEANING"
1364 PRINT AT 11,1;"8=FISH 17=MEDICINE"
1366 PRINT AT 12,1;"9=VEGETABLES 18=OTHER"
1367 PRINT AT 14,1;"***ENTER 40 TO LIST BY STORE"
1368 PRINT AT 15,1;"***ENTER 50 TO SAVE TO TAPE"
1369 PRINT AT 16,1;"***ENTER 99 TO QUIT "
1370 INPUT A
1372 PRINT AT 19,1;A
1377 IF A=40 THEN GOTO 9100
1380 IF A=99 THEN GOTO 8500
1382 IF A=50 THEN GOTO 9000
1384 IF A<1 OR A>99 THEN GOTO 550
1399 RETURN
1400 REM
1410 GOSUB 1000
1420 PRINT AT 1,8;"FUNCTION DISPLAY"
1422 PRINT AT 3,1;"ENTER NUMBER FOR FUNCTION"
1424 PRINT AT 4,1;"YOU WISH TO PERFORM"
1425 PRINT AT 6,5;"TYPE= ";C$(A)
1426 PRINT AT 10,4;"1=ADD A COUPON"
1428 PRINT AT 12,4;"2=DELETE A COUPON"
1440 PRINT AT 14,4;"3=DISPLAY ALL OF TYPE ";A
1442 PRINT AT 18,4;"99=QUIT THIS SECTION"
1444 INPUT B
1446 PRINT AT 20,1;B
1448 IF B=99 THEN GOTO 550
1450 IF B<1 OR B>4 THEN GOTO 560
1499 RETURN
2000 REM ADD LOGIC
2010 GOSUB 1000
2020 PRINT AT 1,5;"COUPON ADD DISPLAY"
2030 PRINT AT 2,5;"FOR TYPE ";C$(A)
2040 PRINT AT 5,0;"ENTER PLACE OF USAGE"
2045 INPUT P$
2048 PRINT P$
2049 PRINT
2050 PRINT "ENTER BRAND NAME OR DESCRIPT."
2060 INPUT D$
2062 PRINT D$
2063 PRINT
2064 PRINT "ENTER START DATE--MM/DD/YY"
2066 INPUT S$
2068 PRINT S$
2069 PRINT
2070 PRINT "ENTER EXPIRE DATE--MM/DD/YY"
2072 INPUT E$
2074 PRINT E$
2100 PRINT AT 20,1;"ALL ABOVE CORRECT ? Y/N"
2110 INPUT Y$
2120 PRINT Y$
2130 IF Y$="N" THEN GOTO 2000
2150 LET X=A*10-9
2152 GOSUB 2500
2200 LET T$(X,6 TO 15)=P$
2202 LET T$(X,16 TO 30)=D$
2204 LET T$(X,31 TO 38)=S$
2206 LET T$(X,39 TO 46)=E$
2208 LET T$(X,1 TO 2)=STR$ A
2210 LET T$(X,3 TO 5)=STR$ X
2212 IF A<10 THEN LET T$(X,1 TO 1)="0"
2214 IF A<10 THEN LET T$(X,2 TO 2)=STR$ A
2216 IF X<100 THEN LET T$(X,3 TO 3)="0"
2218 IF X<100 THEN LET T$(X,4 TO 5)=STR$ X
2220 GOSUB 1000
2225 PRINT AT 2,2;"NUMBER ASSIGNED IS ";T$(X,1 TO 5)
2227 PRINT "FILE BY THIS NUMBER"
2229 PRINT
2232 PRINT "HIT ENTER KEY WHEN READY"
2234 INPUT G$
2236 GOSUB 1000
2499 RETURN
2500 REM
2510 IF X>A*10 THEN GOTO 2800
2515 IF T$(X,1 TO 2)<>" " THEN GOTO 2700
2520 RETURN
2700 LET X=X+1
2710 GOTO 2510
2800 GOSUB 1000
2810 PRINT AT 2,2;"NO MORE ROOM IN ";C$(A)
2815 PRINT "YOU MUST DELETE ONE"
2817 PRINT "TO MAKE ROOM"
2820 FOR N=1 TO 40
2840 NEXT N
2850 GOTO 560
2999 RETURN
3000 REM
3010 GOSUB 1000
3020 PRINT AT 2,8;"DELETE SCREEN"
3030 PRINT
3040 PRINT AT 4,8;"TYPE IS ";C$(A)
3050 PRINT AT 6,2;"ENTER FILE NUMBER"
3060 INPUT Q$
3070 PRINT AT 15,2;Q$
3080 LET V$=Q$
3084 LET S1=LEN V$
3086 IF S1<5 THEN LET V$=V$+" "
3090 FOR N=1 TO 180
3100 IF V$=T$(N,1 TO 5) THEN GOTO 3400
3150 NEXT N
3170 PRINT AT 18,2;"COUPON NOT ON FILE"
3180 FOR N=1 TO 40
3190 NEXT N
3200 GOSUB 1000
3210 RETURN
3400 LET Z$=" "
3410 LET T$(X)=Z$
3412 PRINT AT 17,2;"COUPON DELETED"
3415 FOR N=1 TO 30
3420 NEXT N
3499 RETURN
3500 REM
3510 GOSUB 1100
3515 CLS
3530 FOR N=A*10-9 TO A*10
3531 IF T$(N,1 TO 5)=" " THEN GOTO 3565
3535 PRINT "STORE ";T$(N,6 TO 15)
3540 PRINT "BRAND ";T$(N,16 TO 30)
3545 PRINT "START ";T$(N,31 TO 38)
3550 PRINT "END ";T$(N,39 TO 46)
3555 PRINT "FILE ";T$(N,1 TO 5)
3560 PRINT
3565 NEXT N
3570 PRINT "HIT ENTER KEY WHEN READY"
3580 INPUT Y$
3590 GOTO 560
8000 REM
8010 LET C$(1)="RESTAURANT"
8012 LET C$(2)="PASTA PROD."
8014 LET C$(3)="DRINKS"
8016 LET C$(4)="CEREALS"
8018 LET C$(5)="SNACKS"
8020 LET C$(6)="MEAT"
8022 LET C$(7)="POULTRY"
8024 LET C$(8)="FISH"
8026 LET C$(9)="VEGETABLES"
8028 LET C$(10)="CONDIMENTS"
8030 LET C$(11)="DAIRY PRODUCTS"
8032 LET C$(12)="BAKING ITEMS"
8034 LET C$(14)="COSMETICS"
8036 LET C$(15)="PAPER GOODS"
8038 LET C$(16)="CLEANING"
8040 LET C$(13)="PET FOOD"
8042 LET C$(17)="MEDICINE"
8044 LET C$(18)="OTHER"
8050 RETURN
8500 GOSUB 1000
8510 PRINT AT 2,2;"ARE YOU SURE QUIT IS"
8512 PRINT AT 3,2;"WHAT YOU WANT ? Y/N"
8514 INPUT L$
8516 PRINT AT 5,2;L$
8517 IF L$="Y" THEN STOP
8520 GOTO 550
9000 REM
9010 GOSUB 1000
9020 PRINT AT 2,2;"SET RECORDER FOR SAVE MODE"
9030 PRINT AT 4,2;"WHEN READY HIT ENTER KEY"
9040 INPUT L$
9050 SAVE "COUPO%N"
9060 GOTO 500
9100 REM
9110 GOSUB 1000
9120 PRINT AT 2,2;"ENTER STORE NAME DESIRED"
9130 INPUT D$
9140 PRINT AT 4,8;D$
9150 LET D=5+LEN D$
9160 FOR N=1 TO 20
9170 NEXT N
9174 GOSUB 1100
9176 PRINT AT 1,2;D$
9178 PRINT
9180 PRINT "BRAND FILE NO."
9182 FOR N=1 TO 180
9184 IF D$<>T$(N,6 TO D) THEN GOTO 9200
9186 PRINT T$(N,16 TO 30);" ";T$(N,1 TO 5)
9190 PRINT
9200 NEXT N
9220 PRINT "HIT ENTER WHEN READY"
9230 INPUT Y$
9240 GOTO 550
Note: Type-in program listings on this website use ZMAKEBAS notation for graphics characters.
