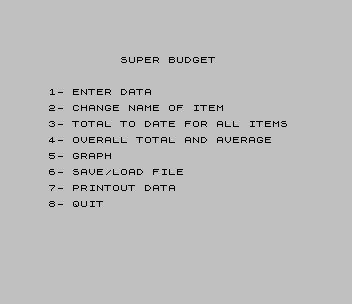

A household budget program. After you enter the year of the budget, a menu offers eight options: enter data, change the name of an item, total to date for all items, overall total and average, graph, save or load a file, print the data and quit. For each item it keeps a table of months with the amount spent, the estimate and the difference. A sample data file is included on the tape.
The title screen reads “SUPER BUDGET / WRITTEN BY KRISTIAN BOISVERT / ©1986 BYTE POWER”. It was track 08 of Byte Power 1st Class Magazine, Issue 4, November 1986, a tape magazine from Canada.
Program Analysis
Nearly all of the program is a block of machine code, BUDGET.C8, 8140 bytes loaded at 48518. The BASIC is a short loader with tape and printer helpers. Line 30 starts the machine code with RANDOMIZE USR 48518. When the code needs BASIC to do something, it returns with a line number in addresses 65534–65535, and BASIC jumps there with GO TO (PEEK 65534+256*PEEK 65535).
- Lines 100–195 handle save and load. They ask for a file name of up to nine characters and save or load the 8710-byte data area at 56658 as
CODE. Afterwards they re-enter the machine code at 48620. - Lines 1000–1310 are four entry points that first
COPYthe screen to the printer and then call a different machine code routine. They appear to be used by the printout. - Line 3 checks the byte at 23681 and, if it is zero, lists the save line and stops instead of running.
- Line 9999 is the original cassette save line, which saves and verifies both the BASIC and the code.
Potential Issues
- Line 210 quits with
STOP : GO TO 9998, so theGO TOruns only afterCONTINUE. In this tape copy, line 9998 is now aREM, and continuing would run on into the save line at 9999. - The verify after saving a data file at line 160 is commented out, so saved files are not checked.
Until now, the issue’s download had this track only as a snapshot. It now also includes the track as a TAP converted from a Larken disk copy, with the PRINT #4 disk prefixes and the disk load line removed and the autostart set to line 1. The TAP includes the sample data file BGDATA.C1. It was tested in ZEsarUX.
Image Gallery
Source Code
0 REM THEN k GO SUB [ .\> " OR h PRINT * OR hN! THEN g RESTORE "<=h* OR h#N#" OR h LLIST "<>h> PRINT *<=hF#"<=h*<>h~#"<>h FOR w FOR LET = OVER COPY FOR GO SUB B FOR LET = PLAY <>l ERASE h ERASE h@@@@@qq LPRINT q LPRINT @ LPRINT LPRINT LPRINT @q @@ q@q@VAL qP@@ @@@@ @@@@ q@ LPRINT @q@@ LPRINT @@@@ LPRINT @@ @@ LPRINT qqqq LPRINT @USR @@@ LPRINT LPRINT q LPRINT LPRINT LPRINT ` LPRINT qq LPRINT LPRINT LPRINT q LPRINT LPRINT LPRINT qq LPRINT LPRINT q @ LPRINT q LPRINT qq LPRINT LPRINT qq LPRINT @@@@@@@@ @ @ LPRINT LPRINT @ @ LPRINT q`@@``` LPRINT qq LPRINT qqUSR qUSR qqUSR LPRINT q q LPRINT USR qqqqUSR LPRINT USR LPRINT LPRINT USR LPRINT qqq LPRINT qq LPRINT qqq LPRINT @@@@ LPRINT ` qq LPRINT qqUSR qqq q LPRINT q LPRINT qqqq LPRINT qqqqq LPRINT qqqq LPRINT LPRINT qq LPRINT LPRINT qqq LPRINT LPRINT USR qqUSR qq LPRINT LPRINT LPRINT LPRINT @@@@@qqqqq LPRINT qqqqq@qqqq LPRINT qqq@qqqqqq@@@ LPRINT @@ LPRINT LPRINT LPRINT @@ LPRINT LPRINT @ LPRINT q LIST 0@ LPRINT @P LIST LPRINT LPRINT q LPRINT LPRINT qq LPRINT LPRINT q q LPRINT LPRINT qq LPRINT LPRINT q LPRINT LPRINT ` USR LPRINT qq LPRINT LPRINT LPRINT qqq@USR @@ LPRINT qq LPRINT qqUSR qqUSR @@@@ LPRINT q LPRINT qqq LPRINT qqqq LPRINT qqq LPRINT LPRINT qq LPRINT LPRINT qq LPRINT LPRINT q LPRINT LPRINT LPRINT @ LPRINT @@@`qqqq LPRINT qqqq@qqq LPRINT qqq@qqqqq LPRINT LPRINT LPRINT @ LPRINT `@@USR @@` ` LPRINT ` USR @@`@@USR USR LPRINT USR LPRINT LPRINT LPRINT LPRINT LPRINT TOTAL EXPENDITURES OF 1989 AVERAGE PER MONTH 1
1 CLS : PRINT AT 8,10;"SUPER BUDGET";AT 10,2;"WRITTEN BY KRISTIAN BOISVERT";AT 12,8;"*1986 BYTE POWER"
2 PRINT AT 20,0;"STILL LOADING...": INK 7: PRINT AT 0,0;: PRINT #4: LOAD "BUDGET.C8"CODE : INK 0: PAPER 7: BORDER 7: PRINT AT 20,0;"PLEASE STOP TAPE...": FOR F=0 TO 10 STEP 2: BEEP .08,F: NEXT F
3 IF PEEK 23681=0 THEN PRINT AT 20,0;" ";AT 15,0;: LIST 9999: STOP
30 CLS : RANDOMIZE USR 48518: GO TO (PEEK 65534+256*PEEK 65535)
100 PRINT #1;AT 1,0;"1- SAVE, 2-LOAD"
110 LET C$=INKEY$: IF C$="" THEN GO TO 110
120 IF C$="2" THEN GO TO 180
121 IF C$<>"1" THEN GO TO 110
125 REM SAVE FILE
130 GO SUB 9000
140 IF A$="" THEN GO TO 130
150 PRINT #4: SAVE A$CODE 56658,8710
160 REM PRINT #1;AT 1,0;"REWIND TAPE TO VERIFY "+CHR$ 18+CHR$ 1+A$: PRINT AT 17,0;: VERIFY A$CODE
170 RANDOMIZE USR 48620: GO TO (PEEK 65534+256*PEEK 65535)
180 REM LOAD FILE
185 GO SUB 9000
190 PRINT #4: LOAD A$CODE 56658
195 RANDOMIZE USR 48620: GO TO (PEEK 65534+256*PEEK 65535)
200 REM QUIT
210 STOP : GO TO 9998
1000 GO SUB 8000
1010 RANDOMIZE USR 50539: GO TO (PEEK 65534+256*PEEK 65535)
1100 GO SUB 8000
1110 RANDOMIZE USR 55583: GO TO (PEEK 65534+256*PEEK 65535)
1200 GO SUB 8000
1210 RANDOMIZE USR 55064: GO TO (PEEK 65534+256*PEEK 65535)
1300 GO SUB 8000
1310 RANDOMIZE USR 53682: GO TO (PEEK 65534+256*PEEK 65535)
8000 REM COPY SCREEN
8010 COPY : LPRINT : LPRINT
8020 RETURN
9000 INPUT "FILE NAME:"; LINE A$: IF LEN A$>9 THEN GO TO 9000
9010 RETURN
9992 PRINT #4: SAVE "BUDGET.B8" LINE 1: PRINT #4: SAVE "BUDGET.C8"CODE 48518,8140
9998 PRINT #4: LOAD "L.B1"
9999 SAVE "BUDGET" LINE 1: SAVE "BUDGET"CODE 48518,8140: VERIFY "BUDGET": VERIFY "BUDGET"CODENote: Type-in program listings on this website use ZMAKEBAS notation for graphics characters.
