STARTRIP is a Star Trek–inspired strategy game in which the player commands the Enterprise across a toroidal 8×8 galaxy of sectors, each represented as an 8×8 parsec grid. The player manages energy, photon torpedoes, and shields while hunting Klingon ships, docking with starbases for resupply, and avoiding novas and supernovas. Game state for each sector is packed into a single integer per cell of the A(8,8) array, encoding Klingon count, starbase presence, and star count as hundreds, tens, and units digits respectively. Screen-position reading via PEEK of the display file address (lines 9000–9010) is used to detect what character occupies a given AT position before printing, allowing collision detection without a separate map array. Difficulty is controlled by the RA variable (1–6 star-rating), which scales the Klingon population, energy budget, and final score thresholds.
Program Analysis
Program Structure
The program is organised into functional blocks separated by REM statements, with command dispatch handled by a computed GOTO C*1000 at line 660. The main game loop runs from roughly line 400 to 660, with the following major sections:

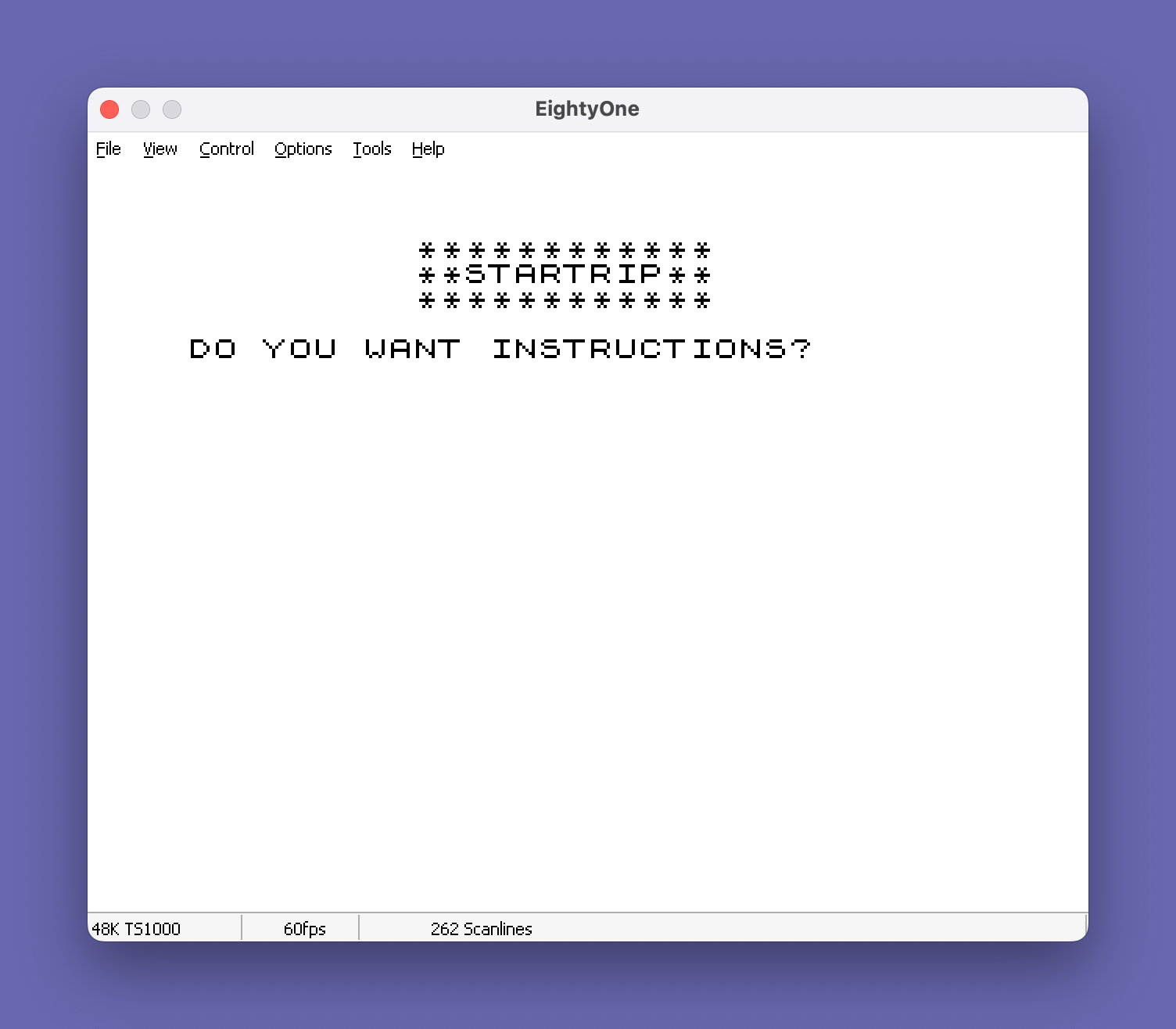

- Lines 5–19: Initialisation and title display (via
GOSUB 9300), string table load (GOSUB 9200) - Lines 30–214: Galaxy generation — populating the 8×8 sector array
- Lines 220–354: Current sector setup — placing the Enterprise, Klingons, starbase, and stars

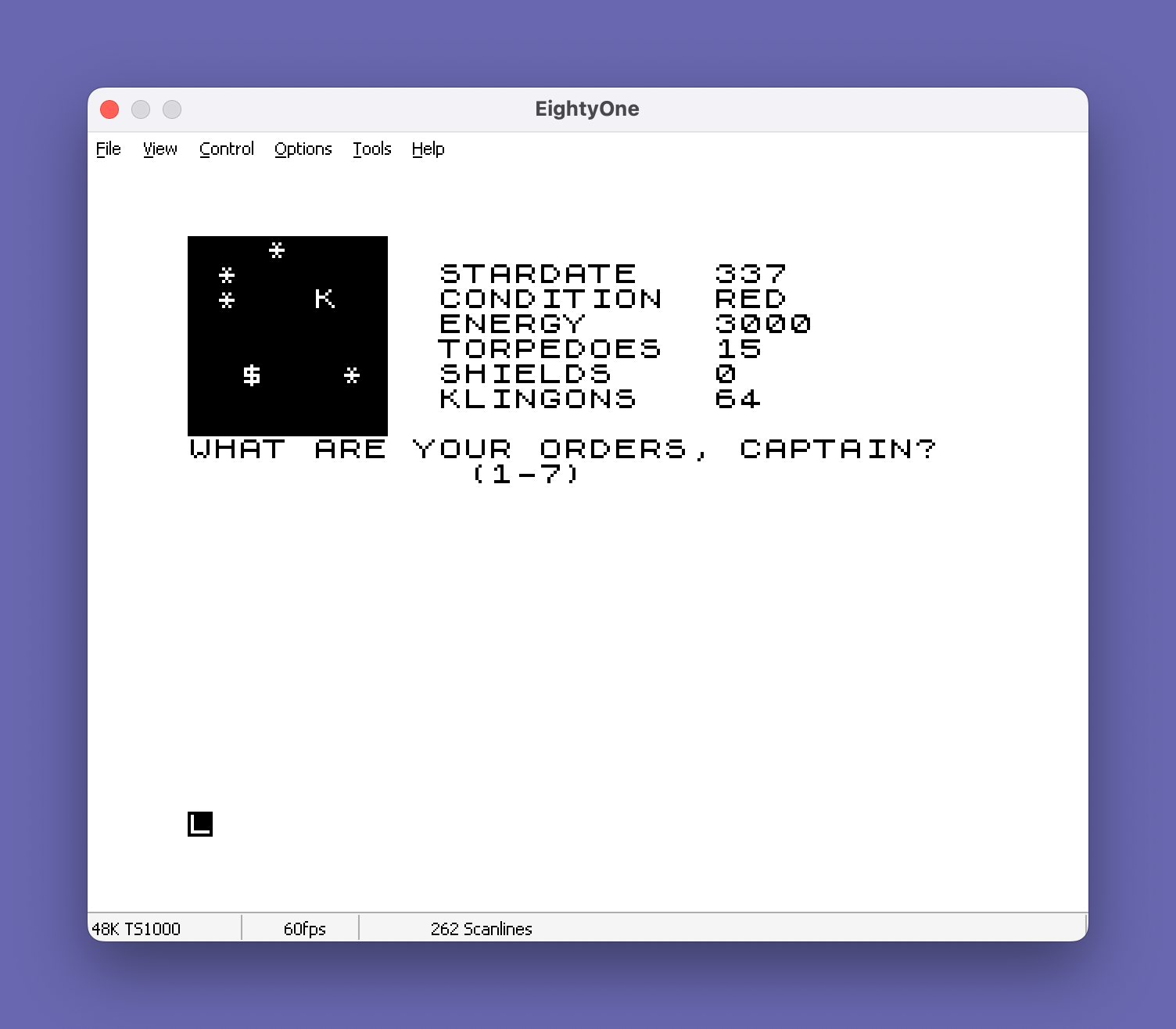

- Lines 400–660: Status display, docking check, and command input loop
- Lines 1000–1150: Helm (warp movement)
- Lines 2000–2140: Short-range scan (labelled “Long Range Scan” in the REM but displaying adjacent sectors)
- Lines 3000–3170: Phaser control
- Lines 4000–4160: Photon torpedo control
- Lines 5000–5060: Shield control

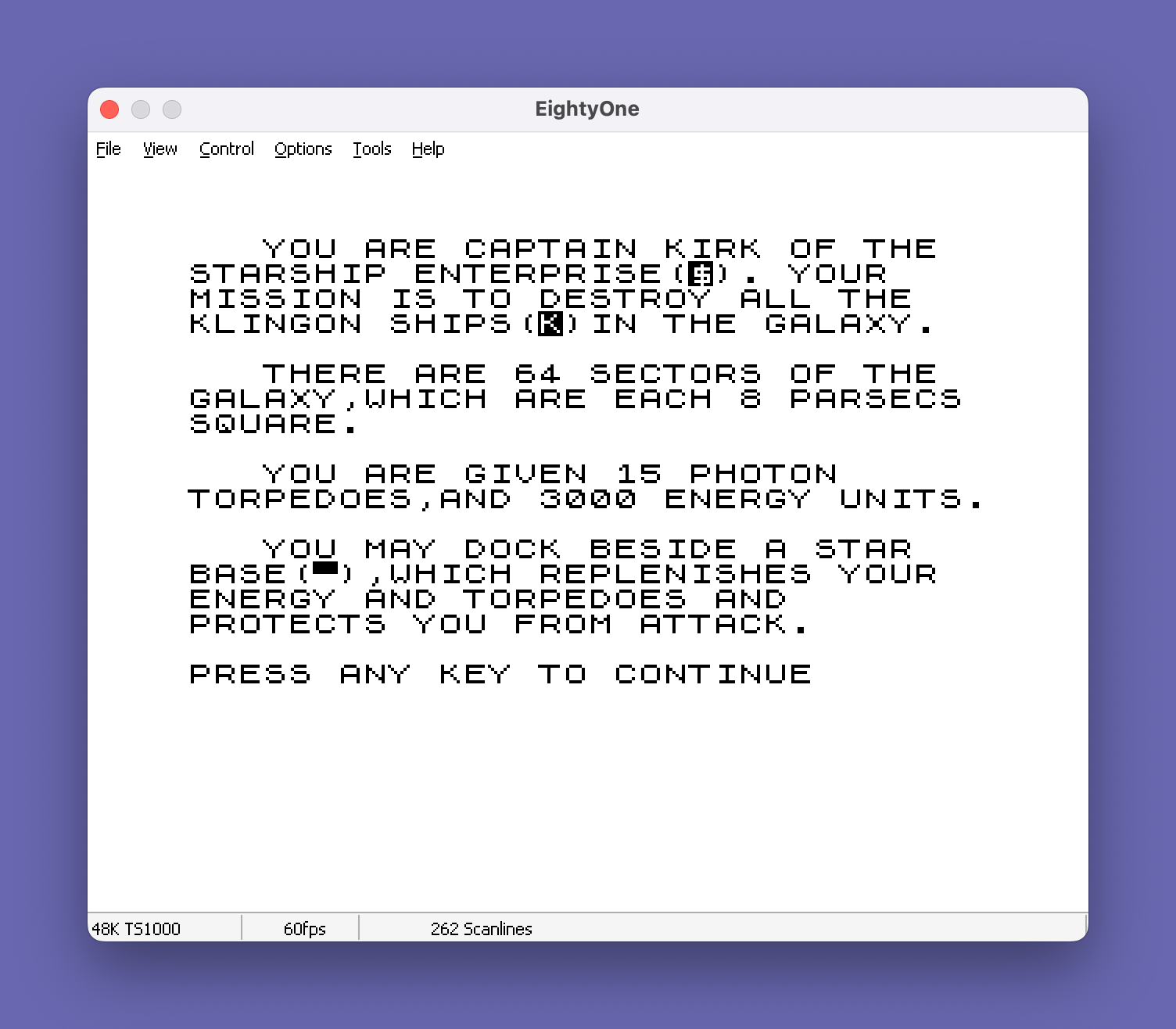

- Lines 6000–6140: Instructions
- Lines 7000–7010: Resignation
- Lines 8000–8590: Subroutines (distance calculation, Klingon kill, course vector, shield destruction)
- Lines 9000–9420: Utility subroutines and initialisation
- Lines 9890–9999: End-of-game scoring and rating
Galaxy and Sector Data Packing
Each element of the two-dimensional array A(8,8) stores three values packed into a single integer: 100*X + 10*Y + Z, where X is the number of Klingons (1 to RA), Y is 1 if a starbase is present (0 otherwise), and Z is the number of stars (1–5). Unpacking is performed with integer division and modulo arithmetic at lines 270–300. This is a classic space-saving technique that avoids the need for a three-dimensional array.
Screen-Peek Collision Detection
The subroutine at lines 9000–9010 reads the character code at the current cursor position directly from the display file:
9000 LET CH=PEEK (PEEK 16398+256*PEEK 16399)System variables at addresses 16398–16399 hold the address of the current print position in the display file. By issuing PRINT AT r,c; (with no output) and then calling this subroutine, the program determines what is already drawn at that cell. Character codes used as sentinels include 128 (space/empty), 3 (starbase graphic), 151 (star graphic), and 176 (Klingon graphic). This avoids maintaining a separate in-memory sector map.
Computed GOTO Dispatch
Command selection uses GOTO C*1000 at line 660, where C is an integer 1–7 entered by the player. This dispatches directly to line 1000 (helm), 2000 (scan), 3000 (phasers), 4000 (torpedoes), 5000 (shields), 6000 (instructions), or 7000 (resignation). Input is validated at line 658 to ensure C is an integer in range.
Toroidal Galaxy Wrapping
The galaxy wraps at its edges. Sector coordinates P and Q are kept in range 1–8 using the idiom at lines 240–250:
LET P=P-8*(P>8)+8*(P<1)The same pattern is applied to the scan subroutine at lines 2012–2014 for variables G and H. Boolean expressions evaluate to 1 (true) or 0 (false), making this a branchless modular wrap.
Movement and Sector Transition
Warp movement (lines 1070–1136) steps the ship one parsec at a time in a direction determined by the 8-point compass encoded as course 0–7. The course-to-vector translation at lines 8530–8590 sets M (row delta) and N (column delta) using conditional assignments. If the ship moves off the edge of the current sector, U is set to 1 and GOTO 230 regenerates the new sector; otherwise it lands within the current sector.
Difficulty Scaling
The player-chosen star-rating RA (1–6) controls several aspects of difficulty:
- Maximum Klingons per sector (
INT(RND*RA)+1) - Size of Klingon, position arrays (
DIM G(RA),DIM H(RA),DIM K(RA)) - Initial total energy budget:
TE=(RA+1)*8000 - Score thresholds at end-of-game, scaled by
(RA+7)/16
Scoring System
The final score at line 9906 is computed as:
S = PE + INT(TE/100/RA) + (KL-K)*10where PE is a penalty (negative values for destroying a starbase, crew casualties, or energy exhaustion), TE is remaining total energy divided by difficulty, KL is the initial Klingon count, and K is the survivors. Five rating tiers are checked sequentially at lines 9930–9980, each threshold a multiple of RA*200.
Notable Techniques and Anomalies
- The REM at line 1995 says “LONG RANGE SCAN” but the print at line 2000 says “SHORT RANGE SCAN” — the labels are transposed.
FAST(line 14) is called before galaxy generation to speed up the setup loop, andSLOW(line 228) re-enables normal display before sector rendering.- The string array
A$(13,33)stores all game messages with fixed-length padding. Random selection from subsets usesRND*N+offsetwith fractional indices, relying on array indexing truncation. - Line 9999 attempts to print all 13 rows of
A$in a loop up to 20, which will access undefined rows 14–20 — this is a latent bug that would cause an error if the game-over scoring branch reaches the excellent path. - Phaser damage to the player (lines 3131–3136) fires back based on remaining Klingon strength divided by distance, and there is a chance of triggering a Scottie damage message and further energy drain.
- The subroutine at line 8200 searches the Klingon position arrays to find which entry matches
G,H(the torpedo hit position), then calls8230to mark it destroyed — an unusual fall-through into a shared code path also used by phasers.
Key Variables
| Variable | Role |
|---|---|
A(8,8) | Galaxy sector data (packed Klingons/starbase/stars) |
G(RA), H(RA) | Row/column positions of Klingons in current sector |
K(RA) | Shield strength of each Klingon (negative = alive, 0 = dead) |
E | Enterprise energy |
TE | Total fleet energy pool (for docking replenishment) |
O | Photon torpedoes remaining |
S | Shield energy level |
T | Current stardate |
K | Total Klingons remaining in galaxy |
KL | Initial total Klingon count |
P, Q | Current sector coordinates |
A, B | Enterprise position within sector (row, col) |
RA | Difficulty rating (1–6) |
PE | Penalty score |
CH | Character code read from display file |
Content
Image Gallery
Source Code
5 REM (C)1981 BUG-BYTE
10 REM **STARTRIP**
11 LET T=0
12 GOSUB 9300
14 FAST
16 GOSUB 9200
18 LET PE=0
19 LET TE=(RA+1)*8000
20 LET K=0
30 LET T=INT (RND*200)+201
40 LET E=3000
50 LET O=15
60 LET S=0
90 LET L=T
100 DIM A(8,8)
125 REM **SET UP SECTORS**
130 FOR I=1 TO 8
140 FOR J=1 TO 8
150 LET Y=0
160 LET X=INT (RND*RA)+1
170 IF RND>.88 THEN LET Y=1
180 LET Z=INT (RND*5)+1
190 LET A(I,J)=100*X+10*Y+Z
200 LET K=K+X
210 NEXT J
212 NEXT I
214 LET KL=K
220 LET P=INT (RND*8)+1
225 LET Q=INT (RND*8)+1
228 SLOW
230 REM **SET UP CURRENT SECTOR
232 LET V=0
240 LET P=P-8*(P>8)+8*(P<1)
250 LET Q=Q-8*(Q>8)+8*(Q<1)
255 LET A=INT (RND*8)
258 LET B=INT (RND*8)
260 LET Z=A(P,Q)
270 LET X=INT (Z/100)
280 LET Z=Z-X*100
290 LET Y=INT (Z/10)
300 LET Z=Z-Y*10
302 DIM G(RA)
304 DIM H(RA)
306 DIM K(RA)
308 PRINT AT 0,0;
310 FOR I=1 TO 8
312 PRINT "% % % % % % % % "
314 NEXT I
316 PRINT AT A,B;"%$"
320 FOR I=1 TO X
321 LET K(I)=-200
322 LET G(I)=INT (RND*8)
324 LET H(I)=INT (RND*8)
326 PRINT AT G(I),H(I);
327 GOSUB 9000
328 IF CH<>128 THEN GOTO 322
330 PRINT "%K"
332 NEXT I
334 IF Y=0 THEN GOTO 344
336 PRINT AT INT (RND*8),INT (RND*8);
338 GOSUB 9000
340 IF CH<>128 THEN GOTO 336
342 PRINT "''"
344 FOR I=1 TO Z
346 PRINT AT INT (RND*8),INT (RND*8);
348 GOSUB 9000
350 IF CH<>128 THEN GOTO 346
352 PRINT "%*"
354 NEXT I
400 LET C$="GREEN"
402 IF E<=0 THEN GOTO 9800
410 IF X<>0 THEN LET C$="RED"
420 PRINT AT A,B-1+(B=0);
430 GOSUB 9000
440 IF CH=3 THEN LET C$="DOCKED"
442 PRINT AT A,B+1-(B=7);
444 GOSUB 9000
446 IF CH=3 THEN LET C$="DOCKED"
448 IF V=1 OR C$<>"DOCKED" THEN GOTO 550
450 LET TE=TE+E-3000
452 LET E=3000
453 IF TE>=0 THEN GOTO 458
454 PRINT "STARFLEET""S ENERGY BANKS EXHAUSTED."
456 GOTO 9900
458 LET O=15
460 LET V=1
550 PRINT AT 1,10;"STARDATE ";T
560 PRINT AT 2,10;"CONDITION ";C$;" "
570 PRINT AT 3,10;"ENERGY ";E;" "
580 PRINT AT 4,10;"TORPEDOES ";O;" "
590 PRINT AT 5,10;"SHIELDS ";S;" "
600 PRINT AT 6,10;"KLINGONS ";K;" "
610 GOSUB 9100
630 IF L=T OR C$="DOCKED" OR C$="GREEN" THEN GOTO 640
635 IF RND>.3 THEN GOTO 4152
640 IF K=0 THEN PRINT "WELL DONE,CAPTAIN-THE FEDERATION HAS BEEN SAVED"
645 IF K=0 THEN GOTO 9900
648 LET L=T-1
650 PRINT "WHAT ARE YOUR ORDERS, CAPTAIN? (1-7)"
655 INPUT C
658 IF C<0 OR C>7 OR C<>INT C THEN GOTO 655
659 IF RND>.75 THEN PRINT "SPOCK: ";A$(RND*3+10.5)
660 GOTO C*1000
995 REM **HELM CONTROL**
1000 GOSUB 8500
1010 PRINT "SULU: WARP FACTOR,CAPTAIN?(1-63)"
1020 INPUT W
1022 IF W>E THEN PRINT "SCOTTIE:YE OVERLOADIN"" THE ENERGY BANKS,CAP""N."
1030 IF W>E OR W<1 OR W>63 OR W<>INT W THEN GOTO 1010
1040 PRINT AT A,B;"% "
1050 LET E=E-W
1060 LET T=T+W
1070 FOR I=1 TO W
1080 LET U=1
1090 LET A=A+M
1100 LET B=B+N
1110 IF A<0 OR A>7 OR B<0 OR B>7 THEN GOTO 1120
1112 LET U=0
1113 PRINT AT A,B;
1114 GOSUB 9000
1115 IF CH=128 THEN GOTO 1120
1116 LET A=A-M
1117 LET B=B-N
1120 NEXT I
1130 IF U=0 THEN GOTO 1140
1132 LET Q=Q+INT (A/8)
1134 LET P=P+INT (B/8)
1136 GOTO 230
1140 PRINT AT A,B;"%$"
1150 GOTO 400
1995 REM **LONG RANGE SCAN**
2000 PRINT "SHORT RANGE SCAN"
2002 PRINT "%K''%* %K''%* %K''%*"
2005 FOR J=Q-1 TO Q+1
2010 FOR I=P-1 TO P+1
2012 LET G=I-8*(I>8)+8*(I<1)
2014 LET H=J-8*(J>8)+8*(J<1)
2020 LET U=A(G,H)
2030 IF INT (U/100)=0 THEN PRINT "0";
2040 IF INT (U/10)=0 THEN PRINT "0";
2050 PRINT U;" ";
2090 NEXT I
2100 PRINT
2110 NEXT J
2120 FOR D=1 TO 35
2130 NEXT D
2140 GOTO 610
2995 REM **PHASER CONTROL**
3000 PRINT "CHEKOV: PHASER ENERGY?"
3020 INPUT F
3030 IF E<F OR F<>INT F THEN GOTO 3000
3032 LET E=E-F
3035 IF X=0 THEN GOTO 3150
3040 LET F=F/X
3050 FOR I=1 TO RA
3060 IF K(I)=0 THEN GOTO 3140
3070 GOSUB 8000
3080 LET G=K(I)
3090 LET G=G+2*INT (F/D)
3100 IF G>=0 THEN GOSUB 8230
3110 IF G>=0 THEN GOTO 3140
3120 LET K(I)=G
3130 IF C$="DOCKED" THEN GOTO 3140
3131 LET G=-INT (G/D)
3132 LET S=S-G
3133 PRINT G;" HIT ON SHIELDS."
3134 IF G<100 THEN GOTO 3140
3135 PRINT "SCOTTIE: ";A$(RND*3+3.5);"CAP""N."
3136 LET E=E-INT (RND*G)*2
3140 NEXT I
3145 IF S<0 THEN GOTO 8100
3150 LET L=T
3160 LET A(P,Q)=A(P,Q)-(INT (A(P,Q)/100)-X)*100
3170 GOTO 400
3995 REM **TORPEDO CONTROL**
4000 IF O<1 THEN PRINT "SULU: NO TORPEDOES LEFT, SIR"
4002 IF O<1 THEN GOTO 650
4010 GOSUB 8500
4020 LET O=O-1
4030 LET G=A
4040 LET H=B
4050 FOR I=1 TO 7
4060 LET G=G+M
4070 LET H=H+N
4082 PRINT AT G,H;
4084 GOSUB 9000
4090 IF CH<>128 THEN GOTO 4110
4100 NEXT I
4110 IF CH<>3 THEN GOTO 4116
4111 PRINT AT G,H;"% "
4112 GOSUB 9100
4113 PRINT "SPOCK: WE HAVE DESTROYED A STAR BASE, CAPTAIN"
4114 LET PE=-200
4115 GOTO 9900
4116 IF CH<>151 THEN GOTO 4130
4118 PRINT AT G,H;"% "
4120 GOSUB 9100
4121 LET R=INT (RND*10)
4122 PRINT "STAR HAS GONE ";
4123 IF R<9 THEN GOTO 4127
4124 PRINT "SUPERNOVA"
4125 LET PE=-100
4126 GOTO 9900
4127 PRINT "NOVA"
4128 LET S=S-100
4129 GOTO 4152
4130 IF CH<>176 THEN GOTO 4150
4140 GOSUB 8200
4142 GOTO 4152
4150 GOSUB 9100
4152 LET F=0
4155 IF RND>.75 THEN PRINT "KLINGON MESSAGE:";A$(RND*4+6.5)
4160 GOTO 3032
4995 REM **SHIELD CONTROL**
5000 LET E=E+S
5020 PRINT "CHEKOV: SHIELD ENERGY, SIR?"
5030 INPUT S
5040 LET E=E-S
5050 IF E<1 THEN PRINT "SCOTTIE:THE ENERGY BANKS CANNO"" TAKE IT, CAP""N."
5052 IF E<1 THEN GOTO 5000
5060 GOTO 400
5995 REM **INSTRUCTIONS**
6000 CLS
6010 PRINT " YOU ARE CAPTAIN KIRK OF THE STARSHIP ENTERPRISE(%$). YOUR MISSION IS TO DESTROY ALL THE KLINGON SHIPS(%K)IN THE GALAXY."
6012 PRINT
6015 PRINT " THERE ARE 64 SECTORS OF THE GALAXY,WHICH ARE EACH 8 PARSECS SQUARE."
6017 PRINT
6020 PRINT " YOU ARE GIVEN 15 PHOTON TORPEDOES,AND 3000 ENERGY UNITS."
6021 PRINT
6022 PRINT " YOU MAY DOCK BESIDE A STAR BASE(''),WHICH REPLENISHES YOUR ENERGY AND TORPEDOES AND PROTECTS YOU FROM ATTACK."
6023 PRINT
6024 PRINT "PRESS ANY KEY TO CONTINUE"
6025 IF INKEY$="" THEN GOTO 6025
6030 CLS
6040 PRINT " THE COMMANDS ARE:"
6050 PRINT "1)HELM-TO MOVE TO ANY POINT IN THE GALAXY,GIVING THE COURSE ANDWARP(EACH UNIT MOVES 1 PARSEC)."
6055 PRINT
6060 PRINT "2)LONG RANGE SCAN-GIVES THE NO. OF %K''%* IN THE ADJACENT SECTORS."
6065 PRINT
6070 PRINT "3)PHASERS-THIS WEAPON ACTS IN ALL DIRECTIONS BUT ITS EFFECT DECREASES WITH DISTANCE."
6075 PRINT
6080 PRINT "4)PHOTON TORPEDOES-DIRECTIONAL WEAPON BUT A SINGLE BOLT WILL DESTROY A KLINGON AT ANY DIST."
6085 PRINT
6090 PRINT "5)SHIELDS-INPUT AMOUNT OF ENERGY DIVERTED TO THE SHIELDS."
6095 PRINT
6100 PRINT "6)INSTRUCTIONS"
6110 PRINT "7)RESIGNATION"
6120 PRINT "PRESS ANY KEY TO CONTINUE"
6125 IF INKEY$="" THEN GOTO 6125
6130 CLS
6132 IF T=0 THEN RETURN
6134 LET L=T
6140 GOTO 230
6995 REM **RESIGNATION**
7000 PRINT "STARFLEET: RESIGNATION ACCEPTED"
7010 GOTO 9900
7990 REM **SUBROUTINES**
7995 REM **CAL. KLINGON DIST.**
8000 LET Z=A-G(I)
8010 LET Y=B-H(I)
8020 LET D=INT SQR (Z*Z+Y*Y)
8030 RETURN
8095 REM ***********************
8100 PRINT "THE ENTERPRISE IS DEAD IN SPACE."
8110 IF S>-100 THEN GOTO 8120
8112 LET PE=-300
8114 PRINT " THERE ARE NO SURVIVERS."
8116 GOTO 9900
8120 IF S>-50 THEN GOTO 8130
8122 LET PE=-200
8124 PRINT "HALF THE CREW WERE KILLED."
8126 GOTO 9900
8130 LET PE=S*2
8132 PRINT -S;" OF THE CREW WERE KILLED."
8134 GOTO 9900
8195 REM ***********************
8200 FOR I=1 TO RA
8210 IF G(I)=G AND H(I)=H THEN GOTO 8230
8220 NEXT I
8230 LET K(I)=0
8235 PRINT AT G(I),H(I);"% "
8240 GOSUB 9100
8250 PRINT A$(RND*3+.5)
8260 LET X=X-1
8265 LET K=K-1
8270 RETURN
8495 REM **READ COURSE AND CAL**
8496 REM ** MOVEMENT VECTOR **
8500 PRINT "CHEKOV:COURSE, CAPTAIN?(O-7)"
8510 INPUT C
8520 IF C<0 OR C>7 OR C<>INT C THEN GOTO 8500
8530 LET M=0
8540 LET N=0
8550 IF C<2 OR C>6 THEN LET M=-1
8560 IF C>2 AND C<6 THEN LET M=1
8570 IF C<4 AND C>0 THEN LET N=1
8580 IF C>4 THEN LET N=-1
8590 RETURN
8595 REM ***********************
9000 LET CH=PEEK (PEEK 16398+256*PEEK 16399)
9010 RETURN
9100 PRINT AT 8,0;
9110 FOR J=1 TO 14
9120 PRINT " "
9130 NEXT J
9140 PRINT AT 8,0;
9150 RETURN
9200 DIM A$(13,33)
9202 LET A$(1)="SULU: BULLS EYE, CAPTAIN"
9204 LET A$(2)="SPOCK: KLINGON DESTROYED"
9206 LET A$(3)="CHEKOV: WE GOT HIM, SIR"
9208 LET A$(11)="HUMAN LOGIC FASCINATES ME"
9210 LET A$(12)="I CAN NEVER UNDERSTAND EMOTIONS"
9220 LET A$(13)="HUMAN BEHAVIOUR IS VERYIRRATIONAL"
9222 LET A$(4)="DILITHIUM CRYSTALS DAMAGED,"
9224 LET A$(5)="ANTIMATTER STABLISER BROKEN ,"
9226 LET A$(6)="WEE DAMAGE TO ENERGY BANKS ,"
9228 LET A$(7)="YOU DON""T STAND A CHANCE, KIRK"
9230 LET A$(8)="GIVE YOURSELF UP, KIRK"
9232 LET A$(9)="SURRENDER NOW, KIRK, OR DIE"
9234 LET A$(10)="YOUR PUNY RACE CAN""T KILL A FLY"
9250 RETURN
9300 PRINT TAB 9;"************"
9310 PRINT TAB 9;"**STARTRIP**"
9320 PRINT TAB 9;"************"
9330 PRINT
9340 PRINT "DO YOU WANT INSTRUCTIONS?"
9350 LET B$=INKEY$
9360 IF B$="" THEN GOTO 9350
9370 IF B$="Y" THEN GOSUB 6000
9372 PRINT
9380 PRINT "WHAT STAR-RATING ARE YOU, CAPTAIN? ( 6 IS THE HIGHEST )"
9390 INPUT RA
9400 IF RA>6 OR RA<1 OR RA<>INT RA THEN GOTO 9380
9410 CLS
9420 RETURN
9890 LET E=0
9892 PRINT "YOU HAVE NO ENERGY LEFT"
9894 LET PE=-100
9900 FOR D=1 TO 25
9902 NEXT D
9903 CLS
9904 PRINT TAB 10;"GAME OVER"
9906 LET S=PE+INT (TE/100/RA)+(KL-K)*10
9908 PRINT
9910 PRINT "YOUR SCORE IS ";S
9920 PRINT
9922 PRINT "YOU HAVE KILLED ";KL-K;" KLINGONS"
9924 PRINT
9928 LET RA=(RA+7)/16
9930 IF S>RA*200 THEN GOTO 9940
9932 PRINT "NOT VERY GOOD-YOU""LL HAVE TO DO BETTER THAN THAT."
9934 STOP
9940 IF S>RA*400 THEN GOTO 9950
9942 PRINT "NOT BAD, BUT YOU CAN STILL DO MUCH BETTER."
9944 STOP
9950 IF S>RA*600 THEN GOTO 9960
9952 PRINT "A WORTHY ATTEMPT, CAPTAIN."
9954 STOP
9960 IF S>RA*800 THEN GOTO 9970
9962 PRINT "VERY GOOD, YOU DESERVE PROMOTION"
9964 STOP
9970 IF S>RA*1000 THEN GOTO 9980
9972 PRINT "A CREDITABLE EXAMPLE FOR THE REST OF THE FLEET, WELL DONE."
9974 STOP
9980 PRINT "EXCELLENT, YOU DESERVE TO BE STARFLEET COMMANDER."
9997 FOR A=1 TO 20
9998 PRINT A$(A)
9999 NEXT ANote: Type-in program listings on this website use ZMAKEBAS notation for graphics characters.
