This program configures “Zprint80,” a machine code Centronics printer driver for the TS2068, developed by Zebra Systems, Inc. in 1985. It allows the user to select from two memory-resident versions of the driver (base address 27000 or 64000), choose from seven supported dot-matrix printers (Gemini, Memotech, Panasonic, Epson, Spirit-80, Prowriter), and select from four printer interfaces (Aerco, Tasman, A&J). The configuration process patches specific bytes within the loaded machine code block at address 64000 — including linefeed mode, output width, interface jump vectors, and printer control (Pcontrl) blocks — before saving the customized code back to tape. A custom character set is loaded from tape at address 51200, and a user-defined function using PEEK 23635/23636 computes the start address of the BASIC program area to invoke machine code routines via RANDOMIZE USR.
Program Analysis
Program Structure
The program is organized into clearly delineated subroutines separated by REM comments. Execution begins at line 100 after an auto-run, proceeding through an introductory splash screen, tape load of the target machine code, and a series of interactive configuration menus. The main flow is linear with subroutine calls for display management, configuration patching, and tape save/verify.
| Line Range | Purpose |
|---|---|
| 1–2 | Embedded machine code (REM line), DEF FN for program area address |
| 10–90 | Display utilities: header bars, screen clear subroutine (line 60) |
| 100–210 | Startup, character load, version selection, Zprnt code load |
| 220–390 | Printer and interface selection menus |
| 410–555 | Linefeed query, patch application, tape save, verify, completion |
| 800–836 | Unused interface POKE subroutines (Aerco, Tasman, A&J) |
| 900–940 | Page-flip / “press any key” subroutine |
| 1000–1200 | Address declarations and version-dependent jump vector values |
| 1300–1360 | DATA blocks: Pcontrl main and GRAF512 blocks per printer model |
| 1500–1650 | Configuration mod application (calls 1000, 2000, 2200) |
| 2000–2070 | Load main Pcontrl block from DATA into memory |
| 2200–2250 | Load GRAF512 block from DATA into memory |
| 2400–2440 | Save-error handler with retry |
| 2600–2670 | Copyright splash screen with machine code calls |
| 9900–9920 | Developer save routine (program + char set to tape) |
Machine Code Integration
Line 1 is a REM statement containing an embedded machine code routine. The function FN a() defined at line 2 computes the address of this code as PEEK 23635 + 256*PEEK 23636 + 5, which reads the PROG system variable (the start of the BASIC program area) and adds 5 bytes to skip past the line header into the body of the REM. The code is invoked repeatedly via RANDOMIZE USR FN a() at lines 26, 45, 2630, and 2644, with different parameters pre-loaded into system variables 23728, 23729, and 23723 before each call. This parameterized calling convention allows the single embedded routine to perform multiple display functions (likely text rendering using the custom character set loaded at 51200).
The Zprnt80 machine code module itself is always loaded to address 64000 regardless of which version is selected; only during the final SAVE step are the correct base-address bytes POKEd at offsets 64169–64170 to relocate the saved image to 27000 or 64000 as appropriate.
Configuration Patching via POKE
After loading the Zprnt code, the subroutine at line 1500 patches specific bytes at fixed offsets within the 64000-based image:
LNFDaddr(64647): linefeed character (10 or 0)WDTHaddr(64012): output column width (1–80)jmplo/jmphi(65128–65129): low/high bytes of the interface dispatch jump vectorport(65136): port selection byte (set to 251 for Tasman-c variant)
Jump vector values differ between the lo (27000-base) and hi (64000-base) versions and are set by the declaration block at lines 1060–1086, conditioned on v$.
Pcontrl DATA Block Loading
Lines 1300–1360 define printer control block DATA using a simple sentinel protocol: value 254 signals the end of one sub-record (advance to the next 8-byte slot within the Mreset region), and 255 terminates the entire block. The main block loader at lines 2010–2070 iterates m from Mreset (64599) in steps of 8, POKEing bytes until sentinel 255 is reached. The GRAF512 block loader at lines 2210–2250 is simpler, writing sequentially from Mreset+32 until 255. Different DATA lines are selected via RESTORE before calling these subroutines, enabling per-printer customization without duplicating the loader logic.
Key BASIC Idioms and Techniques
- The display clear subroutine at line 60 uses
DIM a$(544+32)to create a string of spaces, then prints it starting at row 4, efficiently blanking the lower portion of the screen. ON ERR GO TO 2400at line 501 traps tape verify failures, withON ERR RESETused to clear the handler after success or within the error handler itself.- Input validation at lines 260 and 335 uses
CODE k$comparisons against ASCII values rather than string comparisons, which is typical for tight key-range checks. - Line 435 converts lowercase to uppercase via
CHR$ (CODE k$-32), providing case-insensitive Y/N input. - The variable name
If(line 340) shadows the BASIC keywordIF; this is legal in Spectrum BASIC since variable names can begin with keyword letters as long as they are not standalone keywords — hereIFas an identifier stores the interface number.
Unused Subroutines
The subroutines at lines 800–836 (Aerco, Tasman, A&J POKE routines) are defined but never called from the main flow; the equivalent logic is inlined directly in the configuration mod routine at lines 1530–1560. Line 820 contains GO TO 810 which falls into the Tasman block — this appears to be a vestige of an earlier structure where separate entry points were used.
Developer Save Routine
Lines 9900–9920 form a developer-only section that saves the BASIC program itself with LINE 100 auto-run and separately saves the custom character data from address 51200 (2000 bytes). These lines are not reachable from the normal program flow and serve purely as the authoring/mastering tool.
Anomalies and Notes
- Lines 190 and 200 both load the selected Zprnt version to address 64000 regardless of choice — the distinction between lo and hi versions is deferred to the SAVE step (lines 480–490), where different relocation bytes are POKEd before saving.
- Line 50 contains a bare
RETURNthat is unreachable in normal flow, sitting between the flashing-prompt logic and theGO SUB 60subroutine. It appears to be a leftover fragment. - The
PAUSE 4e4at line 49 (approximately 444 seconds at 50 Hz) is effectively a very long wait rather than a true indefinite pause, functioning as a timeout before resetting the flash flag.
Content
Image Gallery
Source Code
1 REM !VAL \ FREE !CODE \ RETURN ( RETURN ( THEN \'. THEN AND *U\>"PEEK #( IF RESTORE !LEN \N!@ RESTORE !VAL \ FREE NEW o>& THEN % THEN gSTR$ RESTORE !VAL \ FREE LLIST RETURN 8 RETURN "TAB \ LLIST RESTORE FREE = OR RETURN \a8p\aSTR$ X COPY OR \ao> THEN % THEN gSTR$ RESTORE !ATTR \ FREE LLIST RETURN (j CAT OR RESTORE FREE W!ATTR \ FREE RETURN z(u*TAB \r#s+ OR STR$ "TAB \ LLIST #STR$ OR RESTORE x RETURN !!CODE \ THEN F PI GO SUB B"TAB \*TAB \ LPRINT PI GO SUB B"TAB \ LLIST STR$ !CODE \ THEN F*TAB \(PI GO SUB BA\ePI GO SUB B\ RETURN #"TAB \ LLIST #>"PEEK >= DATA \:'! THEN ? THEN THEN - THEN ? THEN THEN ,T]!ATTR \ FREE RETURN ( FLASH OR RESTORE FREE VERIFY *TAB \r#s+"TAB \ LLIST #STR$ *TAB \ RETURN PI GO SUB B"TAB \ LLIST #>"PEEK >=\b LLIST #>"PEEK >=\bxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
2 DEF FN a()=PEEK 23635+256*PEEK 23636+5
10 BORDER 6: PAPER 6: CLS
12 LET x=4
18 PRINT AT 0,0; PAPER x;" "
20 PRINT AT 1,0; PAPER x;" "
22 PRINT AT 2,0; PAPER x;" "
23 PRINT AT 3,0; PAPER x;" "
24 POKE 23728,1: POKE 23729,1: POKE 23723,2
26 RANDOMIZE USR FN a()
28 REM "Zprint80 Customization Program"
30 PLOT 0,175: DRAW 255,0
40 PLOT 0,144: DRAW 255,0
42 LET f=1: GO SUB 60
44 POKE 23728,11: POKE 23729,3: POKE 23723,3
45 RANDOMIZE USR FN a()
46 REM "STOP THE TAPE"
47 FOR n=1 TO 6: BEEP .1,-30: PAUSE 5: NEXT n
48 PRINT AT 14,0; FLASH f;" Press ENTER to proceed"
49 PAUSE 4e4: LET f=0
50 RETURN
60 DIM a$(544+32)
70 PRINT AT 4,0; FLASH f;a$
80 PRINT AT 5,0;
90 RETURN
100 REM main start
101 GO SUB 2600: INK 2: LOAD "chars"CODE 51200: POKE 23607,199: INK 0
110 GO SUB 10
115 IF INKEY$>"" THEN GO TO 115
120 GO SUB 60
130 PRINT " The purpose of this program is to allow you to configure the 'Zprnt80' machine code to work with your particular printer and printer interface, and set LPRINT/LLIST output width appropriately for your desired application."
140 PRINT ,," 'Zprnt80' comes in two versions; one resides in low memory at address 27000, the other in high memory at address 64000. Both versions are 1300 bytes long."
150 GO SUB 900
160 PRINT ,,,,,," So which version do you want to LOAD from Tape and configure?",,,,,," 1 = ""Zprnt-lo"" (base=27000)",,," 2 = ""Zprnt-hi"" (base=64000)"
170 PRINT AT 21,0; INVERSE 1;" press no# to select "
180 LET k$=INKEY$: IF k$="" THEN GO TO 180
181 IF k$<>"1" AND k$<>"2" THEN GO TO 180
182 GO SUB 60
184 PRINT AT 10,0;" Start the tape so your"," selected 'Zprnt' machine"," code module can load"
190 IF k$="1" THEN LOAD "Zprnt-lo"CODE 64000
200 IF k$="2" THEN LOAD "Zprnt-hi"CODE 64000
210 LET v$=k$
220 GO SUB 60
230 PRINT AT 7,0;" Which printer do you use?"
240 PRINT ,,,," 1 = Gemini 10X"," 2 = Gemini SG10"," 3 = Memotech"," 4 = Panasonic"," 5 = Epson RX/FX"," 6 = Spirit-80"," 7 = Prowriter 8510"
250 PRINT AT 21,0; INVERSE 1;" press no# to select "
260 LET k$=INKEY$: IF CODE k$<49 OR CODE k$>55 THEN GO TO 260
270 LET prntr=CODE k$-48
300 GO SUB 60
305 IF INKEY$>"" THEN GO TO 305
310 PRINT AT 8,0;" Which printer interface"," do you use?"
315 PRINT AT 12,0;" 1 = Aerco"," 2 = Tasman-b"," 3 = Tasman-c"," 4 = A & J"
320 PRINT AT 21,0; INVERSE 1;" press no# to select "
330 LET k$=INKEY$: IF k$="" THEN GO TO 330
335 IF k$<>"1" AND k$<>"2" AND k$<>"3" AND k$<>"4" THEN GO TO 330
340 LET If=CODE k$-48
350 GO SUB 60
360 PRINT AT 11,0;" What printing width would you"," like for LPRINT/LLIST output?"
370 INPUT "Width?";k
380 LET wdth=k
390 IF wdth<1 OR wdth>80 THEN GO TO 370
410 GO SUB 60
420 PRINT AT 6,0;" Many printers come from the factory setup to provide an automatic linefeed after each carriage return. Usually you can enable/disable this auto linefeed feature via a DIP switch. If auto-linefeed is enabled on your printer you will not want the 'Zprnt' software to provide a linefeed code."
430 INPUT "Should 'Zprint80' provide a linefeed?(y or n)";k$
435 IF CODE k$>97 THEN LET k$=CHR$ (CODE k$-32)
440 IF k$<>"Y" AND k$<>"N" THEN GO TO 430
450 IF k$="Y" THEN LET lnfd=10
452 IF k$="N" THEN LET lnfd=0
455 GO SUB 60
456 PRINT AT 21,0; FLASH 1;"Please Wait, making mods to code"
457 GO SUB 1500
460 GO SUB 60
470 PRINT AT 8,0;" You have finished the configuration process, so put a blank tape in your recorder, start recording and press any key to SAVE your custom version of the 'Zprnt' code."
480 IF v$="1" THEN POKE 64169,134: POKE 64170,105: SAVE "zprnt-lo"CODE 64000,1300
490 IF v$="2" THEN POKE 64169,14: POKE 64170,250: SAVE "zprnt-hi"CODE 64000,1300
495 GO SUB 60
500 PRINT AT 21,0; FLASH 1;"Rewind Tape and Play for VERIFY "
501 ON ERR GO TO 2400
502 PRINT AT 5,0;: INK 6: VERIFY ""CODE : INK 0
503 ON ERR RESET
510 GO SUB 60
520 PRINT AT 7,0;" The Tape save was good. You now have a custom configured version of the 'Zprnt' code on Tape. In the future use the following command to LOAD it ..."
530 IF v$="1" THEN PRINT ,,,," < LOAD ""zprnt-lo"" CODE 27000 >"
540 IF v$="2" THEN PRINT ,,,," < LOAD ""zprnt-hi"" CODE 64000 >"
550 PRINT AT 21,0; INVERSE 1;" Customization is now Complete "
555 GO TO 555
799 STOP
800 REM Aerco
802 POKE jmplo,aercolo
804 POKE jmphi,aercohi
806 RETURN
810 REM Tasman
812 POKE jmplo,taslo
813 POKE jmphi,tashi
814 IF k$="3" THEN POKE port,251
817 RETURN
820 GO TO 810
830 REM A & J
832 POKE jmplo,ajlo
834 POKE jmphi,ajhi
836 RETURN
900 REM page flip
910 PRINT AT 21,0; INVERSE 1;" press any key to continue "
920 IF INKEY$="" THEN GO TO 920
930 GO SUB 60
940 RETURN
1000 REM Declarations
1005 LET Mreset=64599
1010 LET lNFDaddr=64647
1020 LET WDTHaddr=64012
1030 LET jmplo=65128
1040 LET jmphi=65129

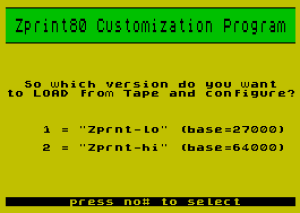

1050 LET port=65136
1060 IF v$="1" THEN LET taslo=226
1061 IF v$="1" THEN LET tashi=109
1062 IF v$="2" THEN LET taslo=106
1063 IF v$="2" THEN LET tashi=254
1070 IF v$="1" THEN LET aercolo=2
1071 IF v$="1" THEN LET aercohi=110
1072 IF v$="2" THEN LET aercolo=138
1073 IF v$="2" THEN LET aercohi=254
1080 IF v$="1" THEN LET ajlo=20
1082 IF v$="1" THEN LET ajhi=110
1084 IF v$="2" THEN LET ajlo=156
1086 IF v$="2" THEN LET ajhi=254
1200 RETURN
1300 REM Pcontrl Blocks
1310 DATA 2,27,64,254,4,27,76,192,3,254,3,27,65,6,254,3,27,65,8,255: REM common Main block
1320 DATA 11,27,68,21,0,9,0,0,27,76,0,2,255: REM GRAF512 for Mem/Pan/Spir80
1330 DATA 11,27,77,21,0,0,0,0,27,76,0,2,255: REM GRAF512 for Gem 10X/SG10
1340 DATA 11,27,108,21,0,0,0,0,27,76,0,2,255: REM GRAF512 for Epson RX/FX
1350 DATA 13,27,40,48,50,49,46,9,27,83,48,53,49,50,255: REM GRAF512 for Prowr 8510
1360 DATA 2,27,62,254,6,27,83,48,57,54,48,254,4,27,84,49,50,254,4,27,84,49,54,255: REM Prowr Main block
1500 REM Cofiguration Mods
1502 GO SUB 1000
1510 POKE LNFDaddr,lnfd
1520 POKE WDTHaddr,wdth
1530 IF IF=1 THEN POKE jmplo,aercolo: POKE jmphi,aercohi
1540 IF IF=2 OR IF=3 THEN POKE jmplo,taslo: POKE jmphi,tashi
1550 IF IF=3 THEN POKE port,251
1560 IF IF=4 THEN POKE jmplo,ajlo: POKE jmphi,ajhi
1570 IF prntr<=6 THEN RESTORE 1310
1580 IF prntr=7 THEN RESTORE 1360
1590 GO SUB 2000
1600 IF prntr=3 OR prntr=4 OR prntr=6 THEN RESTORE 1320
1610 IF prntr=1 OR prntr=2 THEN RESTORE 1330
1620 IF prntr=7 THEN RESTORE 1350
1630 IF prntr=5 THEN RESTORE 1340
1640 GO SUB 2200
1650 RETURN
2000 REM Load Main Pcntrl Blck
2010 FOR m=Mreset TO Mreset+31 STEP 8
2020 LET Daddr=m
2030 READ n: IF n=254 THEN GO TO 2060
2040 IF n=255 THEN RETURN
2050 POKE Daddr,n: LET Daddr=Daddr+1: GO TO 2030
2060 NEXT m
2070 RETURN
2200 REM Load GRAF512 block
2210 LET m=Mreset+32
2220 READ n
2230 IF n=255 THEN RETURN
2240 POKE m,n: LET m=m+1
2250 GO TO 2220
2400 REM Save Error
2410 ON ERR RESET
2420 INK 0: GO SUB 60
2430 PRINT AT 10,0;" SAVE was Bad!",,," Press ENTER to try again"
2440 PAUSE 4e4: GO TO 460
2600 REM Copyrigt message
2610 BORDER 2: PAPER 2: INK 7: CLS
2620 POKE 23728,3: POKE 23729,2: POKE 23723,3
2630 RANDOMIZE USR FN a()
2640 REM "** Zprint80 **"
2641 PLOT 10,125: DRAW 235,0: PLOT 10,162: DRAW 235,0
2642 POKE 23728,8: POKE 23729,0: POKE 23723,2
2644 RANDOMIZE USR FN a()
2646 REM " Centronics Printer Support"
2650 PRINT AT 13,8;"Copyright \* 1985"
2660 PRINT ,," ZEBRA SYSTEMS, INC."
2670 RETURN
9900 REM Save to Tape
9910 SAVE "customize" LINE 100
9920 SAVE "chars"CODE 51200,2000Note: Type-in program listings on this website use ZMAKEBAS notation for graphics characters.
