TypaLot is a word processor that keeps text in a string array of 64-character lines. You write new text, list it, edit lines, wipe them, file the text to tape and load it back, and print it. Commands are single letters (Help, List, Load, File, Print, Wipe and others), and alternative keys such as the keyword keys LIST, LOAD and SAVE work too. Help pages explain each command.
Two versions are on the tape. The base TypaLot (©1984 The WIDJUP Co., by William J. Pedersen) loads a 768-byte rotated character set, Chars.CW, used for printing. TypaLot J1 (©1986) adds a printer-interface front end and loads a 2,048-byte block of characters and machine code, C&M/L.CJ. The J1 BASIC can also save and load long texts as a series of 16-line array files.
The BASIC programs came from TTSUC library disk L-43, a collection of Pedersen’s WIDJUP programs. The code files did not read from that disk and were taken from the WIDJUP issue of the UPDATE magazine disk. Two more variants on the L-43 disk, TypaLot GB and TypaLot C, are not included because their code files are missing.
Program Analysis
Structure
Both programs start at line 4008, which loads the code block and then shows the start-up screen. The text lives in Z$(); lines 5000–5009 of the base program can regenerate the rotated character set from the ROM font, writing it to 59904.
Notable Techniques
- The rotated character set is built by reading each ROM character bit by bit into an 8×8 array and POKEing the rotated bytes.
- TypaLot J1 uses variables such as
z0,oneandtwoin place of numeric literals to save memory. - J1’s line 7777 onward calculates window settings for the printer interface and prints the matching command string and POKEs.
Both programs came from a Larken disk and were converted to load from tape: the disk prefixes were removed from the save and code-load lines. They were tested in ZEsarUX: the start-up and help screens of both versions work.
Image Gallery
Source Code
1 ON ERR GO TO 500: GO TO e
500 ON ERR RESET
1000 REM TypaLot
1001 POKE 23607,60: LET Ln=1: LET Add=1021: LET List=1023: LET File=1026: LET Load=1037: LET Print=1043: LET Insert=1053: LET Delete=1055: LET Wipe=1057: LET Help=2079: LET Edit=1091: LET Copy=1096: LET Key=1098: LET Save=4000
1002 LET J=Load: LET A=Add: LET L=List: LET K=L: LET F=File: LET S=F: LET P=Print: LET I=Insert: LET D=Delete: LET W=Wipe: LET X=W: LET H=Help: LET E=Edit: LET Z=Copy

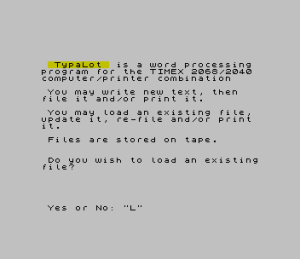

1003 CLS : PRINT ''" TypaLot is a word processing program for the TIMEX 2068/2040 computer/printer combination"''" You may write new text, then file it and/or print it."''" You may load an existing file, update it, re-file and/or print it."''" Files are stored on tape."
1004 PRINT ''" Do you wish to load an existingfile?": INPUT " Yes or No: ";W$: IF LEN W$ THEN IF W$(1)="Y" OR W$(1)="y" THEN GO TO Load

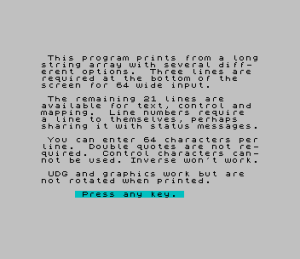

1005 CLS : PRINT '" This program prints from a longstring array with several diff- erent options. Three lines are required at the bottom of the screen for 64 wide input."
1006 PRINT '" The remaining 21 lines are available for text, control and mapping. Line numbers require a line to themselves, perhaps sharing it with status messages."''" You can enter 64 characters perline. Double quotes are not re-quired. Control characters can-not be used. Inverse won't work."''" UDG and graphics work but are not rotated when printed.": GO SUB Key
1007 PAUSE 0: CLS : PRINT " This word processing program isa simple one. It does not have many of the features you would expect of those running printersother than the TIMEX 2040."
1008 PRINT '" It prints out sideways on the 2040. This allows you to print full width sub-pages of sixteen double spaced lines or thirty two single spaced less readable lines."
1009 PRINT '" Except for underlining, you cando everything you can do with a typewriter and a lot more."'" You can write, edit, and file letters and other text records for immediate printing and/or recall at a later date.": GO SUB Key
1010 PAUSE 0: CLS : PRINT '" There is no manual needed for you to learn how to use this word processer. Normal, famil- iar BASIC commands are all that are required. A HELP screen is provided. Use GOTO Help to see what services are available if you need a reminder."
1011 PRINT FLASH 1;" There is one thing you will need to remember without HELP.", FLASH 0'" To exit the writing routine, itis necessary to press CAPS SHIFTand 6 (down cursor) together."'" This is the only BREAK that works when INPUT LINE has been used to suppress the quote marksaround input and eliminate the need to use double quotes in thetext input.": GO SUB Key: PAUSE 0
1012 CLS : PRINT '" Up to 320 lines of 64 printablecharacters(including blanks) canbe accommodated; but if you do not use them, the stored files will be too large because they contain lots of blank space."
1013 PRINT '" This doesn't hurt if you have tape and time to spare, but use fewer lines if you know how longyour text will be, but don't be too stingy."''" To center text, merely enter itand then input spaces in front of it until it is split evenly in two edit lines.": LET Lines=320
1014 INPUT "320 line file? Yes or No:";W$: IF LEN W$ THEN IF W$(1)="N" OR W$(1)="n" THEN PRINT '" You have chosen to define your own file size.": GO TO 1016
1015 PRINT '" The default file size applies.": GO TO 1018
1016 ON ERR GO TO 1016: INPUT "How many lines? ";Lines: IF Lines>320 THEN PRINT '" More than 320 lines cannot be assigned. 320 lines is assumed.": LET Lines=320
1017 IF Lines<64 THEN PRINT '" Less than 64 lines is not wise.64 lines is assumed.": LET Lines=64
1018 LET Lines=32*(1+INT ((Lines-1)/32)): PRINT '" Your file size is ";Lines;" lines."
1019 ON ERR RESET : PAUSE 300
1020 DIM Z$(Lines+1,64): LET Z$(1,1)="`": LET Ln=2: CLS : PRINT AT 9,0;" Start entering your text, up to 64 characters per line."''" (Use down cursor to exit.)"''"LINE"
1021 REM Add, A(NEW)
1022 LET B=6+Ln-2*INT (Ln/2): PRINT PAPER B;Ln-1;" WARNING! Last line. Edit before using." AND Ln=Lines+1,,: ON ERR GO TO 1065: INPUT LINE Z$(Ln): ON ERR RESET : PRINT PAPER B;Z$(Ln): LET Ln=Ln+1: GO TO A
1023 REM List, L(LIST)
1024 POKE 23607,60: INPUT "Show from what line? ";B
1025 CLS : FOR u=B+1 TO Ln-1: PRINT PAPER 6+u-2*INT (u/2);u-1,,Z$(u): NEXT u: GO TO A
1026 REM File, F, S(SAVE)
1027 CLS : PRINT '" Your text file will be stored after you give it a name."'" The name you use need not be restricted to alpha-numeric characters. All special char- acters are permitted, such as ] # & / * ` etc., and embedded blanks. A maximum length of ten characters is permitted."
1028 PRINT '" Confidential files can be"'" encrypted, but you will have to add your own code/decode"'" routines."''" Each file is labeled with the name, length, and lines used."'" You might add encryption key, class code, etc. to the label.": GO SUB Key
1029 PAUSE 0: CLS : PRINT '''" Check your program locator to be sure you do not overwrite any other records."''" Write down the name you give it and the starting and ending locations. Always allow a few seconds between records."
1030 IF Z$(1,1)="`" THEN INPUT "FILE CREATION DATE? "; LINE D$: LET Z$(1)="": LET Z$(1,20 TO 32)=D$: INPUT "Your FILENAME? "; LINE X$: LET X$=X$+" ": LET X$=X$( TO 10): LET Z$(1, TO 10)=X$
1031 LET Z$(1,15-LEN STR$ (Ln-2) TO 18)=STR$ (Ln-2)+"/"+STR$ Lines
1032 CLS : PRINT AT 11,0;"SAVING FILENAME ";X$'',"DATE ";D$
1033 PRINT ,"FILESIZE=";Lines',Ln-2;" lines used."
1034 SAVE X$ DATA Z$(): PRINT ''Z$(1);" has been filed.": PAUSE 360: GO TO H
1037 REM Load
1038 CLS : PRINT ''" Position the tape to desired file. Start tape and press any key."''" If file not found, BREAK and GO TO Help.": PAUSE 0: PRINT ''" File is being loaded.": DIM Z$(1): LOAD "" DATA Z$()
1039 GO SUB 1060: PRINT AT 19,3; FLASH 1;" STOP RECORDER "
1040 ON ERR GO TO 1042
1041 LET X$=Z$(1, TO 10): LET Ln=VAL Z$(1,12 TO 14)+2: LET Lines=VAL Z$(1,16 TO 18)
1042 ON ERR RESET : PAUSE 360: LET B=0: GO TO K+2
1043 REM Print, P(PRINT)
1044 POKE 23607,60: LET B=INT ((Ln+13)/16): LET W1=INT ((Ln+29)/32)
1045 CLS : PRINT '" Double line spacing generates ";B;" subsheet"+("s" AND B>1);" of output; single"'" spacing ";W1;"."''" Each subsheet is 32 lines of 64 characters, between columns of colons which mark the edges of a standard 8 1/2 x 11 inch sheet of letter paper."
1046 PRINT '" The 2040 normally prints 10 characters and 8 lines/inch. In this case, it effectively prints 8 characters and 10 lines/inch."''" Three subsheets gives 48/96 lines of text, nicely filling one full letter page.": GO SUB Key
1047 PAUSE 0: CLS : LET Step=16: PRINT AT 12,2;"Though it is not recommended, do you want single spacing?": INPUT "Yes or No: "; LINE W$: IF LEN W$ THEN IF W$="Y" OR W$="y" THEN LET B=W1: LET Step=32
1048 LPRINT Z$(1): POKE 23607,233
1049 FOR u=0 TO Step*(B-1) STEP Step: LPRINT ":::::::::::::::::::::::::::::::: "'
1050 FOR v=1 TO 64: LET H$=""
1051 FOR g=Step+1 TO 2 STEP -1: LET H$=H$+(" " AND Step=16)+Z$(u+g,v): NEXT g: LPRINT H$: NEXT v: LPRINT '': NEXT u: LPRINT "::::::::::::::::::::::::::::::::"''''
1052 POKE 23607,60: CLS : PRINT '''''"Job Complete.": STOP : GO TO 1048
1053 REM Insert, I(IN)
1054 INPUT "Insert after line? ";u: FOR v=Ln+1 TO u+2 STEP -1: LET Z$(v+1)=Z$(v): NEXT v: LET Z$(u+2)="": LET Ln=Ln+1: GO TO 1095
1055 REM Delete, D
1056 INPUT "Delete line? ";u: FOR v=u+2 TO Ln+2: LET Z$(v-1)=Z$(v): NEXT v: LET Ln=Ln-1: LET u=u-1: GO TO 1095
1057 REM Clear, C, X(CLEAR)
1058 CLS : PRINT AT 10,0;" You have called for starting over. Just in case you didn't intend to, this verification hasbeen provided."''" Press CONT and ENTER to verify."
1059 STOP : LET Ln=1: DIM Z$(64,64): CLS : GO TO 1003
1060 REM File label recovery
1061 PRINT INK 2'"Filename: ";Z$(1, TO 10)'"Creation date: ";Z$(1,20 TO 32)'"Lines used/File size = ";Z$(1,12 TO 19)
1064 RETURN
1065 IF PEEK 23739=3 THEN PRINT #1;"To continue, store this file andcreate another. Press any key, then CONT to file.": ON ERR RESET : PAUSE 0: STOP : GO TO f
1066 ON ERR RESET : STOP : GO TO h
1091 REM Edit, E
1092 INPUT "Edit Which Line? ";u
1093 PRINT INK 2;u,,Z$(u+1): INPUT LINE Z$(u+1)
1094 PRINT PAPER (6+u-2*INT (u/2));u,,Z$(u+1): INPUT "Edit Another Line?"'" Yes or No: "; LINE W$: IF LEN W$ THEN IF W$="Y" OR W$="y" THEN GO TO E
1095 LET B=u-(4 AND u>=4): GO TO K+2
1096 REM Copy, C, Z(COPY)
1097 FOR u=1 TO Ln: LPRINT Z$(u): NEXT u: STOP
1098 REM $ Key
1099 PRINT AT 21,5;" Press any key. ": RETURN
2079 REM Help, H
2080 CLS : POKE 23607,60: PRINT '" HELP page 1 "''" The available services are: "''"Help This service",''"List Display any part of text",''"Load Load a new text file from cassette tape",,''"File Save your named and dated text file to cassette tape",
2081 PRINT ''"Print Print text file to TIMEX sinclair 2040 printer",''"Wipe Erase and start over",: GO SUB Key
2083 PAUSE 0: CLS : PRINT '" HELP page 2 "''" Available services (Cont) "'
2084 PRINT '"Insert Insert a blank line",''"Delete Delete any line",''"Edit Revise any lines",''"Add Continue writing",'
2085 PRINT ''" Operations: "''" To use any of these services:"''" GOTO (Service) ENTER ": GO SUB Key
2086 PAUSE 0: CLS : PRINT '" HELP page 3 "''" Operations (Cont) "''" Operations can only be called when the program is halted. This may require breaking out ofprogram execution."' FLASH 1'" When writing, the only BREAK that works is: CAPS SHIFT 6 (down cursor). Remember this!",'
2087 PRINT '" Do not use inverse video nor color commands, when writing."''" To exit this HELP service, use CAPS SHIFT BREAK ."
2088 GO SUB Key
2089 PAUSE 0: CLS : PRINT '" HELP page 4 "''"WIDJUP Cassette"'"T50WDS84B TypaLot $12.50"''"*1984 The WIDJUP Co."'"By William J. Pedersen"'"All rights reserved."
2090 PRINT '"Conveniences: Alternate keying."'" Help or H"'" List or L or K(LIST)"'" Load or J(LOAD)"'" File or F or S(SAVE)"'" Print or P(PRINT)"'" Wipe or W or X(CLEAR)"'" Insert or I"'" Delete or D"'" Edit or E or 1(EDIT)"'" Add or A"
2091 GO SUB Key: PAUSE 0: GO TO H
4000 REM Save
4001 CLS : PRINT AT 5,5; FLASH 1;" SAVING ""TypaLot"" "
4002 DIM Z$(2,64): LET Ln=2
4004 SAVE "TypaL.BW" LINE 4008
4005 PRINT AT 5,0; OVER 1; FLASH 0,,AT 7,5; FLASH 1;" SAVING "" Characters "" ": SAVE "Chars.CW" CODE 59904,768
4006 PRINT AT 7,0; OVER 1; FLASH 0,,AT 9,5;" Program has been saved.";AT 14,8; FLASH 1;" STOP RECORDER "
4007 STOP : GO TO Save
4008 REM Load Characters
4009 PRINT '""" Characters "" are being loaded."
4010 LOAD "Chars.CW" CODE 59904,768
4011 PRINT AT 14,8; FLASH 1;" STOP RECORDER ": GO SUB Key: PAUSE 0: GO TO 1000
5000 REM Generate Characters
5001 PAPER 7: INK 0: BORDER 4: CLS : PRINT '" The rotated character set is being generated."''" Please stand by."''
5002 FOR u=0 TO 95: DIM Z(8,8)
5003 FOR v=0 TO 7: LET Byte=PEEK (8*u+v+15616)
5004 FOR g=0 TO 7: LET B=INT (Byte/2)
5005 IF Byte>2*B THEN LET z(8-g,8-v)=1
5006 LET Byte=B: NEXT g: NEXT v
5007 PRINT PAPER 5;CHR$ (32+u)+" ";: FOR g=1 TO 8: LET B=0: FOR q=1 TO 8: LET B=2*B+z(g,q): NEXT q: POKE 8*u+g+59903,B: NEXT g
5008 NEXT u
5009 POKE 23607,233: PRINT ': FOR v=32 TO 127: PRINT CHR$ v+" ";: NEXT v: POKE 23607,60: STOPNote: Type-in program listings on this website use ZMAKEBAS notation for graphics characters.
