A drawing program for the TS2068. A machine code routine moves the drawing cursor and shows its coordinates; when it returns, the program reads the cursor position and puts the first of three command menus on the bottom line. Menu 1 holds quit, clear, save and load SCREEN$, colours, text and block move. Menu 2 draws circles, lines, boxes and fills, and mirrors the picture. Menu 3 adds arcs, a coloured frame round the screen, a printer copy, “superfile” saving, a pixel magnifier, and paper and ink changes. Commands are upper-case letters, and several of them are steered with a joystick through STICK.

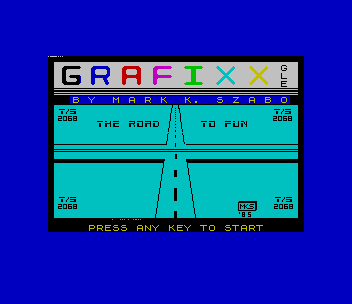

The REM lines read “GRAFIXX by Mark Szabo Version 1.9”. The title picture, shown with a chord from the AY sound chip, reads “BY MARK K. SZABO” and “THE ROAD TO FUN”, with T/S 2068 badges in the corners and “MKS 85” on the road.
Program Analysis
Structure
- Line 60: loads
grafixx C, 18000 bytes of machine code and data at 45500. - Line 90: plays a rising sweep with
BEEP, shows the title picture withRANDOMIZE USR 58000and sets the AY registers withSOUND. Line 110 silences the chip again. - Lines 120–250: the cursor call (
LIST USR 60000), which leaves the X and Y coordinates in 55000 and 55001, and menu 1. - Lines 260–350: menu 2. Lines 360–470: menu 3.
- Lines 480–600: places a line of text with the joystick, toggling it with
OVER 1until fire is pressed. - Lines 610–1010: the bottom-line beep, the 20-pixel selection frame, block capture into
Q$, block stamping and the magnifier. - Lines 1030–1200: the box command, which stretches a box with the joystick and can fill it line by line.
- Line 1210: saves the program and its code.
Commands
- Menu 1:
Qquit (after typing YES the program runsNEW),Cclear,SandLsave and load the screen as a SCREEN$ file,Kborder, ink and paper colours,Pprint text,Mmove a block. - Menu 2:
Ccircle of a given radius at the cursor,Lline to a second cursor point marked with D (LIST USR 62000, which returns it in 55002–55003),Bbox,Mmirror (LIST USR 45500),Ffill from a cursor point (USR 58100). - Menu 3:
Aarc (DRAW x,y,anglefrom the last point),Fframe of chosen thickness and colour,Cprinter copy,Ssuperfile,Mmagnify,Ppaper,Iink. - Keys 1, 2 and 3 switch between the menus.
Move, Magnify and Superfile
Move and magnify both start with a 20-pixel frame that is steered with the joystick and drawn and undrawn with OVER 1. Pressing fire copies the 19×19 pixels inside it into Q$ by testing each one with POINT. Move then stamps the block wherever the frame is next fixed. Magnify calls USR 57000, clears the screen and shows the block as a 19×19 grid of character cells on a cyan panel. You steer an X cursor and press fire to toggle cells, and any key calls USR 58000 to bring the picture back and plots the edited block in place. The superfile command calls USR 57000 and then saves 6910 bytes from 50000 under your file name, followed by the 78-byte routine at 58000 as SUPERFILE. USR 57000 appears to copy the screen into a buffer at 50000, and USR 58000 appears to copy it back. The same routine draws the title picture.
Notable Techniques
LIST USR 60000,LIST USR 62000andLIST USR 45500call machine code from a statement that discards the result. The routines pass coordinates back throughPEEK 55000–55003.- Fill is called inside an expression,
PLOT PEEK 55000,PEEK 55001-USR 58100. - The colour command repaints the attributes by printing blank lines with
OVER 1, so the colours change without erasing the drawing. - The joystick is read with the TS2068
STICKfunction:STICK (1,1)for direction andSTICK (2,1)for the fire button.
Potential Issues
- Line 1030 tests
IF q<0 AND Q>7. Sinclair BASIC treatsqandQas the same variable, and no value can be both, so the box ink is never checked. A colour outside 0–9 then stops the program with an error. - The box routine sets its fill step
a1only when the height is below 1 or above 1 (lines 1150–1160). A filled box exactly one pixel high appears to fail with “Variable not found” or use a stale step. A box of height 0 jumps to line 120 from inside the subroutine without returning.

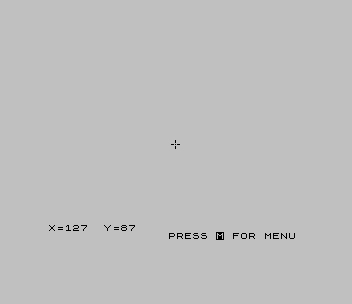

This program came from an Oliger (JLO SAFE) disk in the SNUG library set and was converted for tape. The Oliger slashes were removed from the LOAD and SAVE commands in lines 60, 210, 220, 450 and 1210, and the JLO printer command COPY / in line 380 became a plain COPY. It was tested in ZEsarUX on a stock TS2068 through the title screen and the drawing cursor screen.
Image Gallery
Source Code
10 REM
20 REM GRAFIXX
30 REM by Mark Szabo
40 REM Version 1.9
50 REM
60 PAPER 7: INK 0: BORDER 7: CLS : PRINT AT 10,2;"PLEASE WAIT - LOADING CODE ": INK 7: LOAD /"grafixx C"CODE
70 INK 0
80 CLS : PRINT AT 10,10;"STOP THE TAPE": FOR I=1 TO 5: BEEP .3,19: BEEP .3,-8: NEXT I
90 INK 7: CLS : FOR I=-20 TO 40: BEEP .01,I: BEEP .01,I+10: NEXT I: RANDOMIZE USR 58000: BORDER 1: PRINT #1;AT 1,31; PAPER 1;" ": SOUND 0,1;1,161;2,1;3,162;4,1;5,163;6,31;7,56;8,16;9,11;10,11;12,20;13,14
100 PRINT AT 21,5; PAPER 0; INK 6;"PRESS ANY KEY TO START": PAUSE 0
110 PAPER 7: BORDER 7: INK 0: CLS : SOUND 8,0;9,0;10,0
120 PRINT #1;AT 0,15;"PRESS M FOR MENU": LIST USR 60000: OVER 0
130 LET X=PEEK 55000: LET Y=PEEK 55001: BEEP .04,0: BEEP .04,10: BEEP .04,20
140 PRINT #1;"Q=QUIT C=CLS S=SVE L=LD K=COLOR P=PRINT M=MOVE 2=MENU 2 3=MENU 3"
150 PAUSE 0: LET I$=INKEY$
160 IF I$="Q" THEN INPUT "ARE YOU SURE?(YES/NO):";A$: IF A$="YES" THEN NEW
170 IF I$="M" THEN GO SUB 610: GO SUB 690: GO SUB 920
180 IF I$="P" THEN INPUT "MESSAGE?:";A$: GO SUB 480: OVER 0: PRINT AT X1,Y1;A$
190 IF I$="3" THEN GO TO 360
200 IF I$="C" THEN INPUT "CONFIRM CLEAR:(Y/N):";A$: IF A$="Y" THEN CLS
210 IF I$="S" THEN INPUT "FILENAME?:";A$: PRINT AT 21,0; OVER 0,,: SAVE /A$SCREEN$
220 IF I$="L" THEN FLASH 0: PRINT AT 0,0;" ": INPUT "NAME ?";A$: LOAD /A$SCREEN$
230 IF I$="K" THEN INPUT " BORDER COLOR?:";B: BORDER B: INPUT " INK COLOR?:";I: INPUT " PAPER COLOR?:";P: PAPER P: FOR Q=0 TO 21: OVER 1: PRINT AT Q,0,,: NEXT Q: INK I
240 IF I$="2" THEN GO TO 260
250 GO SUB 610: GO TO 120
260 GO SUB 610: PRINT #1;"C=CIRCLE L=LINE B=BOX M=MIRROR F=FILL 1=MENU 1 3=MENU 3"
270 PAUSE 0: LET I$=INKEY$
280 IF I$="C" THEN INPUT " INPUT RADIUS:";R: CIRCLE X,Y,R
290 IF I$="L" THEN GO SUB 610: PRINT #1;"POSITION CURSOR AND PRESS 'D'. ": LIST USR 62000: PLOT X,Y: DRAW PEEK 55002-X,PEEK 55003-Y: GO SUB 610
300 IF I$="F" THEN GO SUB 610: PRINT #1;"POSITION CURSOR AND PRESS 'D'. ": LIST USR 62000: POKE 55000,PEEK 55002: POKE 55001,PEEK 55003: PLOT PEEK 55000,PEEK 55001-USR 58100: GO SUB 610
310 IF I$="1" THEN GO TO 130
320 IF I$="3" THEN GO TO 360
330 IF i$="M" THEN GO SUB 610: LIST USR 45500
340 IF i$="B" THEN GO SUB 1030
350 GO SUB 610: GO TO 120
360 GO SUB 610: PRINT #1;"A=ARC F=FRAME C=CPY S=SUPERFILE M=MAGNIFY P=PAPER I=INK 1&2=MENU"
370 PAUSE 0: LET I$=INKEY$
380 IF I$="C" THEN PRINT AT 21,0; OVER 0,,: COPY /
390 IF I$="1" THEN GO TO 130
400 IF I$="2" THEN GO TO 260
410 IF I$="A" THEN INPUT " DRAW X?:";X1: INPUT " DRAW Y?:";Y1: INPUT "ARC?:";A: DRAW X1,Y1,A: GO TO 120
420 IF I$="F" THEN OVER 0: INPUT " INPUT THICKNESS(1-10)";A: INPUT "COLOR:";C: FOR I=0 TO A: INK C: PLOT 0,I+8: DRAW 255,0: PLOT I,8: DRAW 0,167: PLOT 255-I,8: DRAW 0,167: PLOT 255,175-I: DRAW -255,0: NEXT I
430 IF I$="I" THEN INPUT "COLOR?:";C: INK C
440 IF I$="P" THEN INPUT "COLOR?:";p: PAPER (p AND p>0 AND p<9)
450 IF I$="S" THEN INPUT "FILENAME? ";A$: PLOT 127,57087-USR 57000: SAVE /A$CODE 50000,6910: SAVE /"SUPERFILE"CODE 58000,78
460 IF I$="M" THEN GO SUB 630
470 GO SUB 610: GO TO 120
480 LET X1=10: LET Y1=x1: LET Q=|(1,1)
490 LET Q=|(1,1)
500 OVER 1: PRINT AT X1,Y1;A$: PAUSE 2: PRINT AT X1,Y1;A$
510 IF Q=1 THEN LET X1=X1-1
520 IF Q=2 THEN LET X1=X1+1
530 IF Q=4 THEN LET Y1=Y1-1
540 IF Q=8 THEN LET Y1=Y1+1
550 IF X1>20 THEN LET X1=20
560 IF X1<0 THEN LET X1=0
570 LET A=32-LEN A$: IF Y1>A THEN LET Y1=A
580 IF Y1<0 THEN LET Y1=0
590 IF |(2,1)=1 THEN PRINT AT X1,Y1;A$: RETURN
600 GO TO 490
610 PRINT #1,,,,: BEEP .04,0: BEEP .04,10: BEEP .04,20: RETURN
620 PLOT X,Y: DRAW 20,0: DRAW 0,20: DRAW -20,0: DRAW 0,-19: RETURN
630 OVER 1: GO SUB 690: GO SUB 790: RETURN
640 IF |(1,1)=1 THEN LET Y=Y+(1 AND Y<150)
650 IF |(1,1)=2 THEN LET Y=Y-(1 AND Y>7)
660 IF |(1,1)=4 THEN LET X=X-(1 AND X>4)
670 IF |(1,1)=8 THEN LET X=X+(1 AND X<230)
680 RETURN
690 OVER 1: INVERSE 0: GO SUB 620
700 GO SUB 620
710 GO SUB 640
720 IF |(2,1)=0 THEN GO TO 690
730 DIM Q$(20,20): FOR I=19 TO 1 STEP -1
740 FOR J=1 TO 19
750 IF POINT (J+X,Y+I)=1 THEN LET Q$(J,I)="::": GO TO 770
760 LET Q$(J,I)=" "
770 NEXT J: NEXT I
780 RETURN
790 PRINT AT 0,0;USR 57000: CLS
800 PRINT AT 0,0;" ": FOR I=1 TO 19: PRINT PAPER 5;" ": NEXT I: PRINT " ": FOR I=19 TO 1 STEP -1
810 FOR J=1 TO 19
820 PRINT AT 20-I,J;Q$(J,I): NEXT J: NEXT I
830 OVER 0: LET X1=1: LET Y1=1
840 PRINT AT X1,Y1; OVER 1;"X": PAUSE 11: PRINT AT X1,Y1; OVER 1;"X"
850 LET X1=X1+(1 AND X1<19 AND |(1,1)=2)+(-1 AND X1>1 AND |(1,1)=1)
860 LET Y1=Y1+(1 AND Y1<19 AND |(1,1)=8)+(-1 AND Y1>1 AND |(1,1)=4)
870 IF INKEY$<>"" THEN GO TO 910
880 IF |(2,1)=0 THEN GO TO 840
890 IF Q$(Y1,20-X1)=CHR$ CODE "::" THEN LET Q$(Y1,20-X1)=" ": PRINT AT X1,Y1;" ": GO TO 840
900 IF Q$(Y1,20-X1)=CHR$ CODE " " THEN LET Q$(Y1,20-X1)="::": PRINT AT X1,Y1;"::": GO TO 840
910 RANDOMIZE USR 58000: GO SUB 970: RETURN
920 OVER 1: GO SUB 930: RETURN
930 OVER 1: GO SUB 620
940 OVER 1: GO SUB 620: OVER 0
950 GO SUB 640
960 IF |(2,1)=0 THEN GO TO 930
970 FOR I=19 TO 1 STEP -1
980 FOR J=1 TO 19
990 IF Q$(J,I)="::" THEN PLOT J+X,Y+I: GO TO 1010
1000 PLOT INVERSE 1;X+J,Y+I
1010 NEXT J: NEXT I: RETURN
1020 STOP
1030 INPUT " INK ? ";q: IF q<0 AND Q>7 THEN GO TO 1030
1040 INK q
1050 INPUT "FILLED OR UNFILLED(1 OR 2):";A: IF A<1 OR A>2 THEN GO TO 1050
1060 LET x1=0: LET y1=x1
1070 IF |(1,1)=1 THEN LET y1=y1+1
1080 IF |(1,1)=2 THEN LET y1=y1-1
1090 IF |(1,1)=4 THEN LET x1=x1-1
1100 IF |(1,1)=8 THEN LET x1=x1+1
1110 PLOT x,y: DRAW X1,0: DRAW 0,Y1: DRAW -X1,0: DRAW 0,-Y1
1120 IF |(2,1)=1 THEN GO TO 1150
1130 INVERSE 1: PLOT x,y: DRAW X1,0: DRAW 0,Y1: DRAW -X1,0: DRAW 0,-Y1
1140 INVERSE 0: GO TO 1070
1150 IF y1<1 THEN LET a1=-1
1160 IF y1>1 THEN LET a1=1
1170 IF y1=0 THEN GO TO 120
1180 IF A=2 THEN RETURN
1190 FOR i=0 TO y1 STEP a1: PLOT x,i+y: DRAW x1,0: NEXT i
1200 RETURN
1210 SAVE /"GRAFIXX" LINE 10: SAVE /"grafixx C"CODE 45500,18000Note: Type-in program listings on this website use ZMAKEBAS notation for graphics characters.
