Coordinate Geometry

Date: 198x
Type: Program
Platform(s): TS 2068

A homework helper for coordinate geometry. You enter the x and y coordinates of two points and a question number. The program draws both points on a pair of axes and joins them, then shows the working for three results on separate screens: the distance, with a drawn square-root sign over each step; the slope as rise over run, or “Slope is undefined” for a vertical line; and the midpoint. Each screen waits for a key, and z copies it to the printer.

No author is named.

Program Analysis

Structure

  • Lines 10–50: DEF FN definitions for distance, slope, two-decimal rounding and the midpoint coordinates.

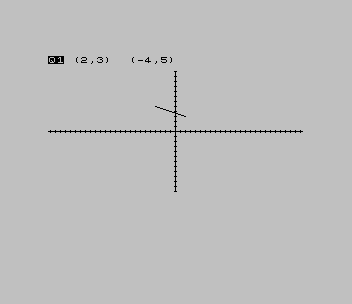

  • Lines 60–220: input, then the axes (origin at 127,100, five pixels per unit) and the line between the points. Pressing s at the graph lets you enter new points.

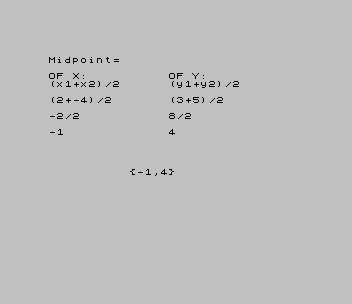

  • Lines 230–340: the distance screen. Lines 360–410: slope. Lines 430–490: midpoint. The program then starts again with RUN.
  • Lines 510–540: wait for a key and optionally COPY.

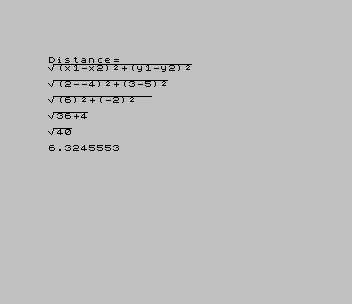

The square-root sign

UDGs a–d are defined from DATA line 230: a root sign, a small “2” for squaring, a bar and a delta. The bar over each line of working is printed character by character with OVER 1, its length worked out from the LEN STR$ of the numbers in that line.

Notable Techniques

  • The DATA in line 230 uses a variable u for repeated byte values: each u reads back the value just read.
  • FN f rounds to two decimals for display while the full values are kept for the arithmetic.

Potential Issues

  • FN d, FN m, FN p and FN q are defined but never used. The calculations are written out in full instead.
  • Points more than about 25 units from the origin are drawn off the axes, and a DRAW past the screen edge will stop the program.

This program came from an Oliger (JLO SAFE) disk, a copy of the SNUG library disk 13/14, and was converted to load from tape. No changes were needed. It was tested in ZEsarUX with the points (2,3) and (−4,5).

Related Content

Image Gallery

Source Code

   10 DEF FN d(x,y,a,b)=SQR (((ABS (x-a))^2)+((ABS (y-b))^2))
   20 DEF FN m(x,y,a,b)=(y-b)/(x-a)
   30 DEF FN F(g)=INT (g*100)/100
   40 DEF FN p(x,a)=(x+a)/2
   50 DEF FN q(y,b)=(y+b)/2
   60 CLS
   70 INPUT "Enter X coordinate of Point A   :";x
   80 INPUT "Enter Y coordinate of Point A   :";y
   90 INPUT "Enter X coordinate of Point B   :";a
  100 INPUT "Enter Y coordinate of Point B   :";b
  110 INPUT "Enter Question# "; LINE a$
  120 PRINT AT 0,0''AT 0,0; INVERSE 1;a$;: PRINT " (";x;",";y;")  (";a;",";b;")"
  130 PLOT 127,40: DRAW 0,120: PLOT 0,100: DRAW 254,0
  140 LET xaxis=127: LET yaxis=100
  150 GO SUB 200
  160 PLOT xaxis+5*x,yaxis+5*y
  170 DRAW -(xaxis+5*x)+(xaxis+5*a),-(yaxis+5*y)+(yaxis+5*b)
  180 GO SUB 510: IF INKEY$="s" THEN GO TO 70
  190 GO TO 240
  200 FOR z=-60 TO 60 STEP 5: PLOT 126,z+yaxis: DRAW 2,0: NEXT z
  210 FOR z=-125 TO 127 STEP 5: PLOT z+xaxis,99: DRAW 0,2: NEXT z
  220 RETURN
  230 DATA 7,4,u,136,72,40,16,0,u,24,36,8,16,60,0,u,255,0,u,u,u,u,u,u,u,8,20,u,34,u,127,0
  240 RESTORE 230: FOR z=0 TO 31: READ u: POKE USR "a"+z,u: NEXT z
  250 CLS : PRINT "Distance="'"accccccccccccccccc";AT 1,1; OVER 1;"(x1-x2)b+(y1-y2)b"
  260 PRINT '"a(";FN f(x);"-";FN f(a);")b+(";FN f(y);"-";FN f(b);")b"
  270 FOR z=1 TO (9+LEN (STR$ FN f(x))+LEN (STR$ (FN f(a)))+LEN (STR$ (FN f(y)))+LEN (STR$ (FN f(b)))): PRINT AT 3,z; OVER 1;"c": NEXT z
  280 PRINT '"a(";FN f(x)-FN f(a);")b+(";FN f(y)-FN f(b);")b"
  290 FOR z=1 TO (9+LEN (STR$ (FN f(x)-FN f(a)))+LEN (STR$ (FN f(y)-FN f(b)))): PRINT AT 5,z; OVER 1;"c": NEXT z
  300 LET x1=(ABS (x-a))^2: LET y1=(ABS (y-b))^2
  310 PRINT '"a";FN f(x1);"+";FN f(y1)
  320 FOR z=1 TO (1+LEN (STR$ (FN f(x1)))+LEN (STR$ (FN f(y1)))): PRINT AT 7,z; OVER 1;"c": NEXT z
  330 LET x1=x1+y1: PRINT '"a";FN f(x1): FOR z=1 TO LEN (STR$ (FN f(x1))): PRINT AT 9,z; OVER 1;"c": NEXT z
  340 PRINT 'SQR x1
  350 GO SUB 510: CLS
  360 PRINT "Slope (m)="''"dy/dx"
  370 PRINT '"(";FN f(y);"-";FN f(b);")/(";FN f(x);"-";FN f(a);")"
  380 LET x1=x-a: LET y1=y-b
  390 PRINT 'FN f(y1);"/";FN f(x1)
  400 IF x1=0 THEN PRINT '"Slope is undefined.": GO TO 420
  410 PRINT 'y1/x1
  420 GO SUB 510: CLS
  430 PRINT "Midpoint="''"OF X:";TAB 15;"OF Y:"'"(x1+x2)/2";TAB 15;"(y1+y2)/2"
  440 PRINT '"(";FN f(x);"+";FN f(a);")/2";TAB 15;"(";FN f(y);"+";FN f(b);")/2"
  450 LET x1=x+a: LET y1=y+b
  460 PRINT 'FN f(x1);"/2";TAB 15;FN f(y1);"/2"
  470 LET x1=x1/2: LET y1=y1/2
  480 PRINT 'x1;TAB 15;y1
  490 PRINT ''''TAB 10;"{";FN f(x1);",";FN f(y1);"}"
  500 GO SUB 510: RUN
  510 IF INKEY$<>"" THEN GO TO 510
  520 PAUSE 0
  530 IF INKEY$="z" THEN COPY
  540 RETURN
